4-12 DIY Ridge Rafter Bracket

4-12 DIY Ridge Rafter Bracket

Introducing our 4-12 DIY Heavy Duty Ridge Rafter Bracket for home improvement projects! This versatile bracket is designed to securely connect ridge beams to rafters, ensuring a strong and stable roof structure. Crafted with high-quality materials, this bracket is built to last and withstand heavy loads. Whether you are a DIY enthusiast or a professional contractor, this Universal Bracket is a must-have for your roofing projects. Upgrade your construction arsenal with this reliable and durable tool today!

Now further reinforced with double metal thickness throughout for super-duty performance and rigidity.

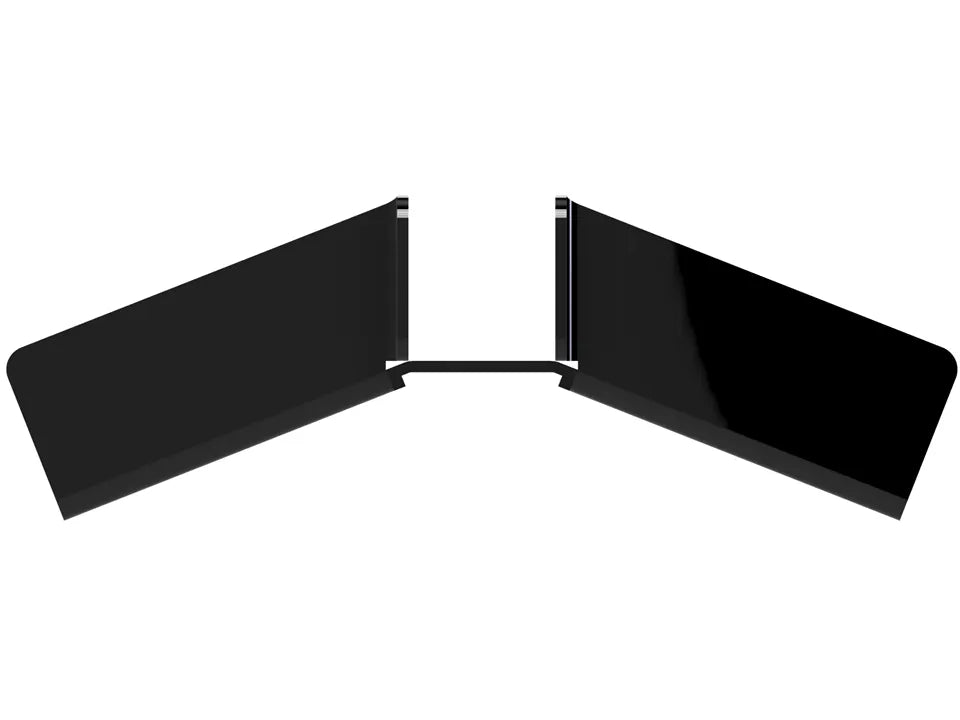

This bracket connects two Rafters to a 2X Ridge Beam at ~21-degree (4-12 pitch) angles.

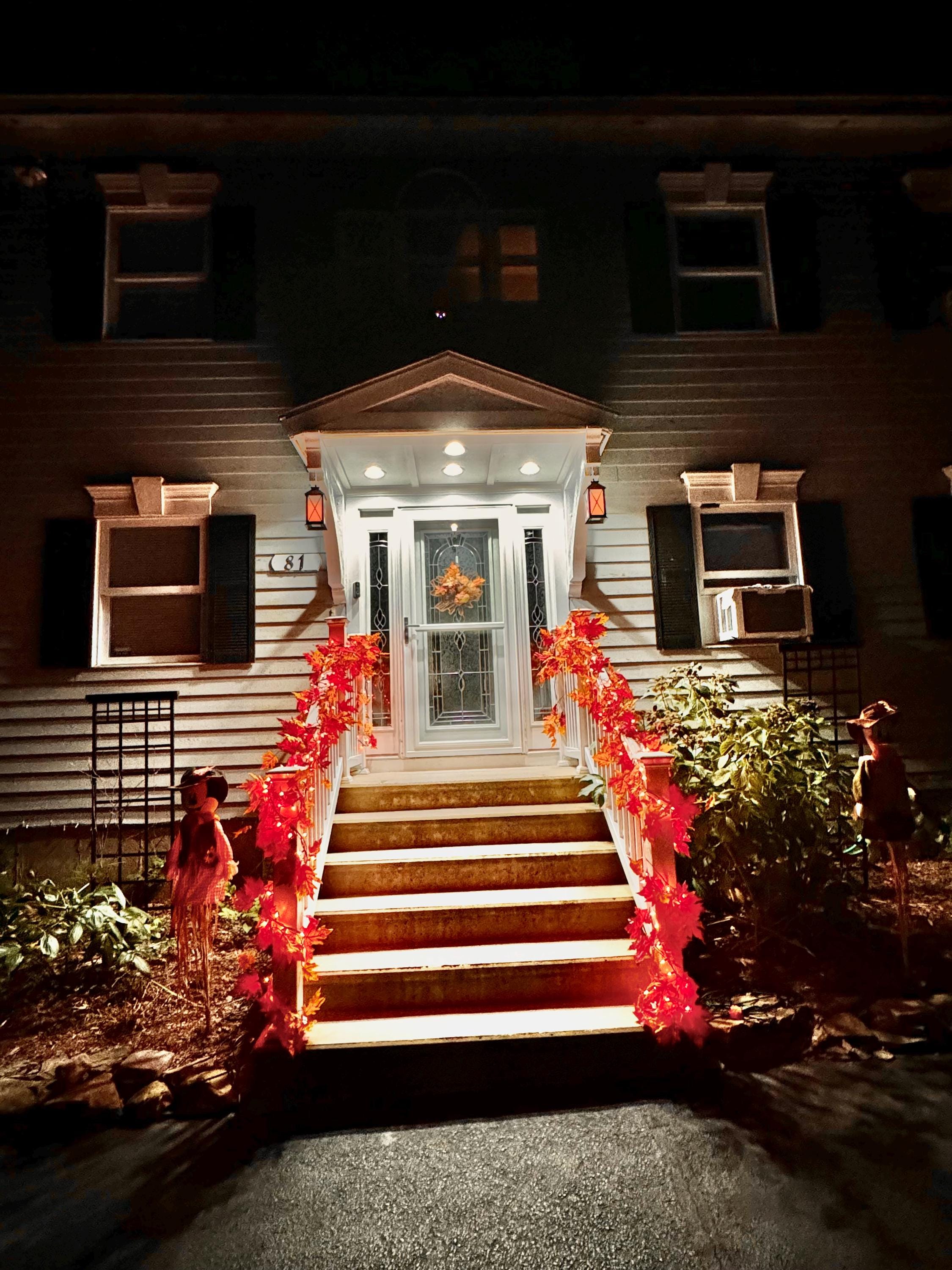

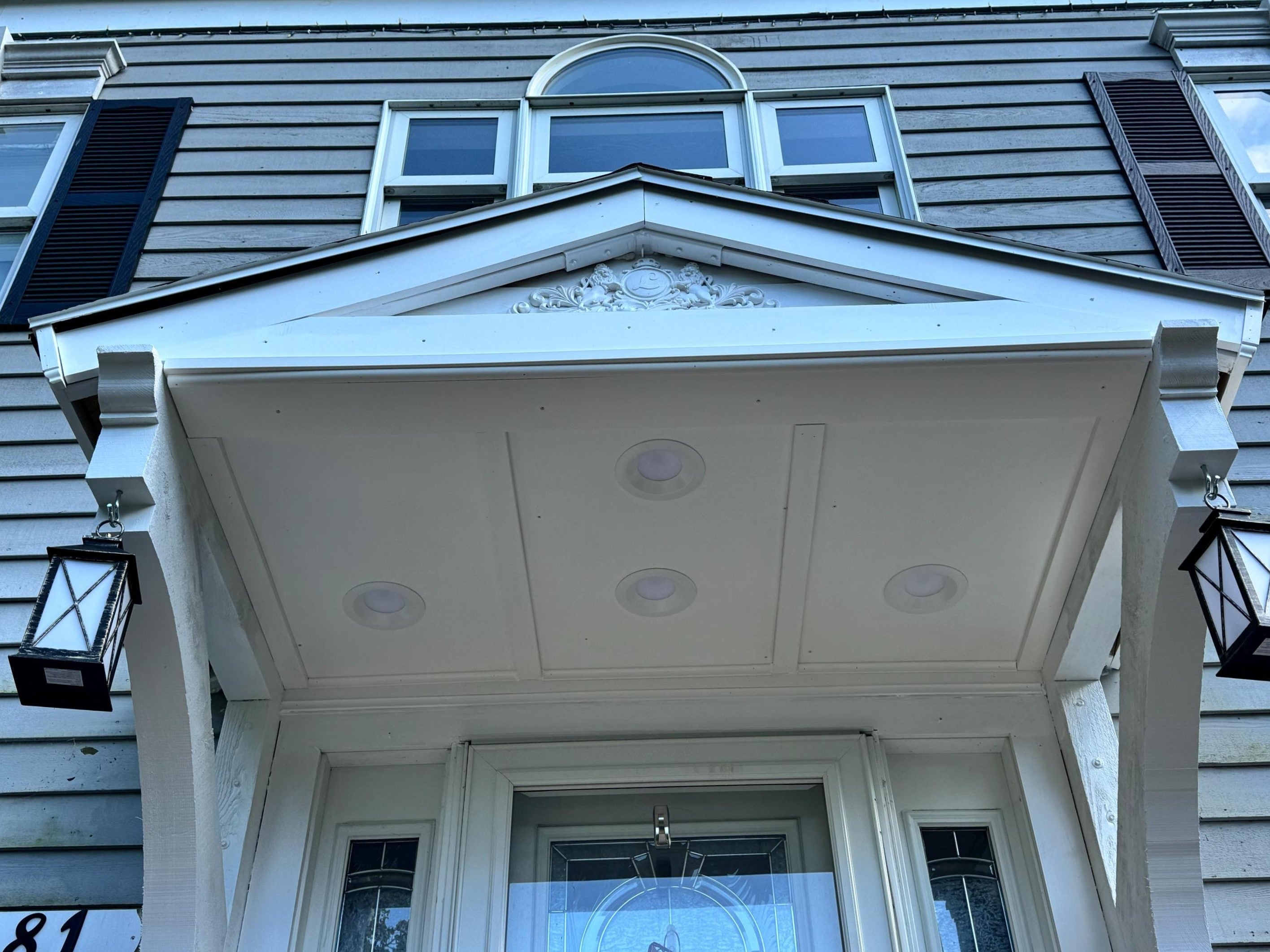

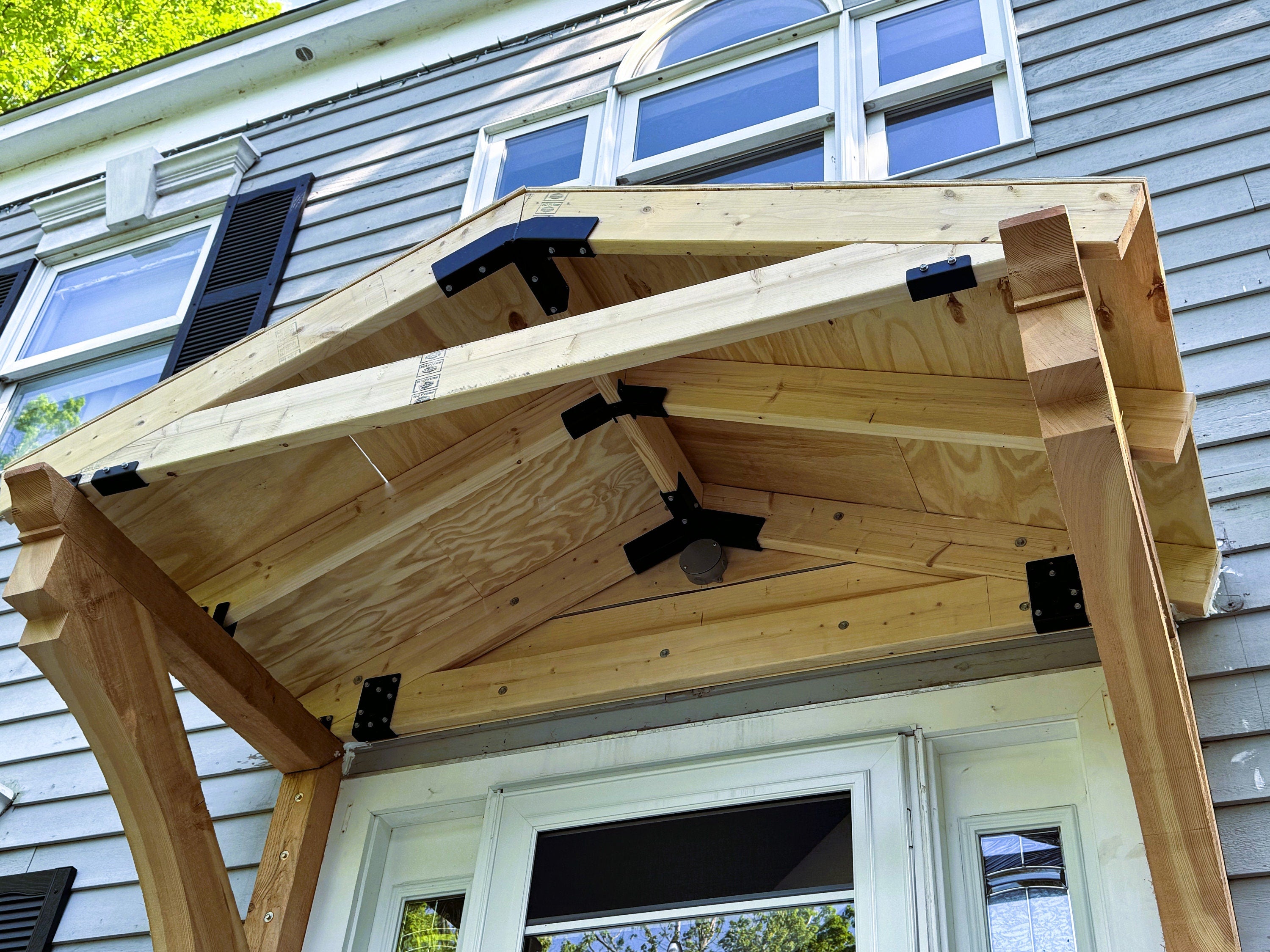

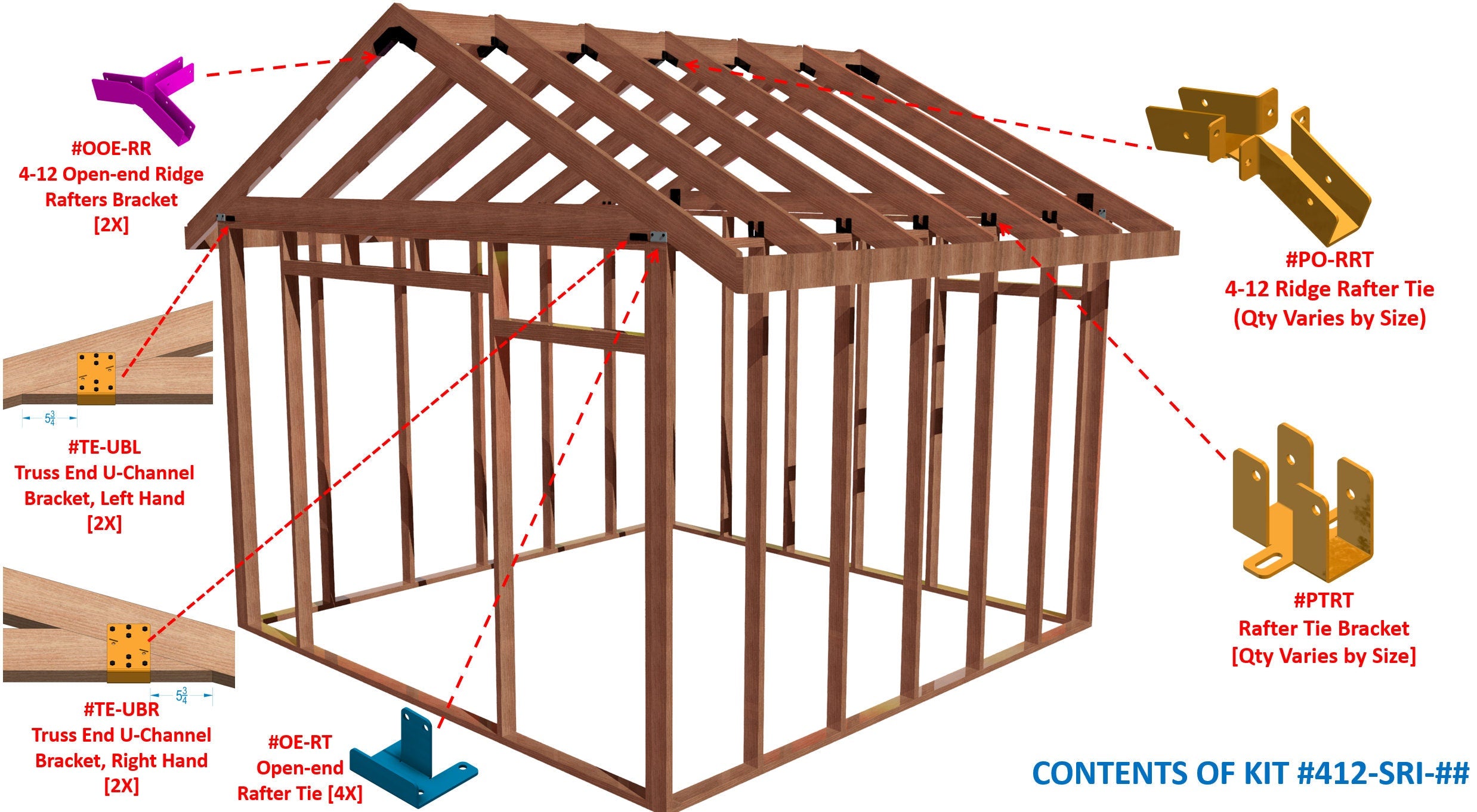

This bracket can be used to add rafters to any struture. A front porch pitched roof, a mini shed, a shed, a garage, a greenhouse, a paviliion, a barn or any structure that has a 2X Ridge Beam and needs 2X Rafters.

This Universal Heavy Duty 4-12 Pitch Ridge Rafter Tie Bracket is commonly employed to build Linear Octagon roofs,  Partial Octagon roofs, 4-12 Pitch Rectangle Pavilion Roofs, and any 4-12 Pitch Gable Roofs.

You may also use this to create a 3-12 pitch angled roof by adding simple wood shims between the bracket U-channel bottom and the rafter to fill the void.

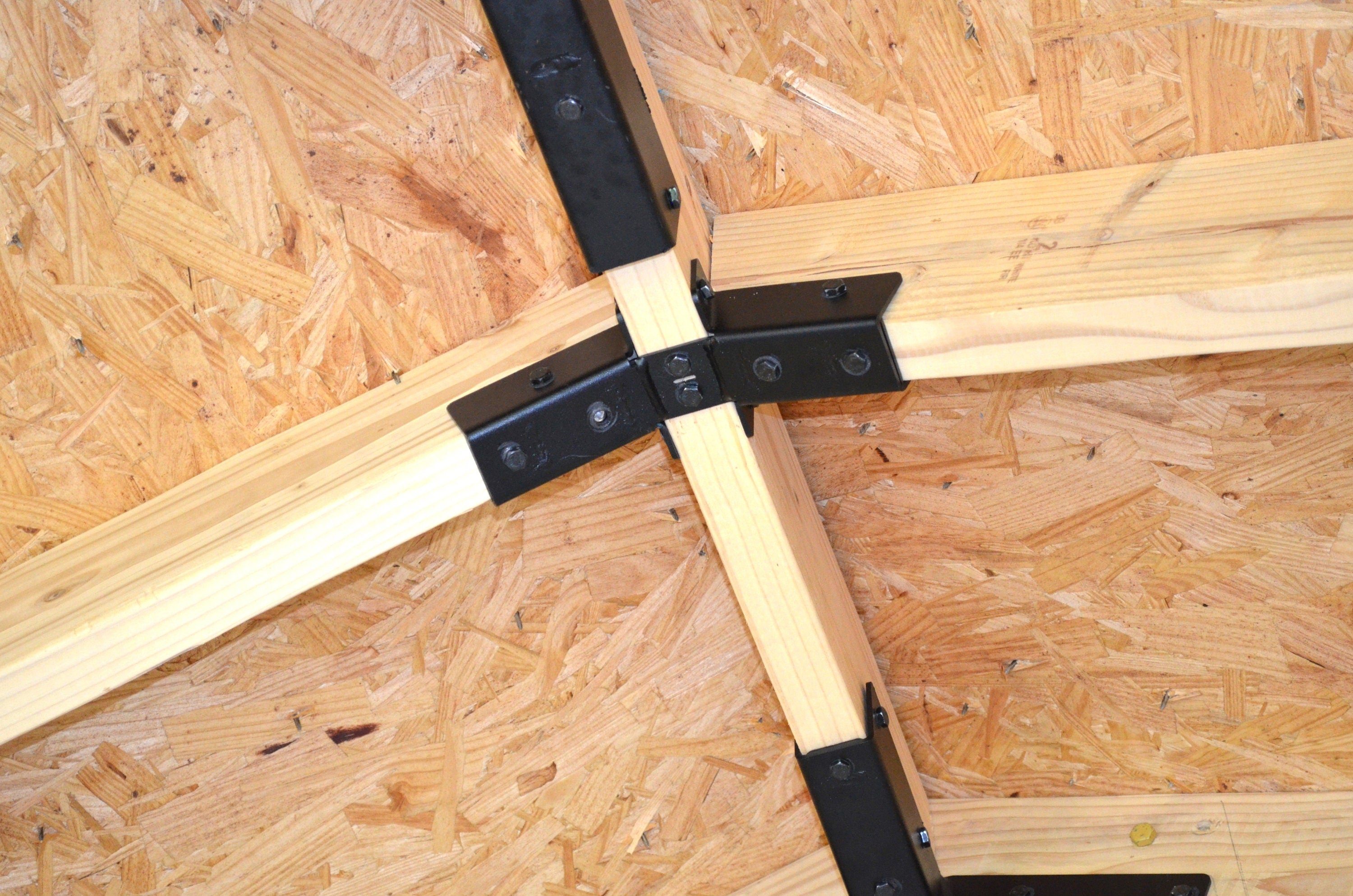

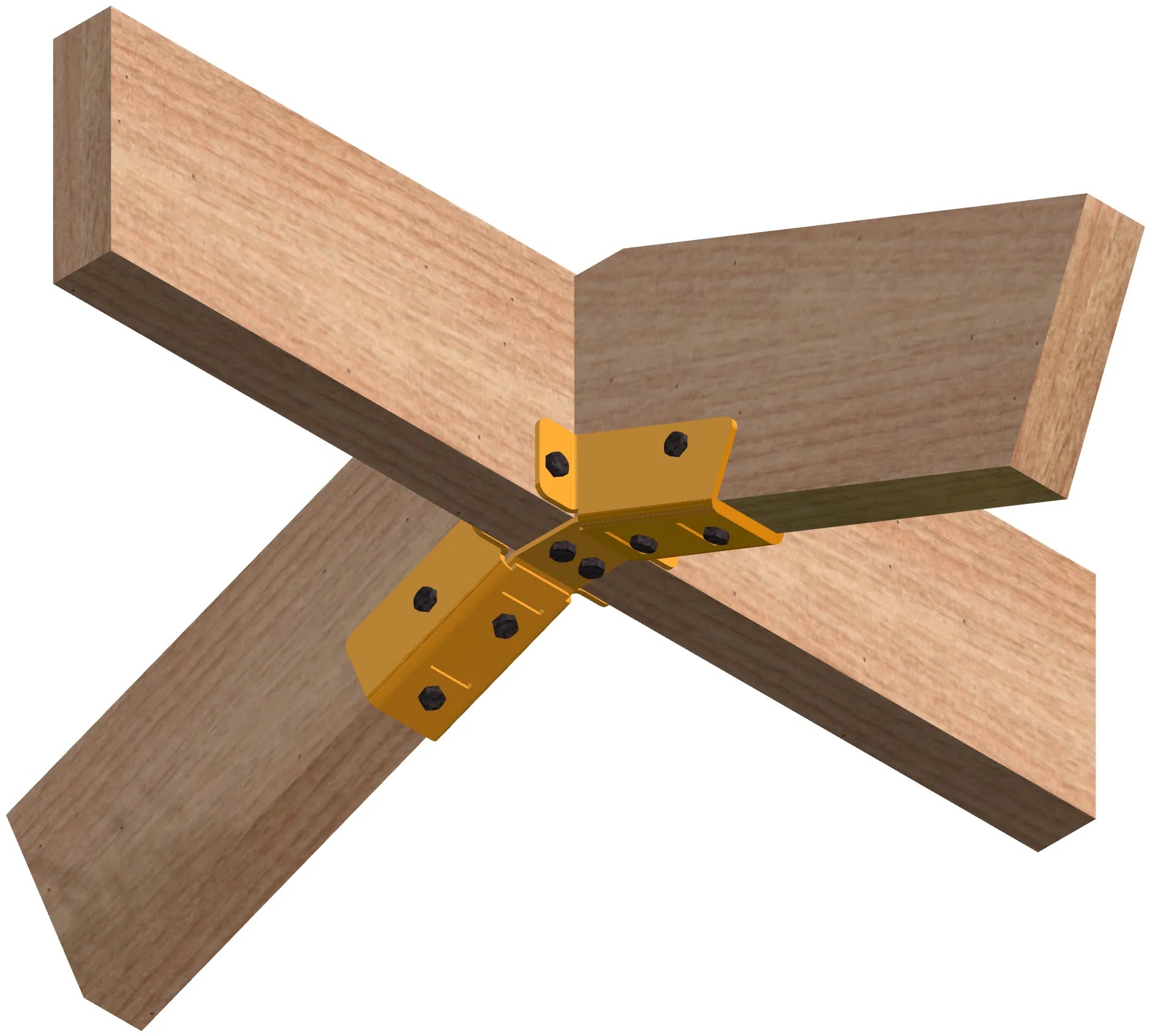

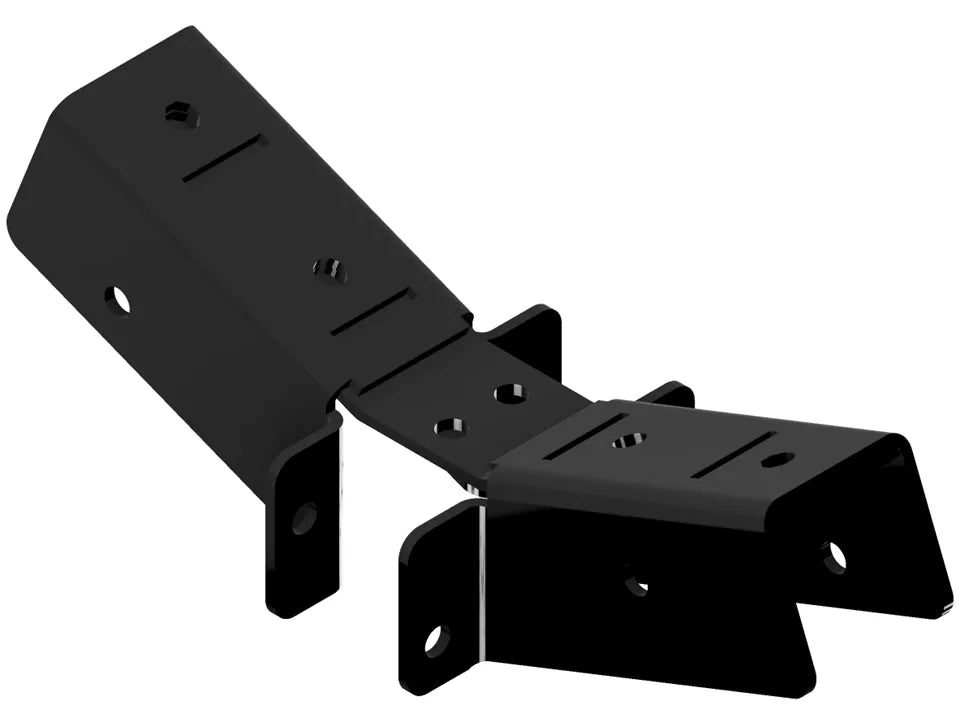

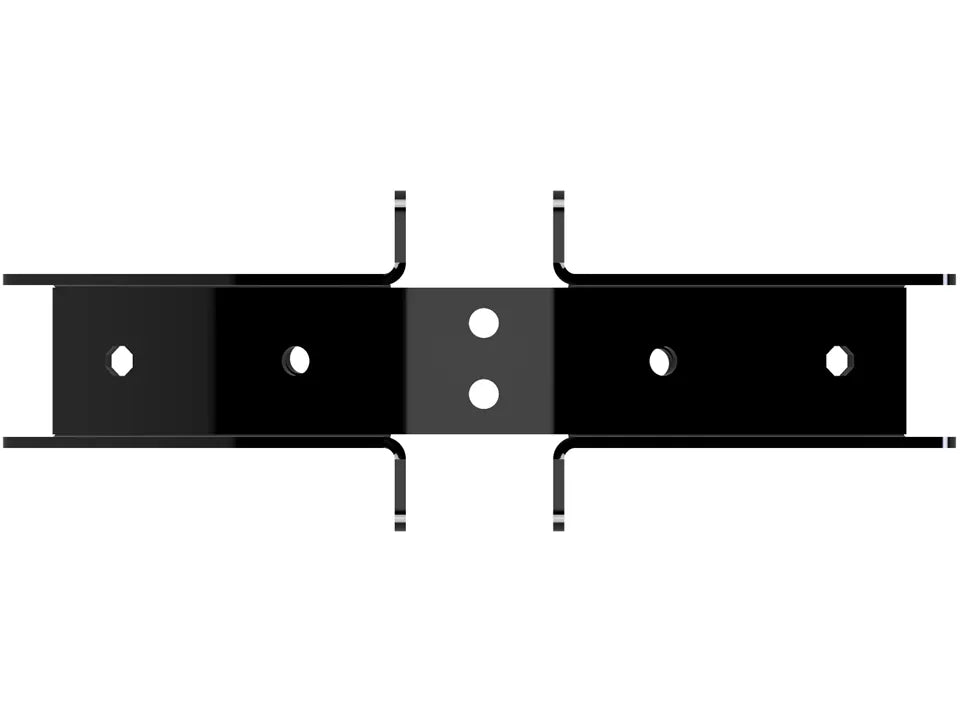

The Universal/ DIY Ridge Rafter Tie Bracket attaches to the bottom and side surfaces of the 2X main ridge beam and provide two rafter receiver U-channels at 21-degree ( 4-12 pitch) angles.

WARNING: You must attach this bracket to the ridge beam first, exactly as shown in the video steps, before you add the rafters. You must use 1/4" x 1-1/2' lag screws that are included with the brackets.

Do you have a single ridge beam and rafters structure which has a bowing or sagging ridge beam? Retrofit these brackets to straighten and level your existing structure or to add extra strength. Jack up the ridge beam until it is level, add this bracket as instructed to each ridge beam and rafter joint, add our #PTRT bracket under the rafter on top of the wall and secure rafter and #PTRT to the wall top; then remove the lift jack. These brackets will eliminate all flex at the rafter and ridge beam and wall joints and help to keep the ridge beam straight and level indefinitely.

This bracket simplifies addition of the ridge rafters at perfect angles to form strong a support structure.
This bracket eliminates having to build a truss structure.
This bracket helps to create a high open vaulted ceiling.

The Universal/ PO ridge rafter bracket attaches to the ridge beam's bottom and side surfaces using six (6) 1/4" x 1-1/4" lag screws.

The high strength design of this bracket holds the ridge rafters securely.

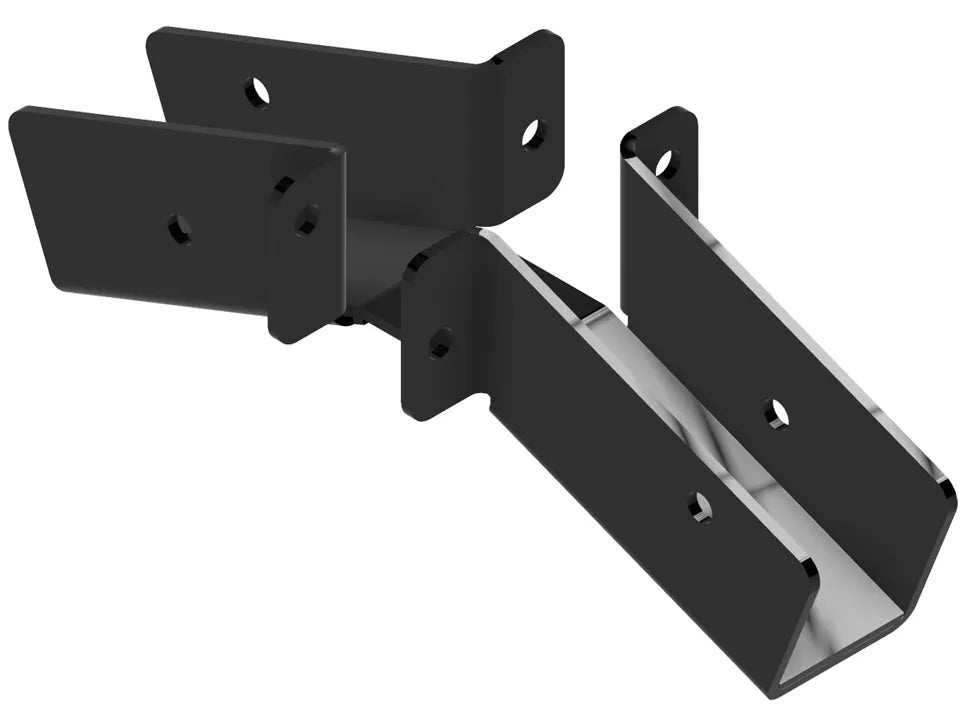

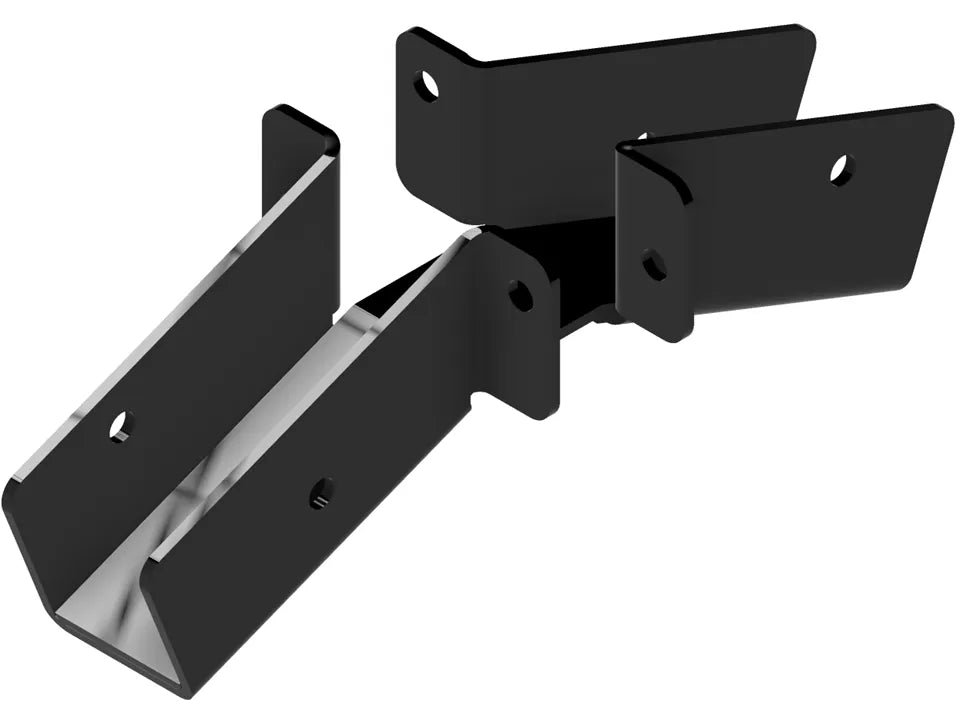

The Universal/ PO Ridge Rafter Tie Bracket's arms have upward facing open U-channels to easily receive 2x6 or 2x8 ridge rafters.

Each ridge rafter is secured to the U-channel with four (4) 1/4" x 1-1/4" lag screws.

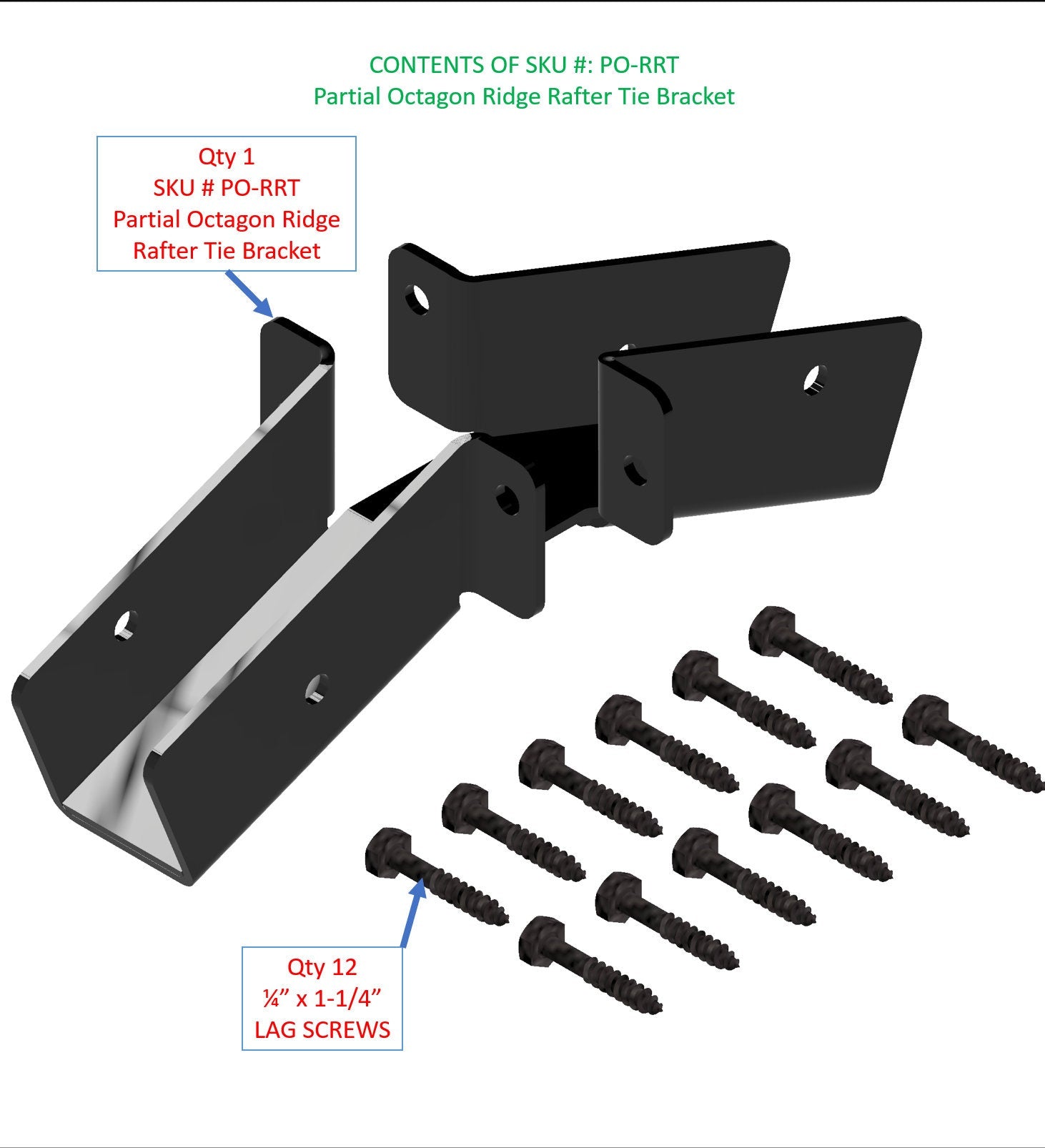

Included are forteen (14) 1/4" x 1-1/4"  lag screws to complete the job.

Don't forget that you will have to drill 1/8" pilot holes to drive 10D X 3" nails at an angle to secure the top of the ridge rafters to the ridge beam. These 10D nails are not included.

This bracket is constructed from 1/8" thick high strength steel.
This bracket is laser cut and formed and coated with durable black powder paint.
This bracket may be spray painted over with any desired exterior-grade paint color.

This Universal Heavy Duty 4-12 Pitch Ridge Rafter Tie Bracket is also listed at RioOutdoors.com and at Etsy.com/RioOutdoors.
