DIY 4x4 Rectangle Pavilion Brackets Kit

Transform your backyard into an outdoor oasis with our DIY 4x4 Rectangle Pavilion Brackets Kit. This easy-to-assemble kit includes all steel brackets to create a stunning pavilion space in your own backyard, a parking space, or a storage space. The 4x4 kit is perfect for universal use and provides ample space for hosting gatherings or simply relaxing in the shade. With simple instructions and durable materials, this pavilion kit is the ideal solution for adding both style and functionality to your outdoor space.

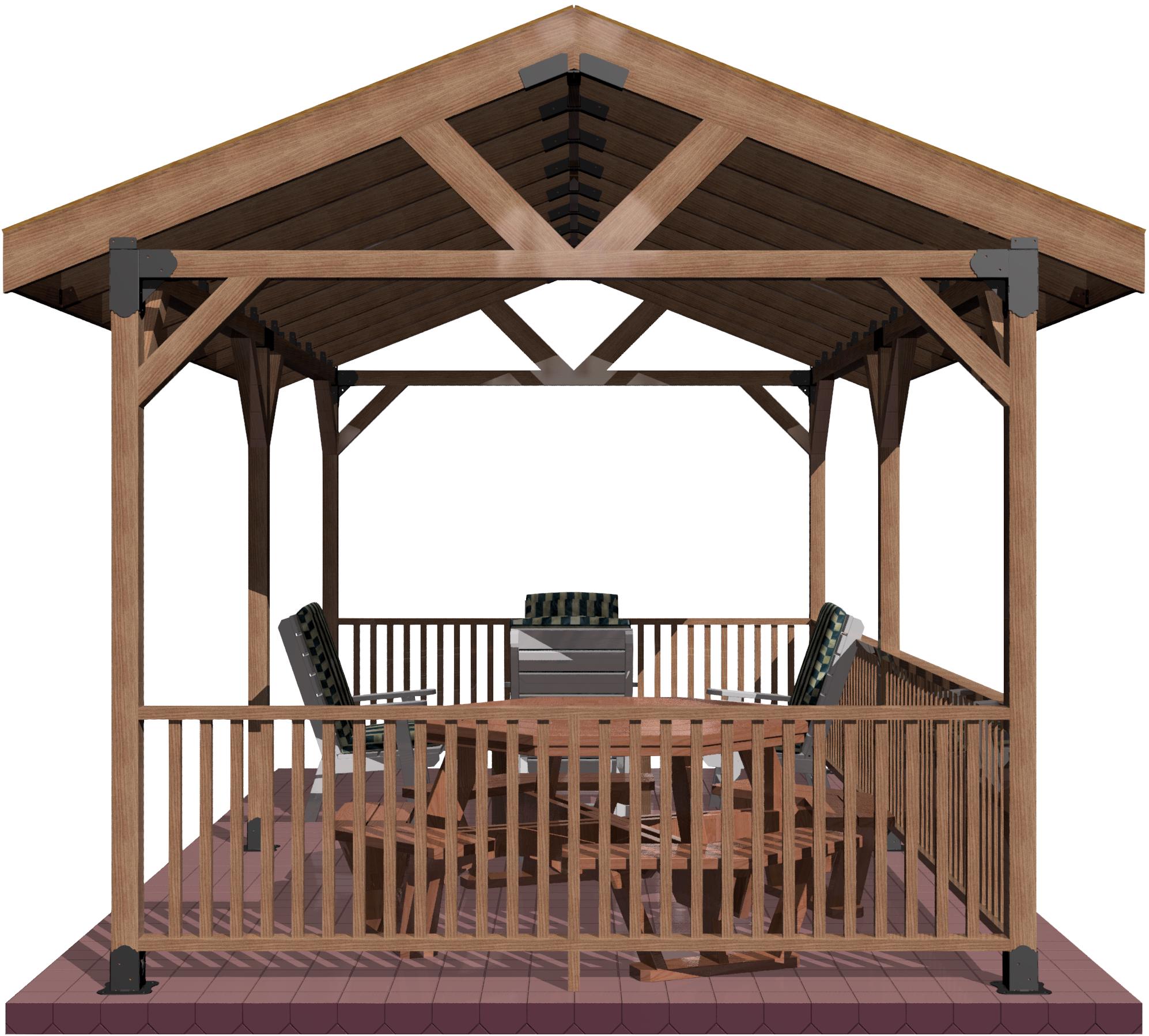

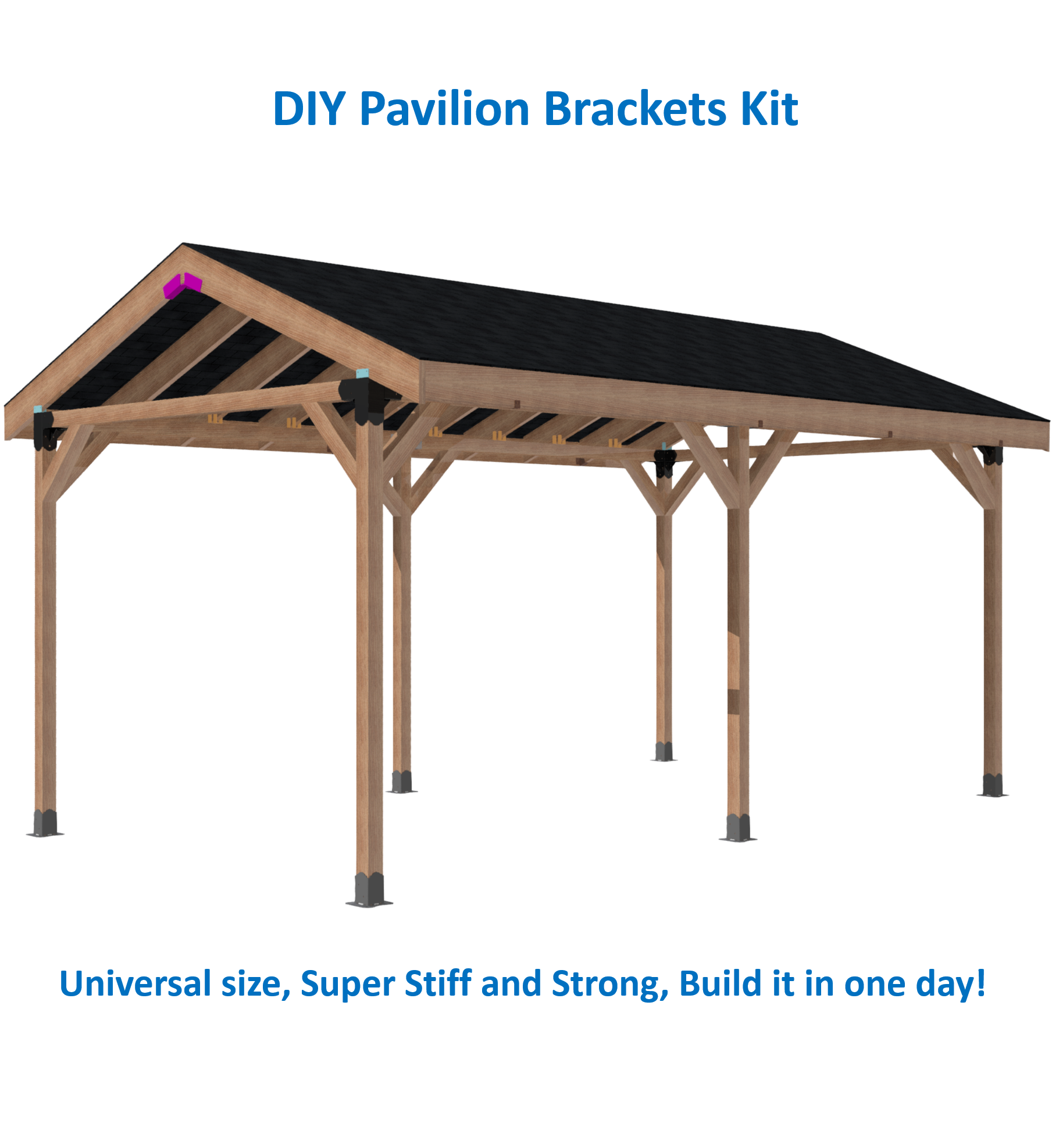

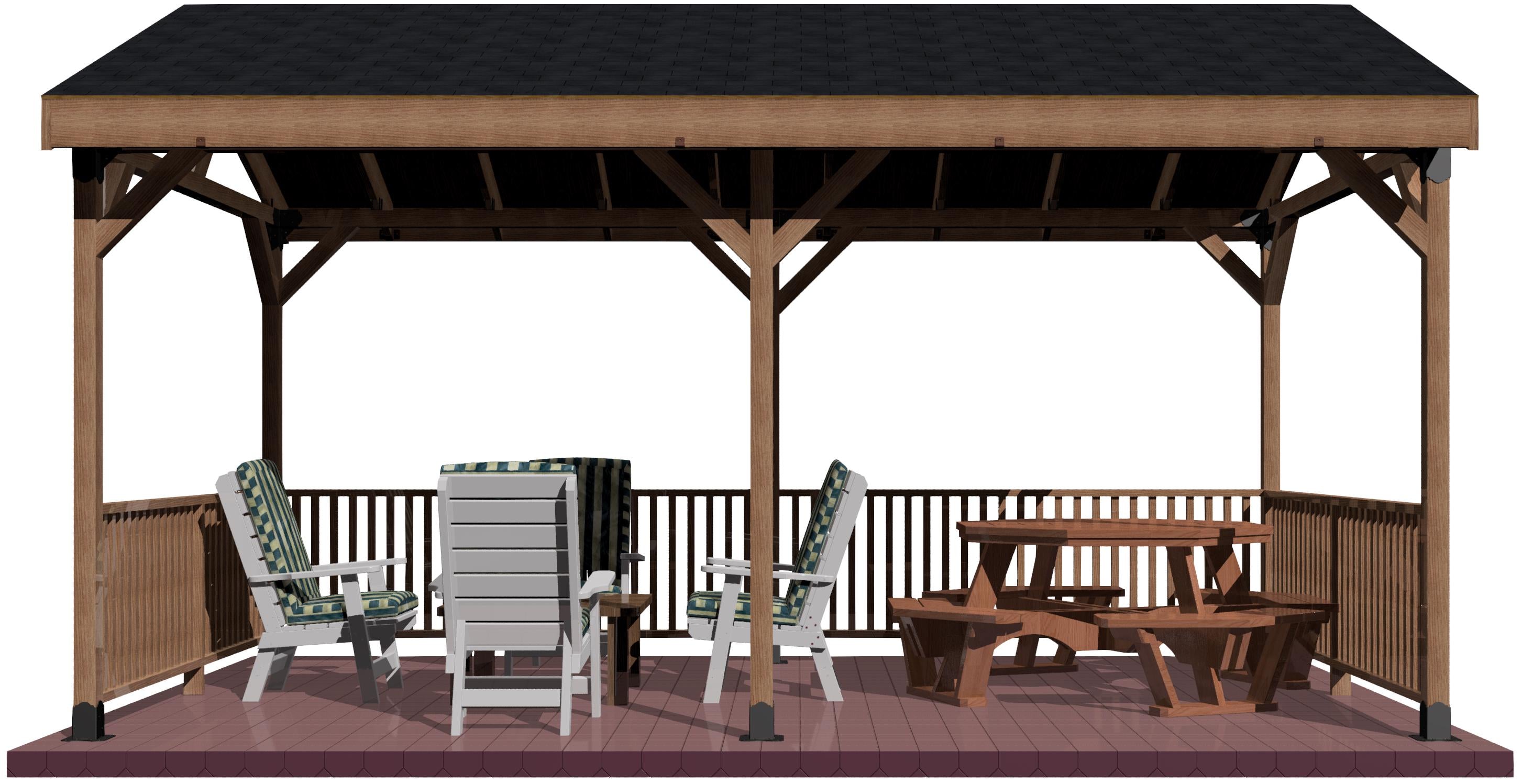

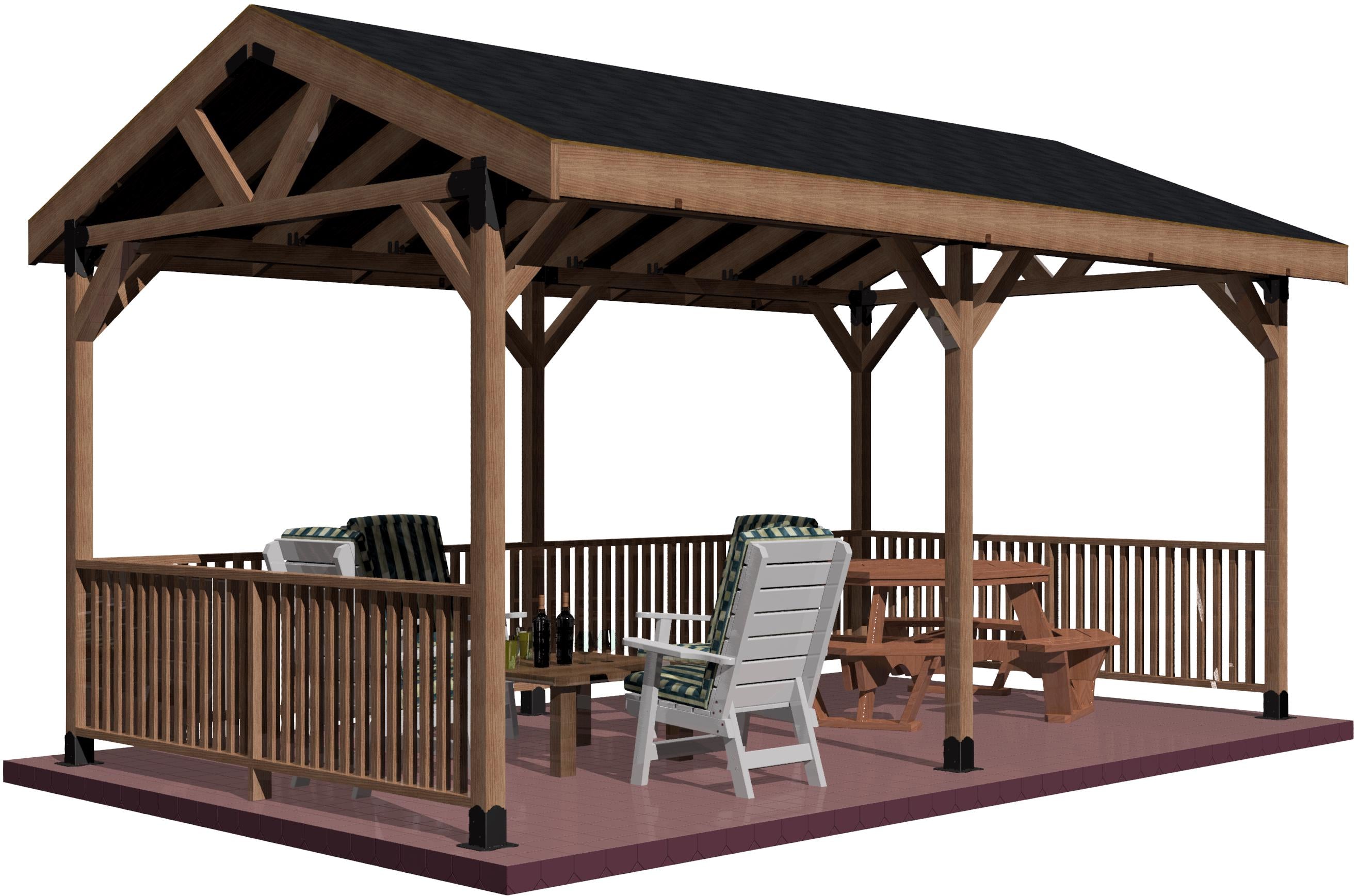

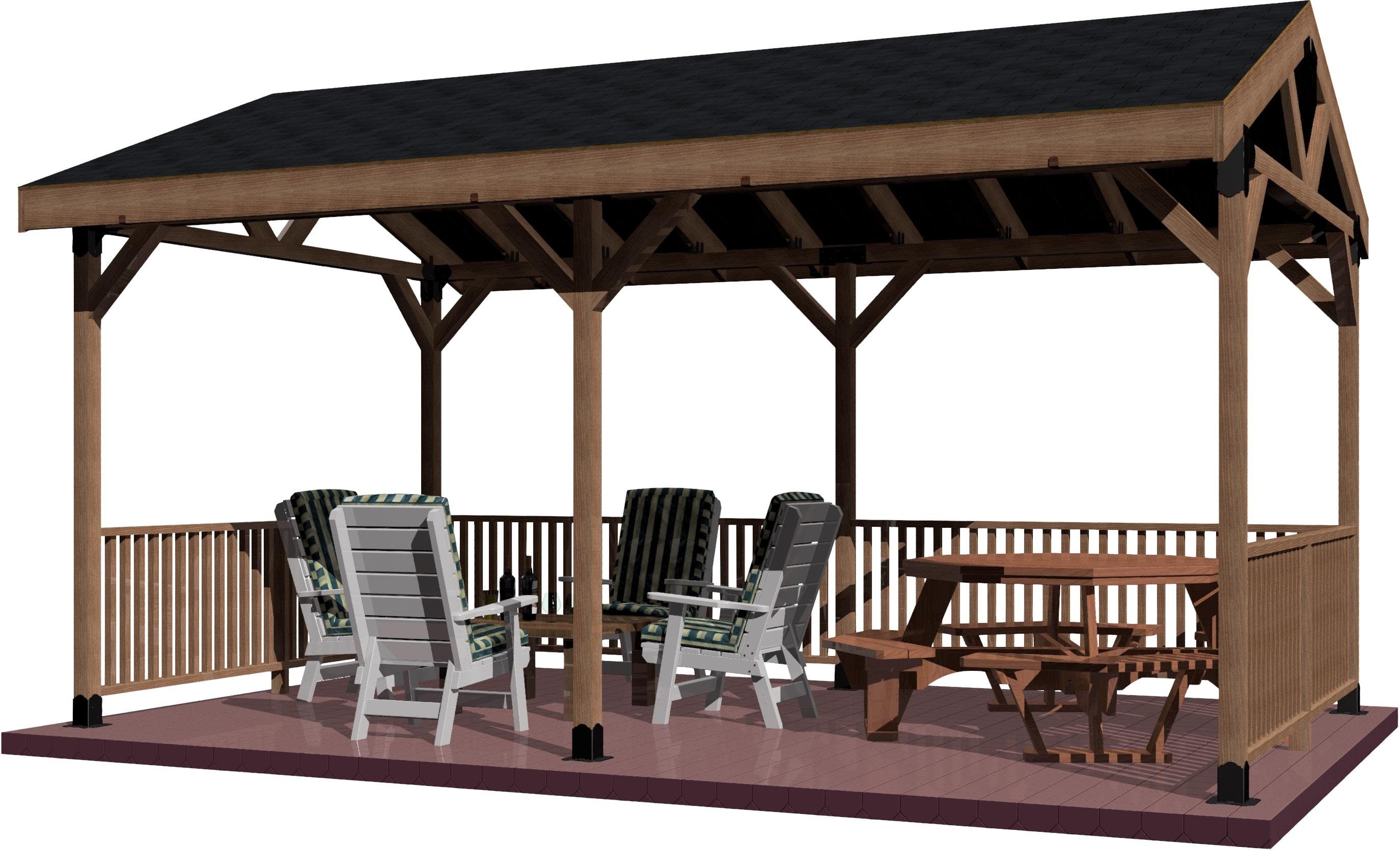

In the images is shown an 18 ft. long x 10 ft deep structure with 4x4 posts and 2x8 headers and rafters. This is an Easy Freestanding DIY Pavilion with Solid Roof Installation Brackets. Easily build it within 1 day with 2 people working together.

Easily add solid walls to convert this structure to a workshop, garage, storage shed etc.

DIY Challenge

Unleash your adventurous spirit with our DIY 4x4 Rectangle Pavilion Brackets Kit! Take on the challenge of building your own pavilion with our easy-to-use, sturdy brackets. Now you can enjoy the satisfaction of creating your own outdoor space while taking risks and embracing boldness. Are you ready to embark on this thrilling journey?

DIY Smart

This is a true 100% DIY-friendly, 6x6, Surface Mounted, Linear Octagon Gazebo Brackets Kit. Our Drop-in Smart DIY post top elbows make it super easy and safe to assemble the headers. Unlike closed tube elbows which require extreme effort and heavy lifting equipment, our Drop-in Smart DIY design requires minimal physical effort and eliminates physical injury risks.

DIY Prices

Unlike custom built pergola/gazebos which can cost anywhere from $12,000 to $30,000, build confidently with all decorative addons for less than $4,500 in any size that you desire.

High Quality

Unlike cheap low quality wood pergola/gazebos sold as DIY kits by Sams Club and Costco which decay and deteriorate within 3 seasons, build this using quality lumber available locally at your lumberyard and make it a lifetime structure that is rain proof, snow proof (any load), and wind proof beyond 92 mph.

Size:
Length: 8 ft. to 32 ft. (price varies by length. Rafters required every 24").
Width: 6 ft. to 16 ft. (limited by available 4x4 lengths in market).
Roof Pitch is fixed at 4-12.

The length of the pavilion (left to right) can range from 8 ft. to 32 ft. with the brackets included in this kit. The width can range from 8 ft. to 16 ft. with the brackets included in this kit.

For longer or wider structures, additional brackets will be needed to extend the headers and ridge beam. Contact me directly for additional brackets and prices through Shopify messenger or directly at rthapa@RioOutdoors.com.

We will provide raw materials buy list with cost estimates, full cut list for all lumber pieces and plywood pieces, and full installation instructions for all brackets and lumber pieces. Please supply length, width, roof pitch, roof overhangs size on all four sides which will drive our cut list and installation instructions work.

This pavilion structure can be used as a carport, garage, a storage shed, a deck cover, a patio cover, a greenhouse, or for any other purpose.

16 ft. maximum open span between the 4x4 posts is limited by available 4x4 lengths in the market. To increase the width, order and add a post in the middle with our 4x4 Tee Brackets and 4x4 Post anchors.

Rafters required 24" on center for proper load bearing and to provide easy roof deck osb/plywood addition.

Open span of rafters between the two walls is limited to code approved spans based on 2-by rafter size.
Rafters allow roof to overhang past each wall end.

Shingles, polycarbonate panels, and metal standing seam-type roofing materials are approved.

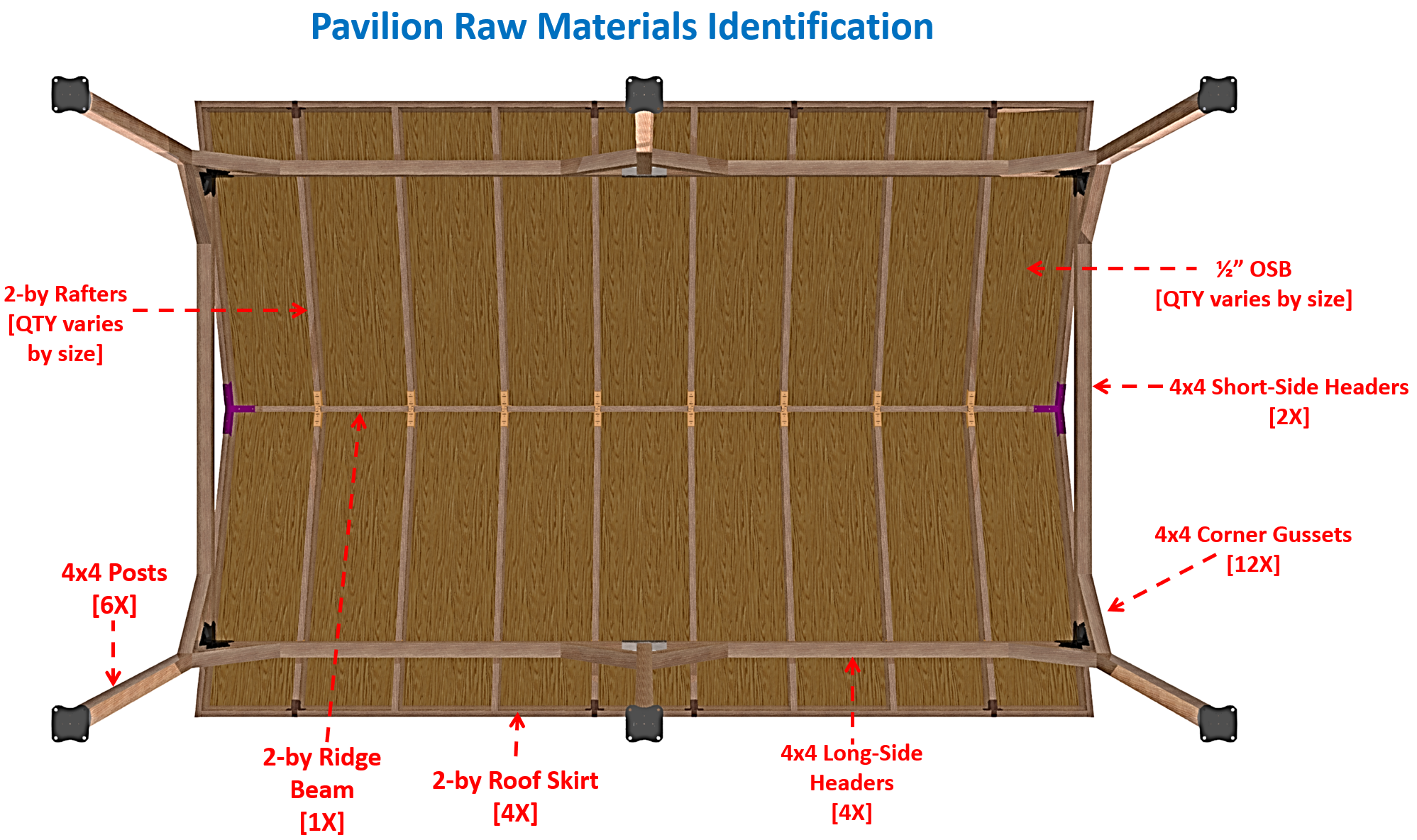

Uses 4x4 lumber for headers and 2x6, 2x8, or 2x10 rafters, ridge beam, and roof skirts.
Rafters, ridge beam, and roof skirts must be of the same size 2-by lumber.

Contact us via Shopify messenger or email rthapa@RioOutdoors.com to request cutlists, buy list, and complete installation instructions before starting your project.

Note: This is a DIY brackets kit. Lumber & Roofing Materials are not included. You acquire them locally.

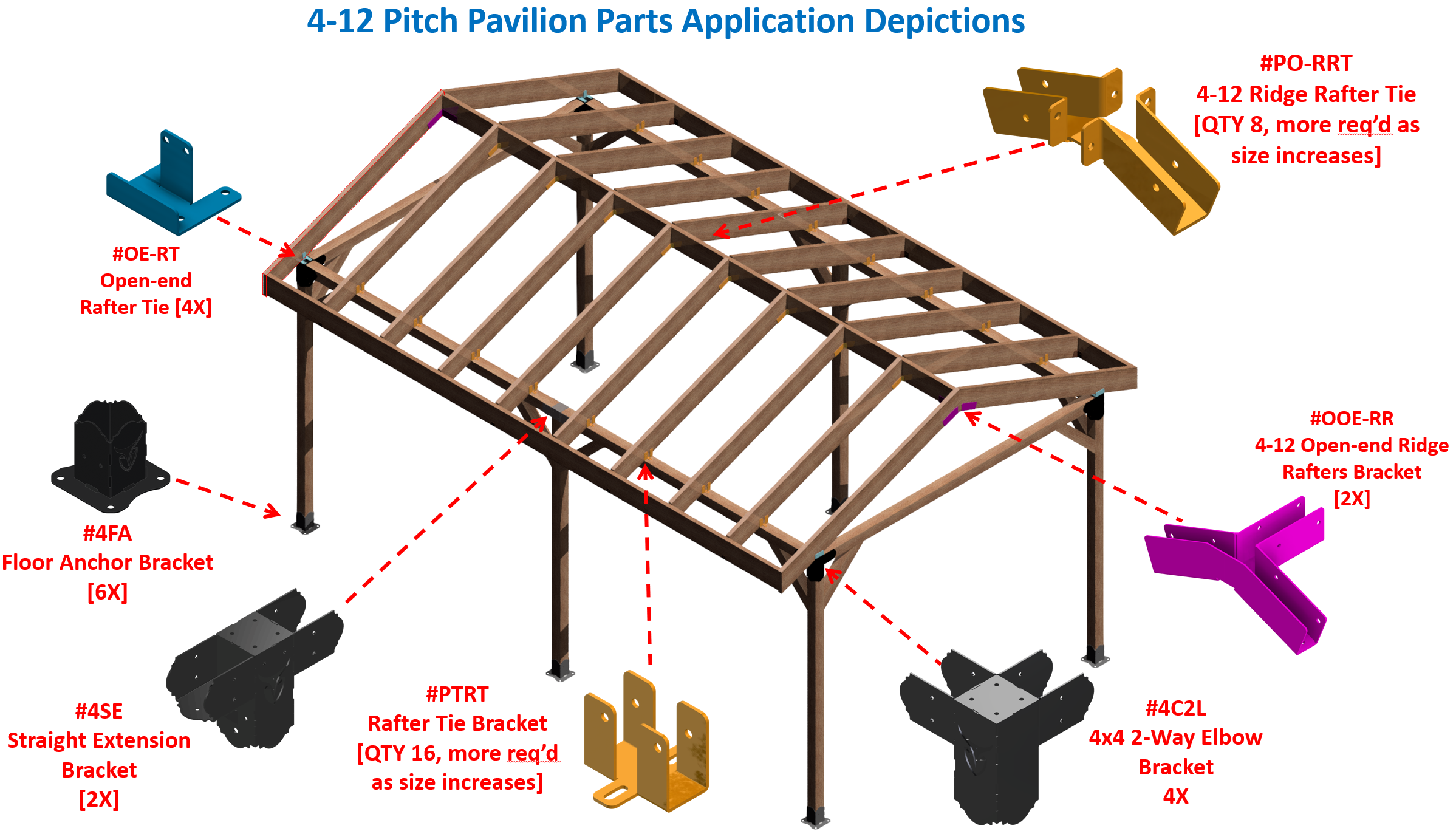

Kit includes all steel parts to build posts and header structure and to join all roof lumber pieces securely for infinite lifetime:

Qty 6 of 4x4 Floor Anchor Brackets
Qty 4 of 4x4 2-way Elbow Brackets
Qty 2 of 4x4 Tee Bracket
Qty 2 of 4-12 Gable End Rafters Bracket
Qty of 4-12 Ridge Rafters Bracket Varies by size

Qty of 4-12 Roof Skirt Tie Bracket Varies by size
Qty of Universal Rafter Tie Bracket Varies by size
Qty 4 of Open End Rafter Tie Bracket

1/8" thick steel used for all parts, laser cut, and welded, powder painted for rust proofing.
Lag screws to secure all brackets are included in black color.

This product is also listed at Etsy.com/RioOutdoors.
