U-Channel Truss End Bracket | Left Hand

U-Channel Truss End Bracket | Left Hand

Introducing our DIY Heavy Duty U-Channel Truss End Bracket, TE-UBL, the perfect solution for securely supporting your truss system. This heavy-duty bracket is designed to provide maximum stability and durability for your projects. Easy to install and versatile, it is ideal for various DIY applications. Constructed with high-quality materials, this U-channel bracket ensures long-lasting performance. Upgrade your truss system with this reliable and sturdy bracket today!

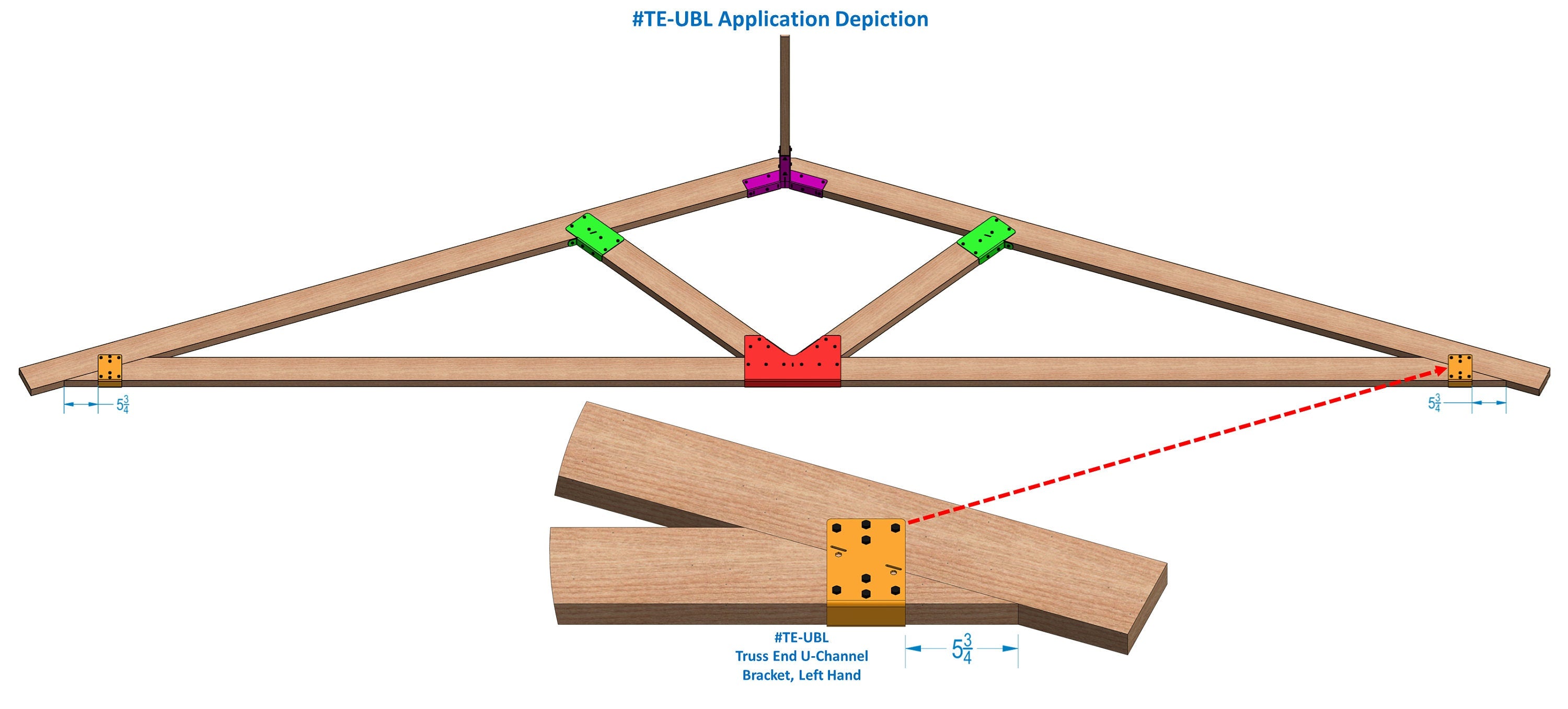

The U-Channel Truss End Bracket LH is employed to assemble a 4-12 Pitched Truss and 5-12 Pitched Truss structure.

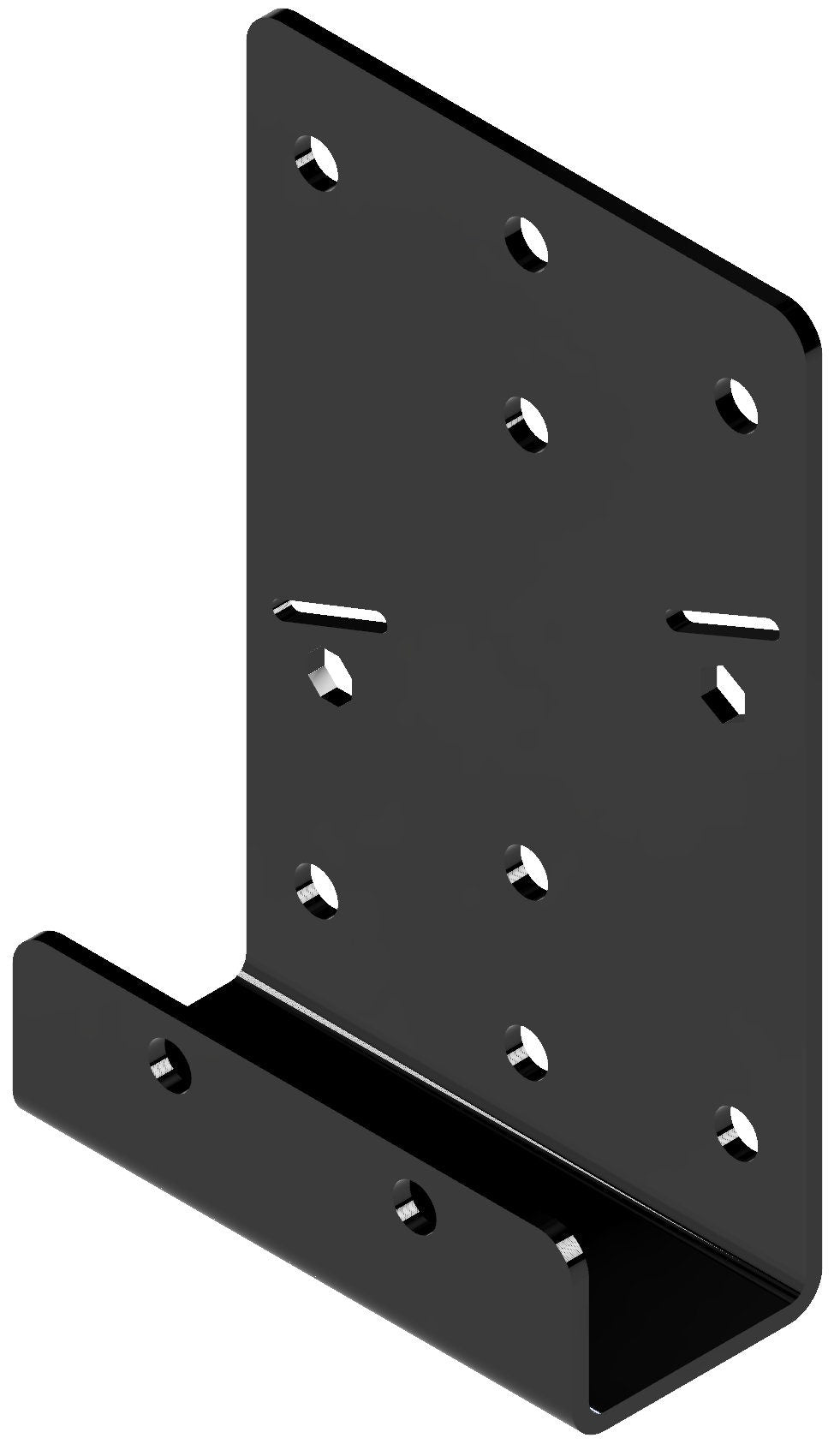

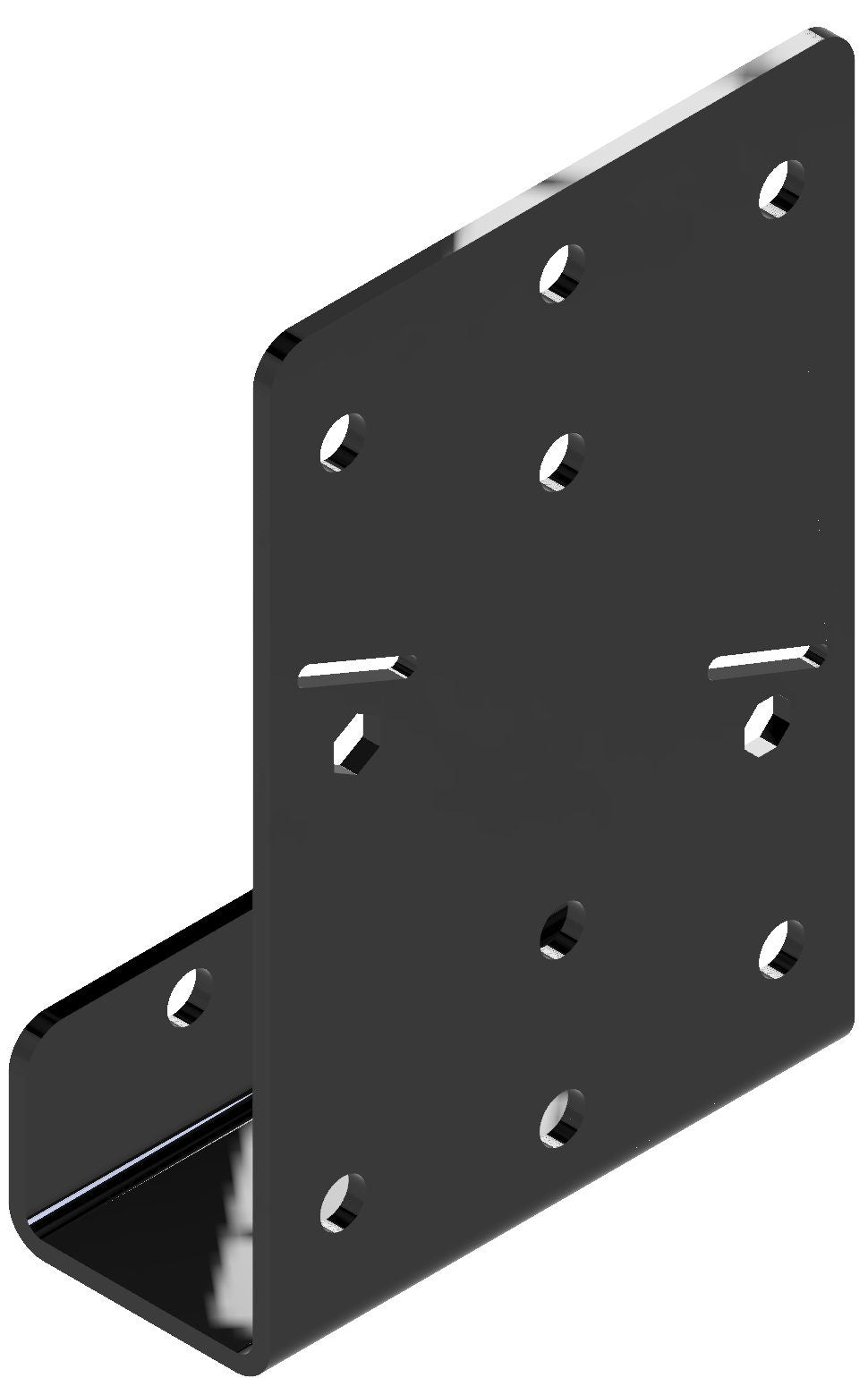

The U-Channel Truss End Bracket, LH attaches to the side face of the rafter beam and the horizontal beam and provides one U-channels to hold the horizontal beam.

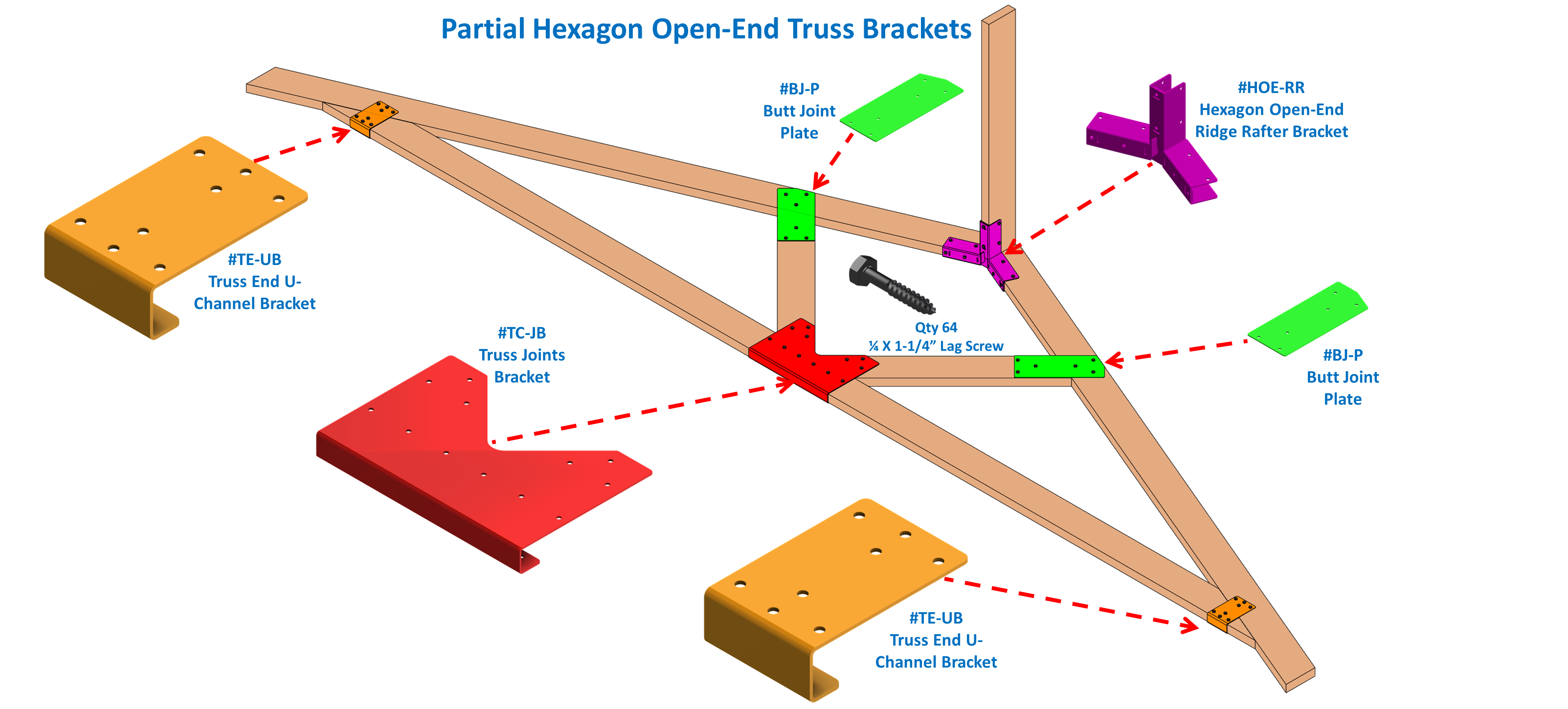

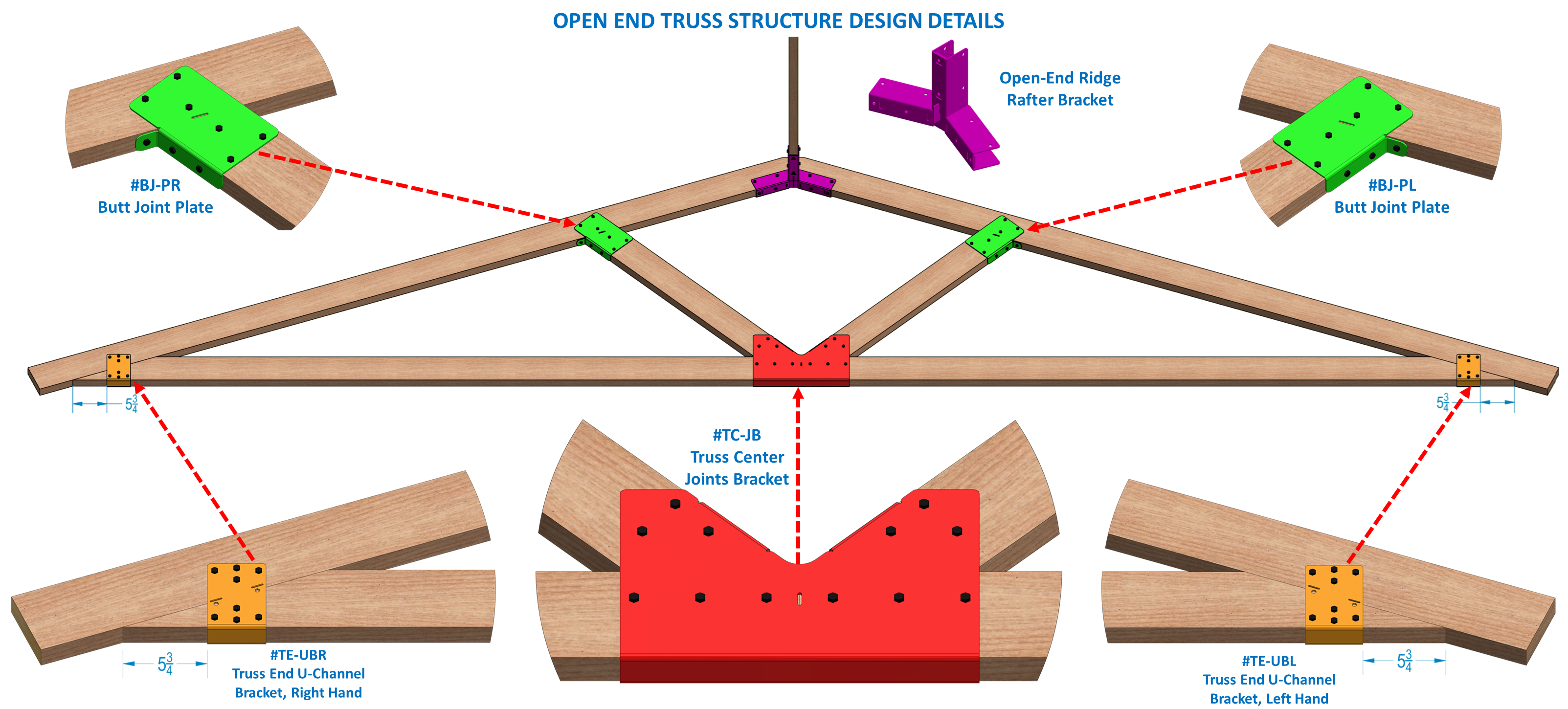

In conjuncution with Truss Center Joints Bracket, Truss End U-channel, Right Hand, Open End Rafters Bracket, and the Butt Joint Plate, this bracket allows DIYers to easily create a strong and lasting open end truss structure.

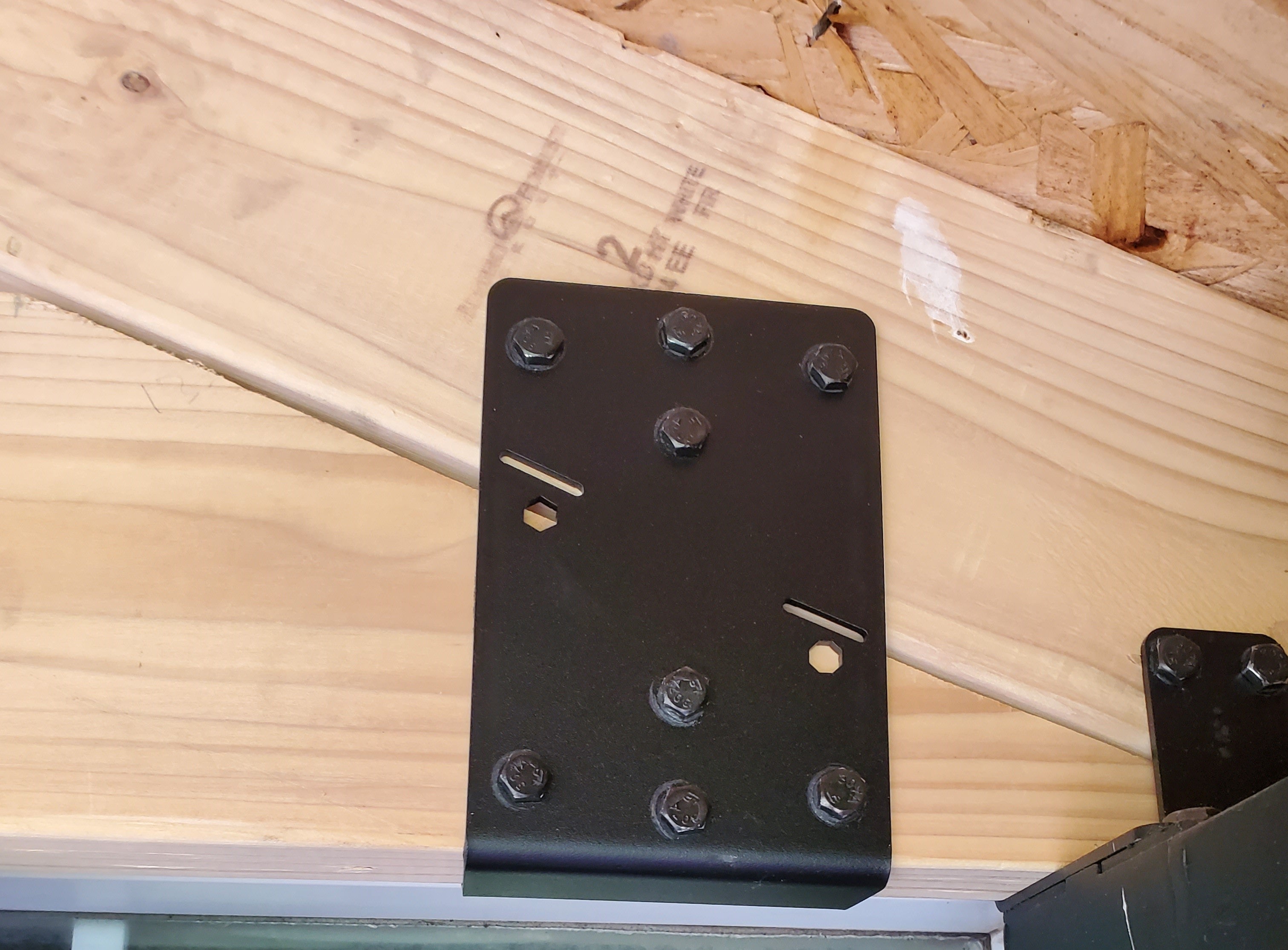

The U-Channel Truss End Bracket LH attaches to the rafter's side surface using four (4) 1/4" x 1-1/4" lag screws.
The U-Channel Truss End Bracket LH attaches to one face of the horizontal beam using four (4) 1/4" x 1-1/4" lag screws and the opposite face using two (2) 1/4" x 1-1/4" lag screws.
The high strength design of this bracket creates a strong joint between the horizontal beam and the rafter member.
This bracket is designed to work with 2X4, 2x6, and 2x8 horizontal beam and rafter member.
This bracket is designed to compatible with both 4-12 and 5-12 pitched Truss structure.

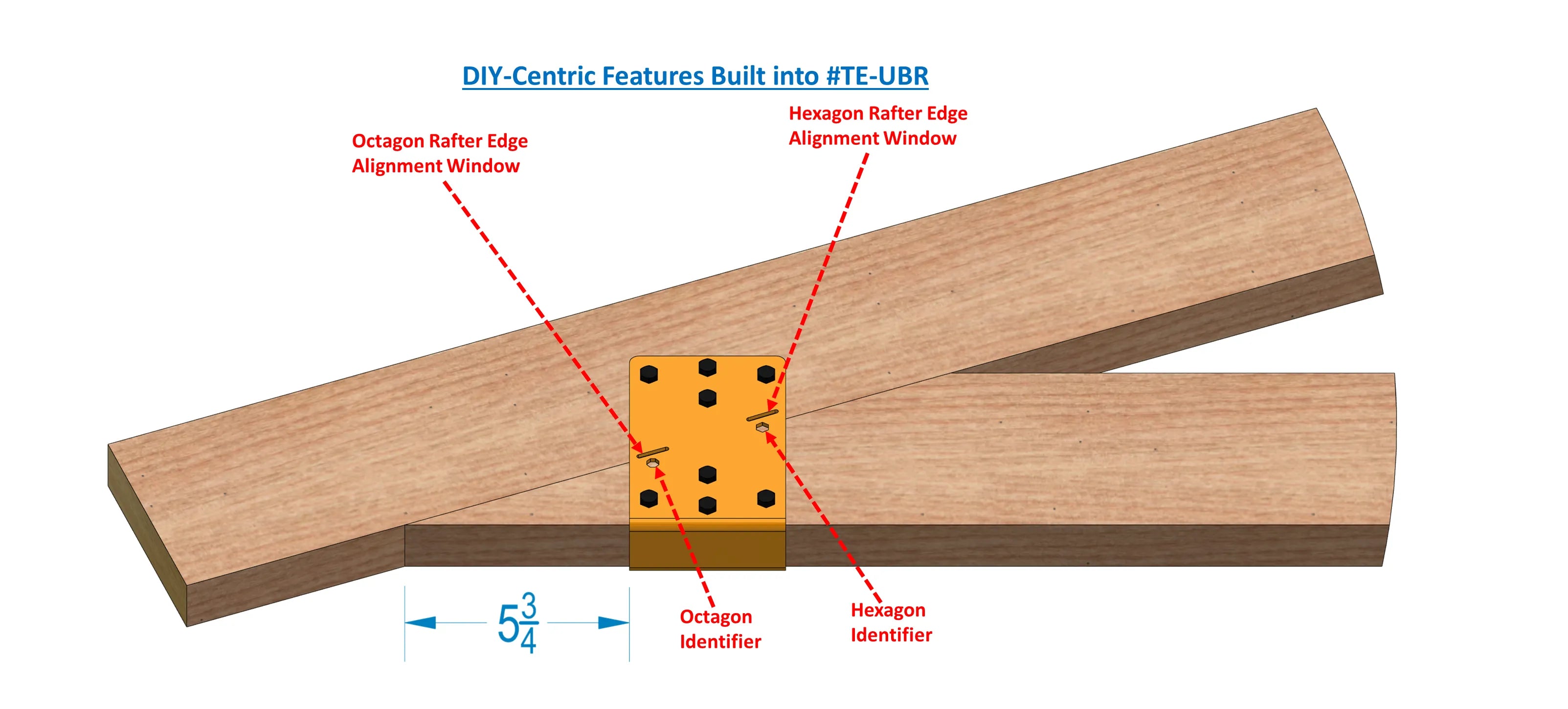

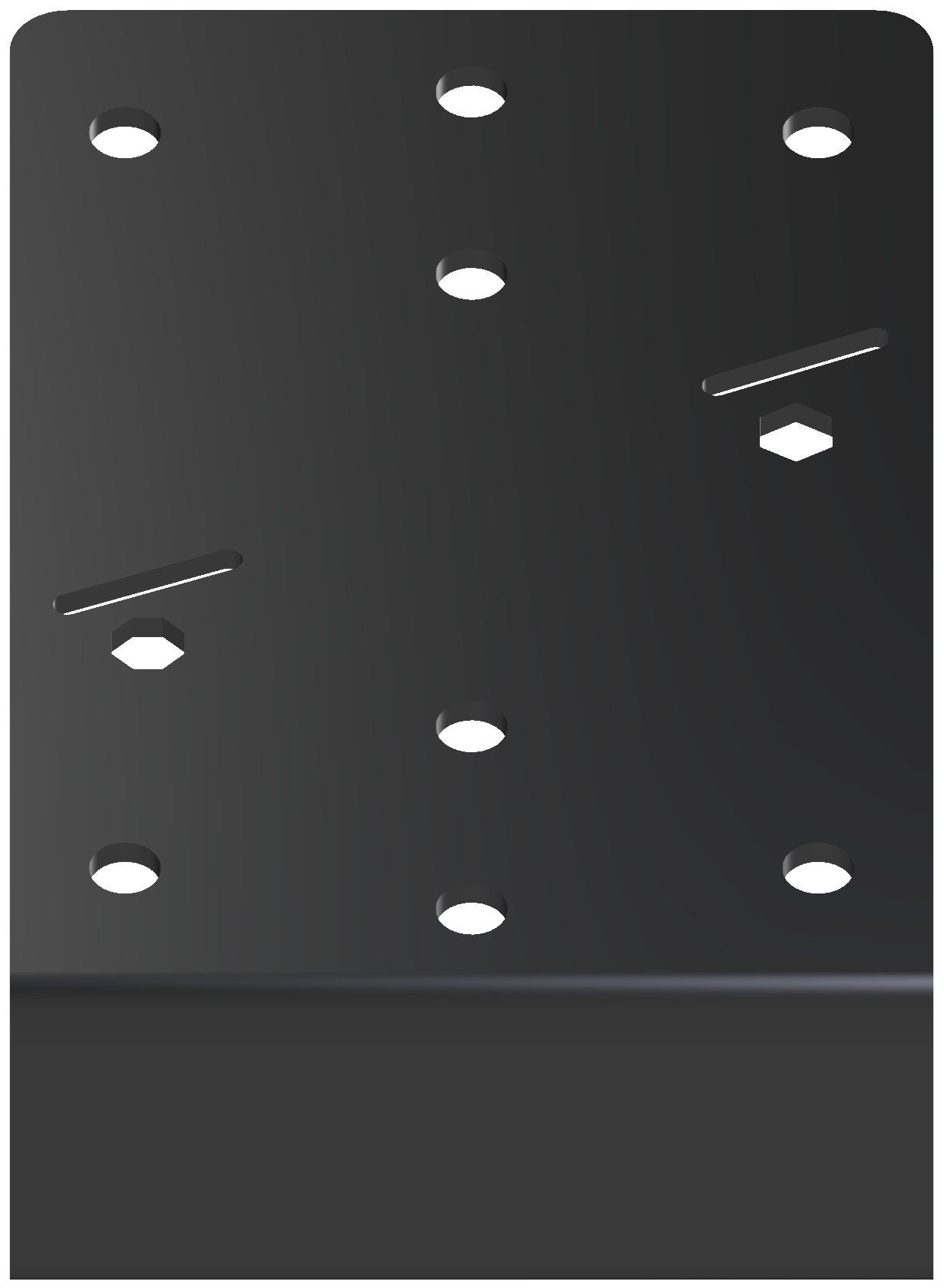

Two simple but DIY-Centric features are added to this bracket. Two joint inspection windows are provided and identified by a hexagon shape cut and an octagon shape.
For a 5-12 pitched open-end truss assembly, align the bottom edge of the rafter with the slot window located above the hexagon shaped cut. This will locate this bracket at the proper left to right position automatically.
For a 4-12 pitched open-end truss assembly, align the bottom edge of the rafter with the slot window located above the octagon shaped cut. This will locate this bracket at the proper left to right position automatically.

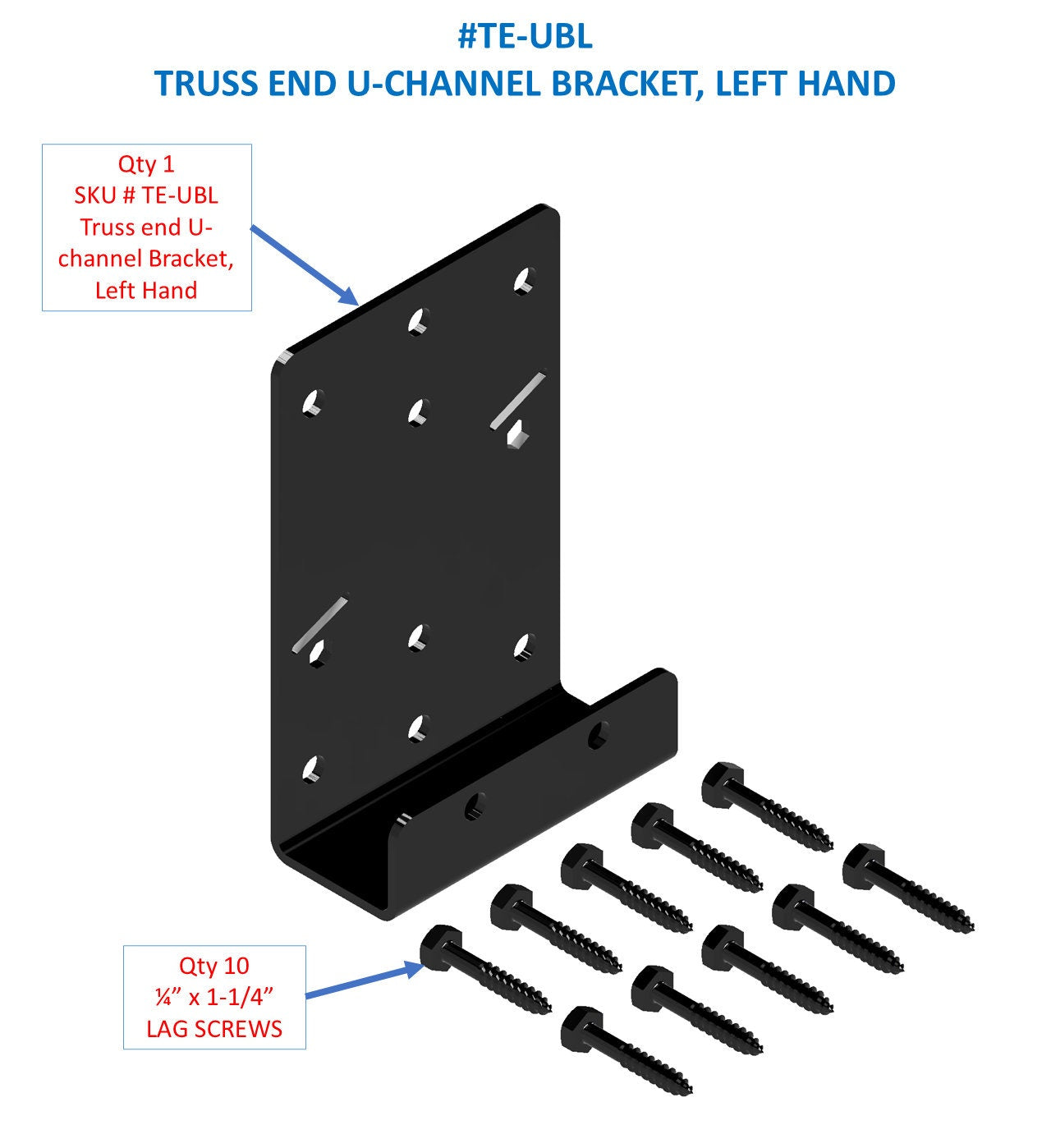

Included are ten (10) 1/4" x 1-1/4"  lag screws to complete the job.
This bracket is constructed from 1/8" thick high strength steel.
This bracket is laser cut and formed and coated with durable black powder paint.
This bracket may be spray painted over with any desired exterior-grade paint color.

This U-Channel Truss End Bracket | Left Hand is also listed at RioOutdoors.com and at Etsy.com/RioOutdoors.
