DIY 6x6 2-way 90 degree Elbow Bracket

DIY 6x6 2-way 90 degree Elbow Bracket

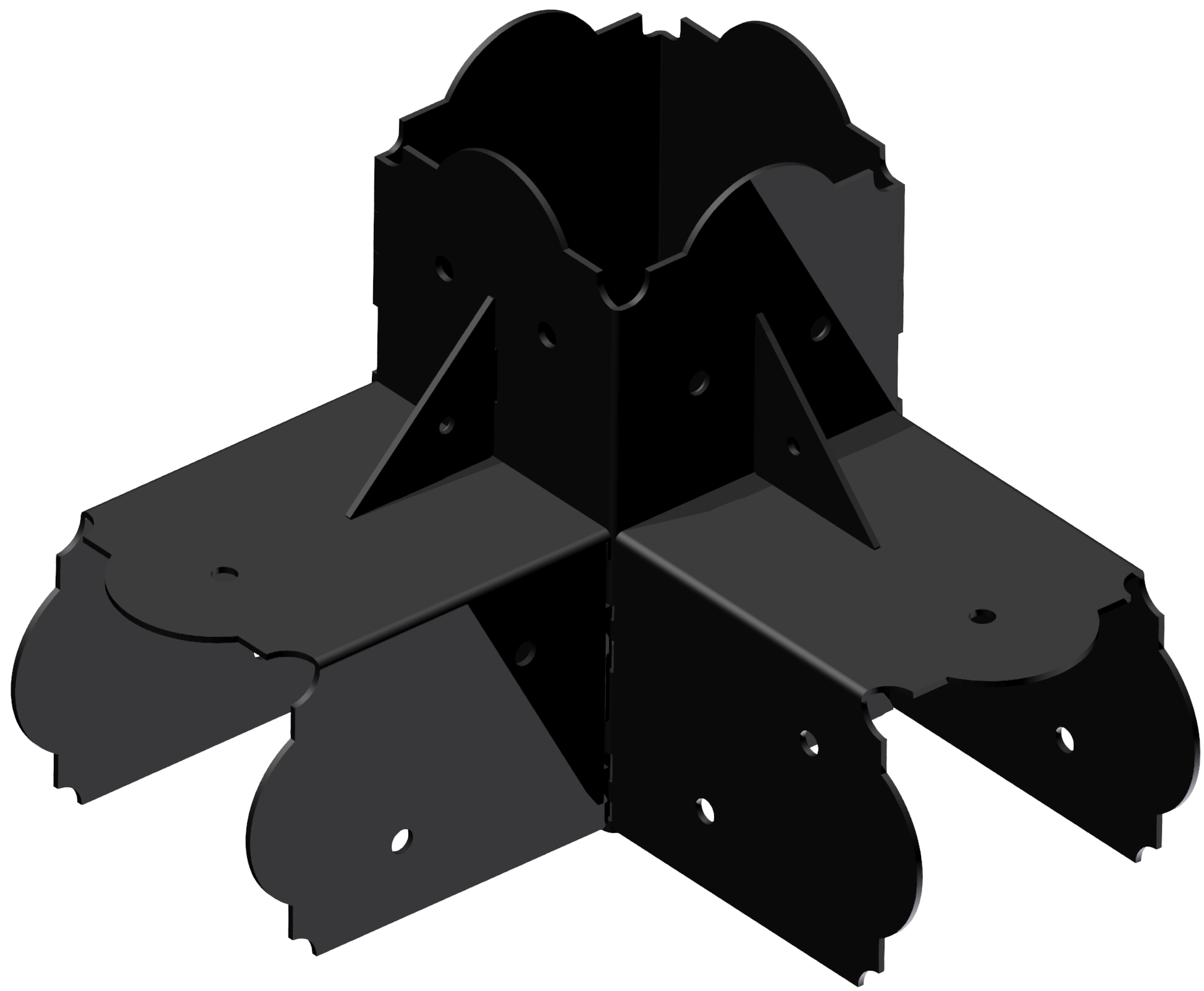

This versatile and durable DIY 6x6 2-way 90 degree Elbow Bracket is perfect for a wide range of projects, from constructing sturdy decks to building strong outdoor structures. With its precise design and high-quality iron construction, this bracket provides reliable support and stability. Whether you're a seasoned craftsman or a novice DIY enthusiast, this corner bracket is a must-have for all your building needs.

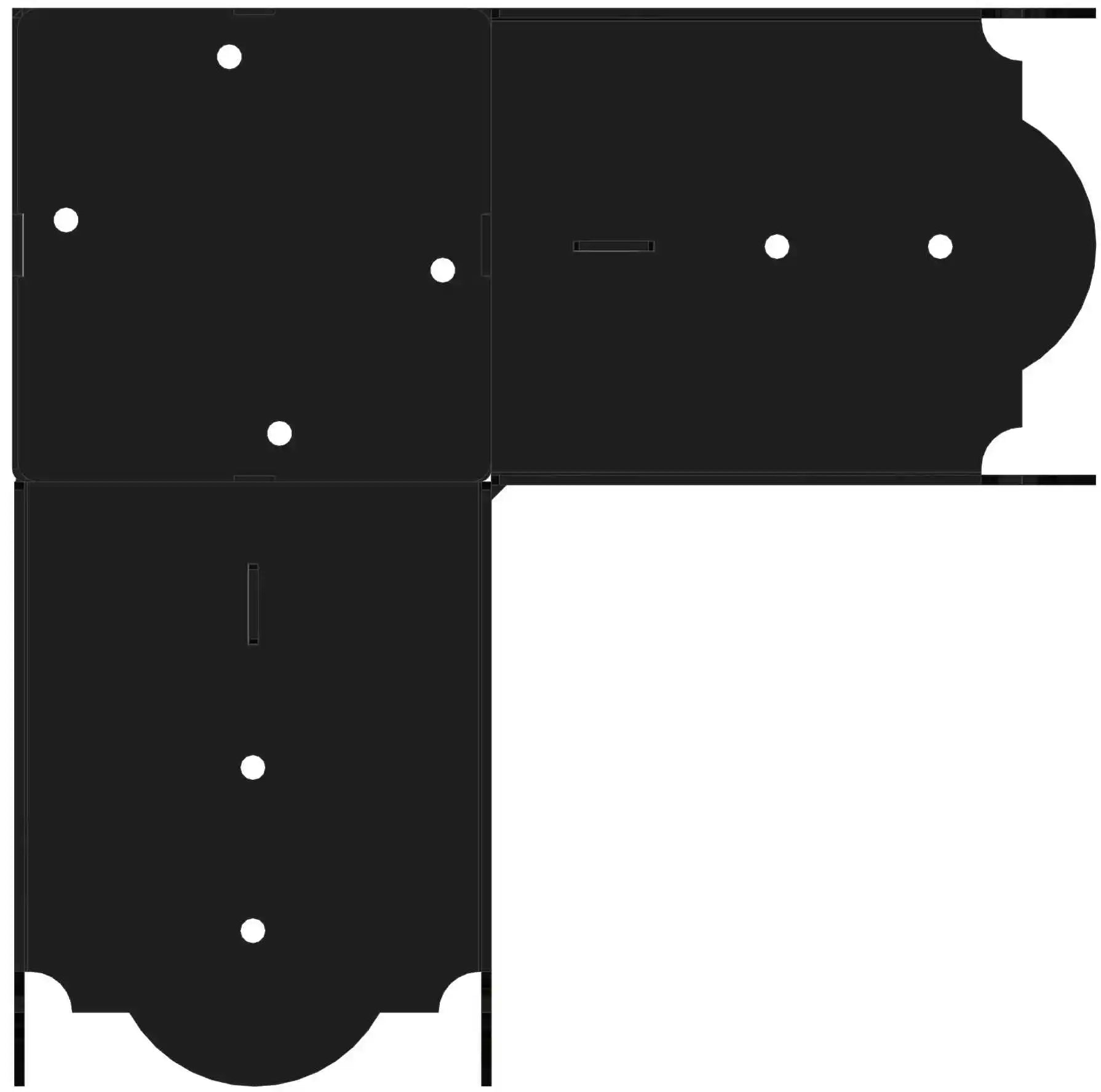

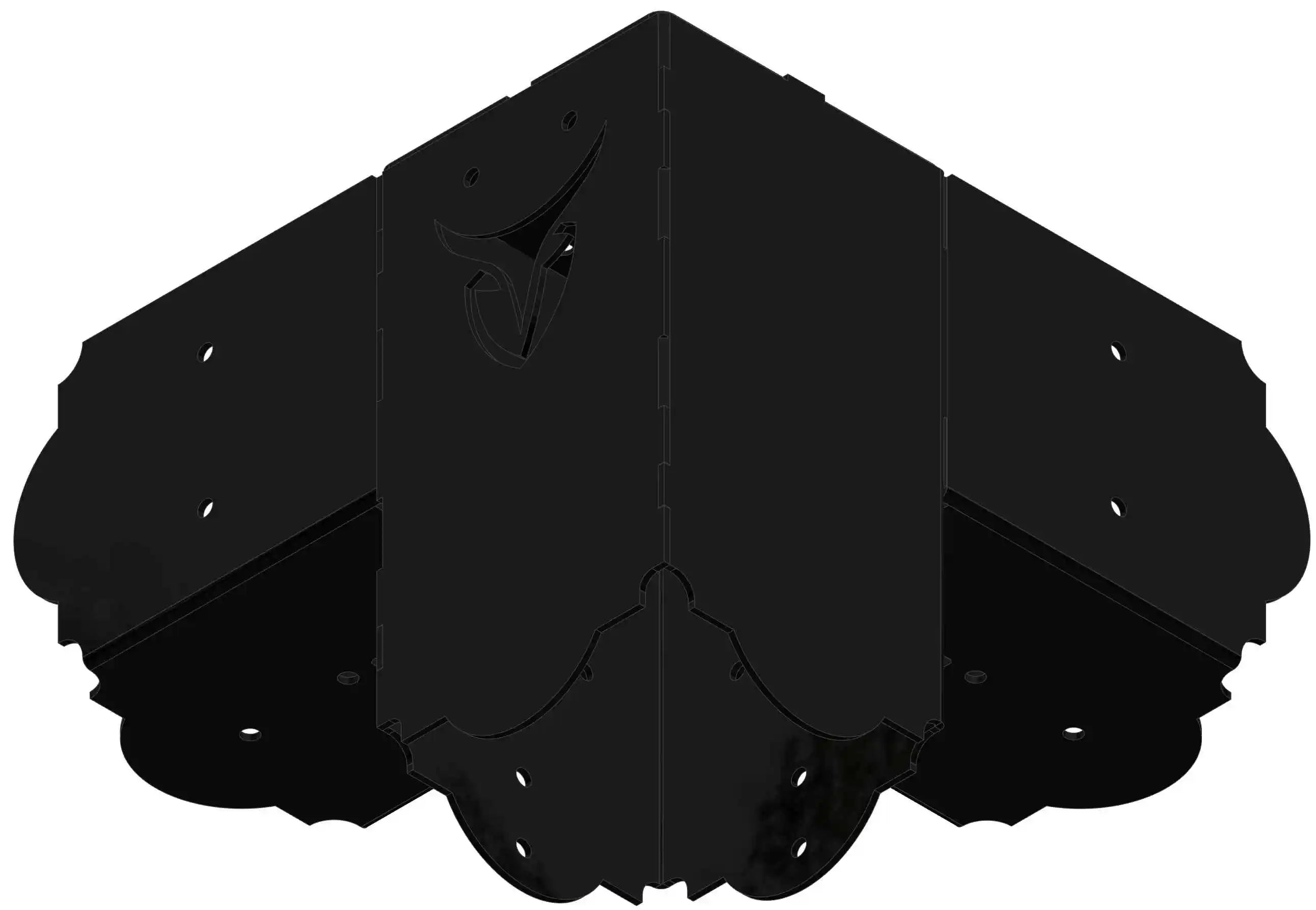

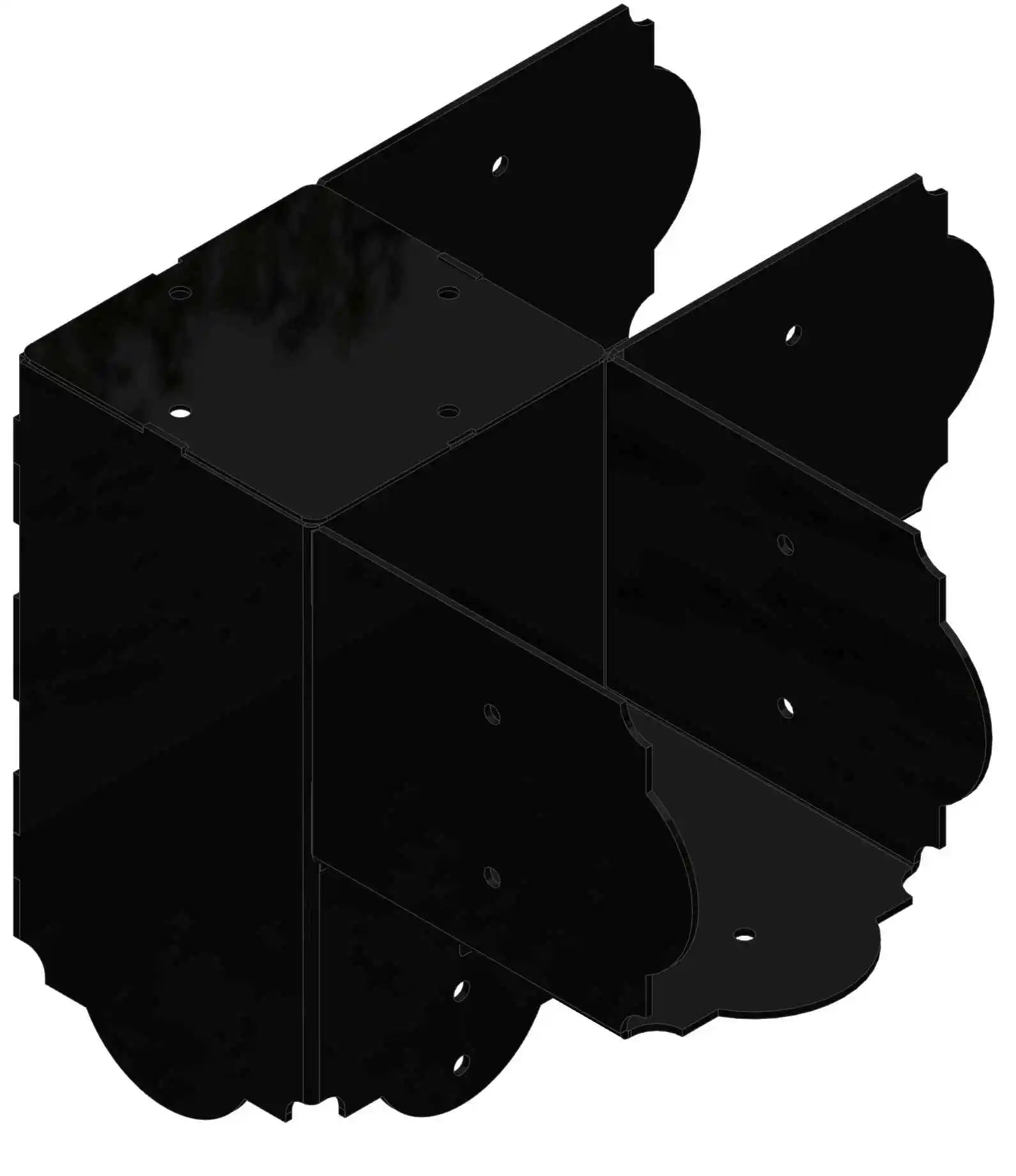

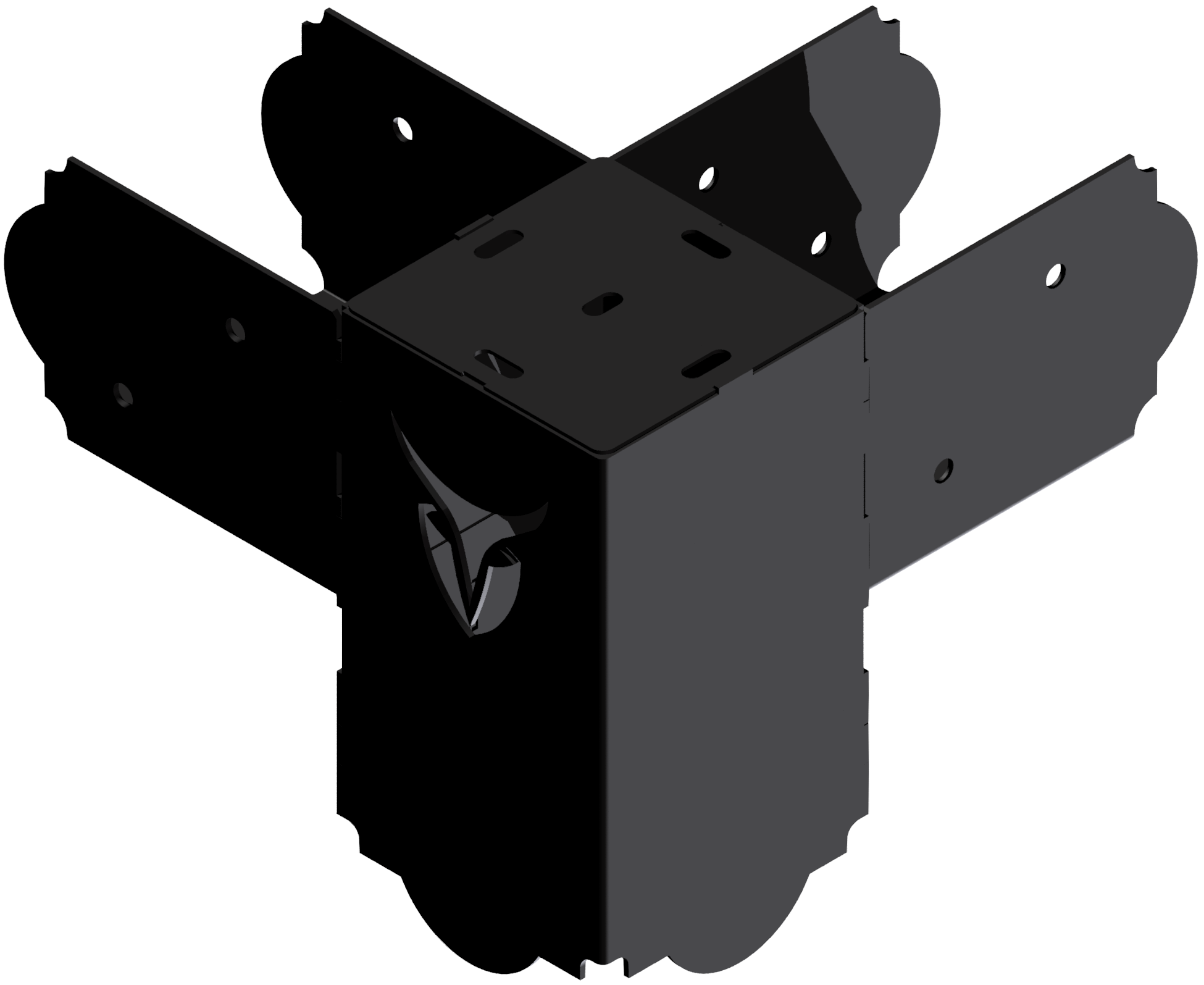

2-way 90 deg heavy duty corner bracket for 6x6 (5.5" x 5.5") size lumber members is designed to create a strong 3-way 90-degree joint between three 6x6 lumber members.

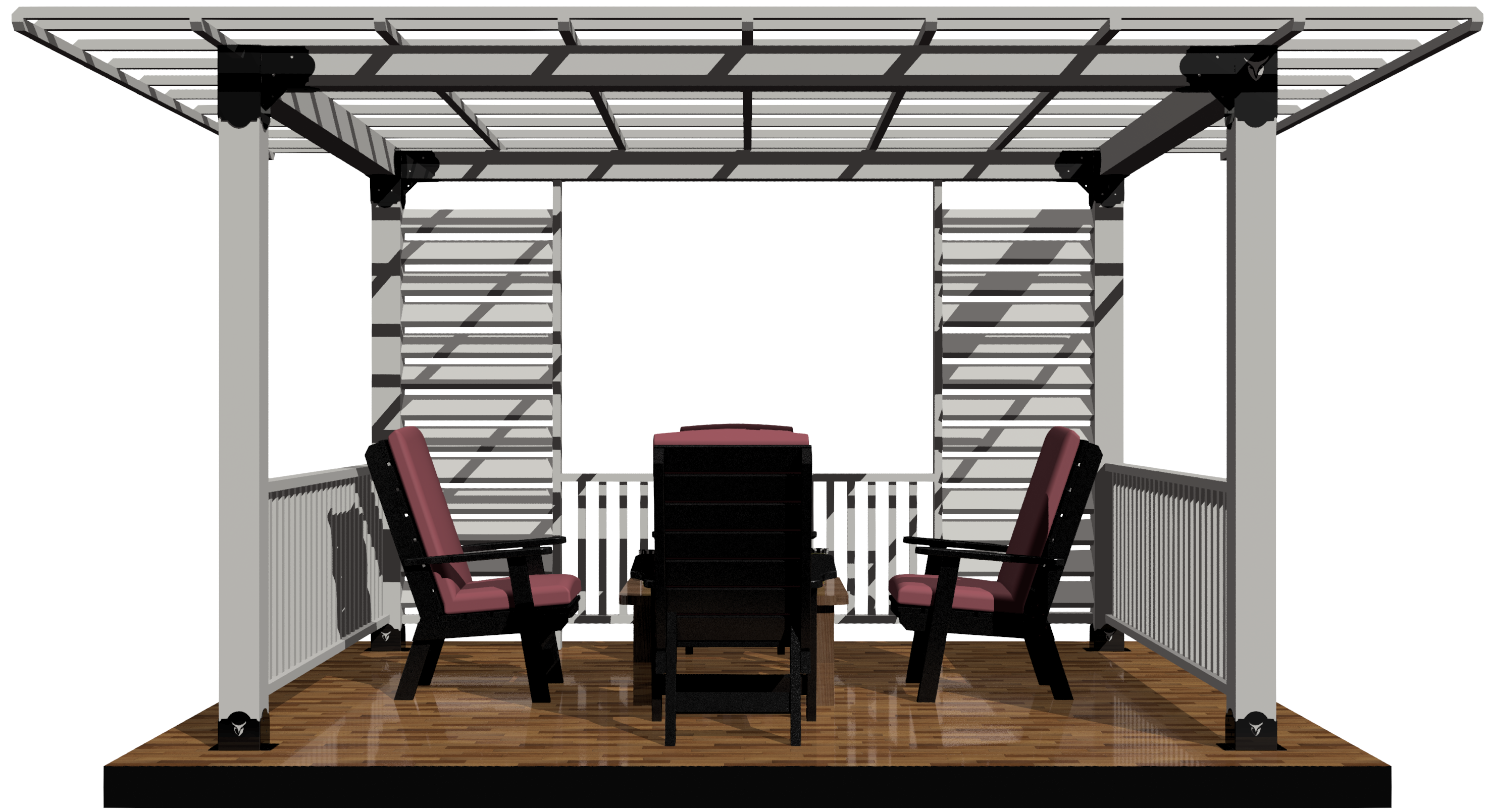

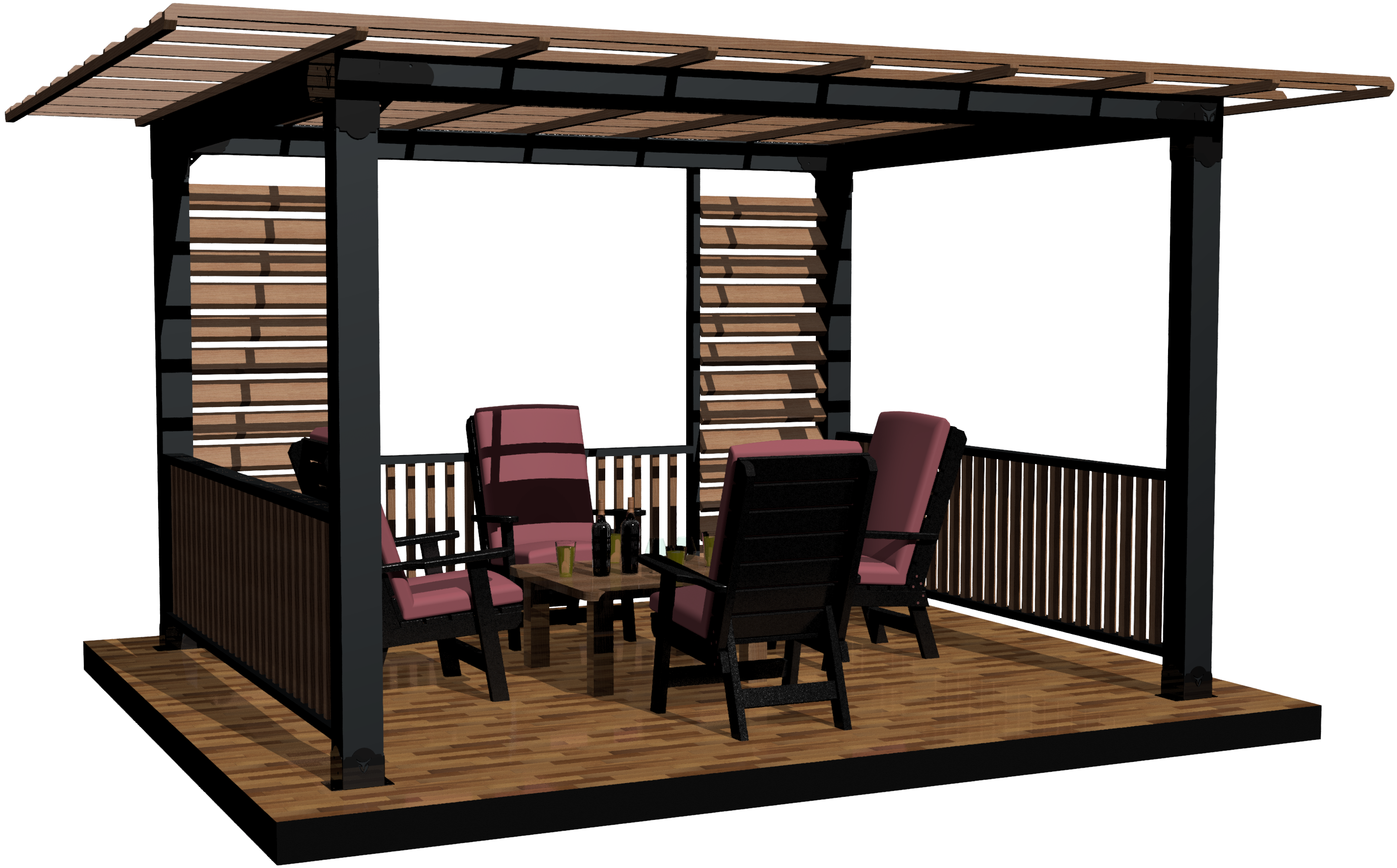

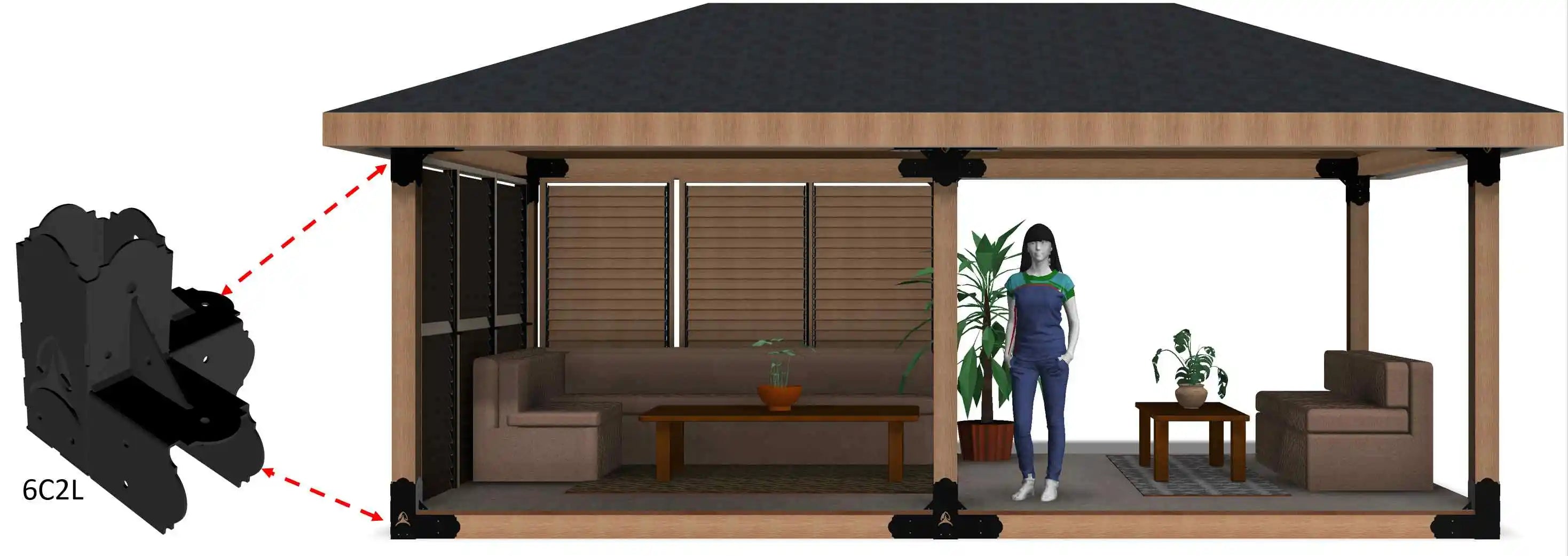

This bracket is commonly used for 6x6 Rectangle Pergolas, 6x6 Pavilions, 6x6 Lean-To and for any 6x6 structure.

DIY Smart

Drop-in Smart DIY design allows easy, accurate, and safe assembly work.
Open U-channels allow easy and safe placement of header.

Can be use anywhere a strong 2-way joint between 6x6s is required.
Can be positioned in any orientation.

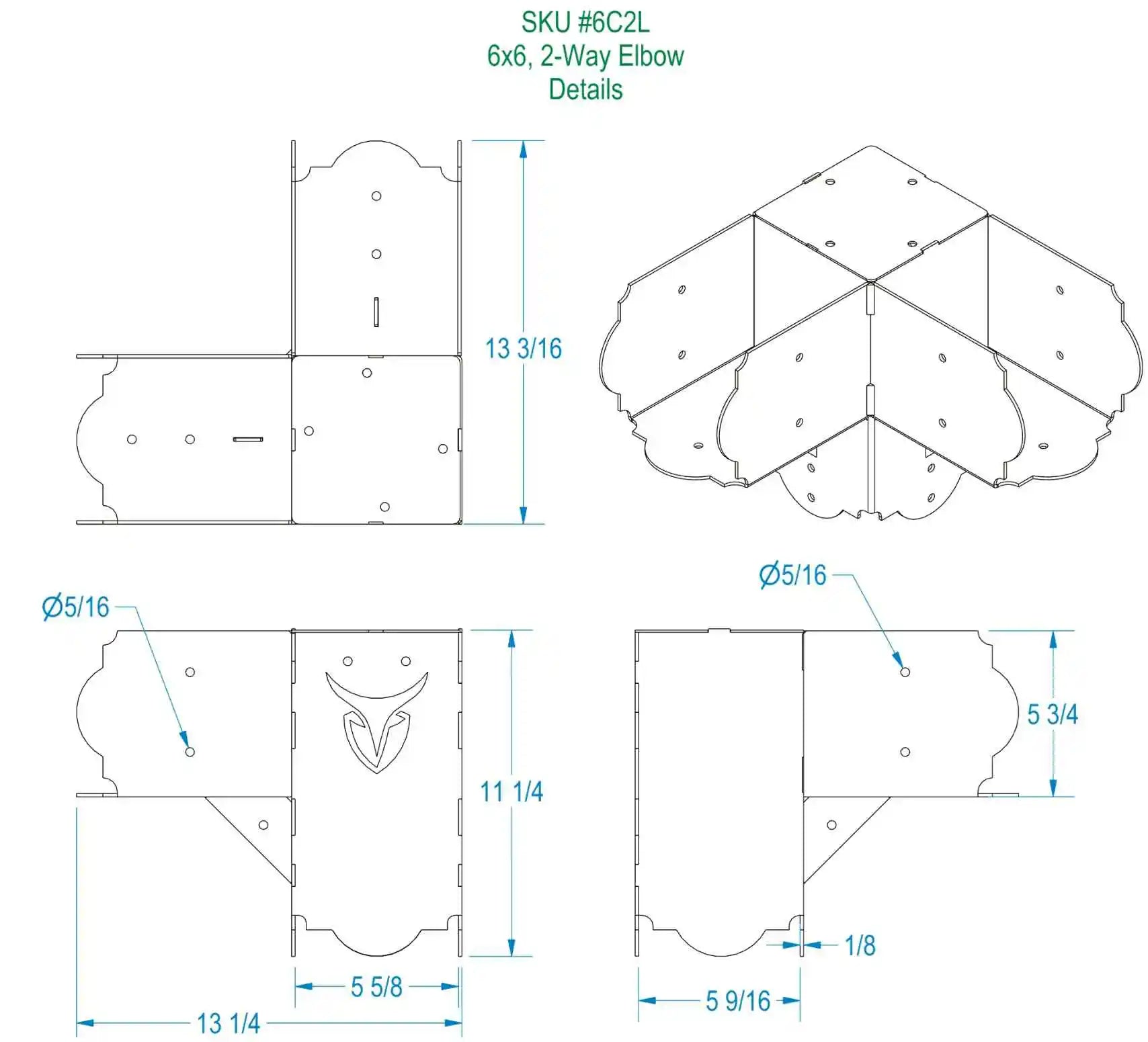

11-1/4” deep tube slides over 6x6 (5.5" x 5.5") post end.
Allows bracket to be moved up or down at post ends for height adjustment, if necessary.

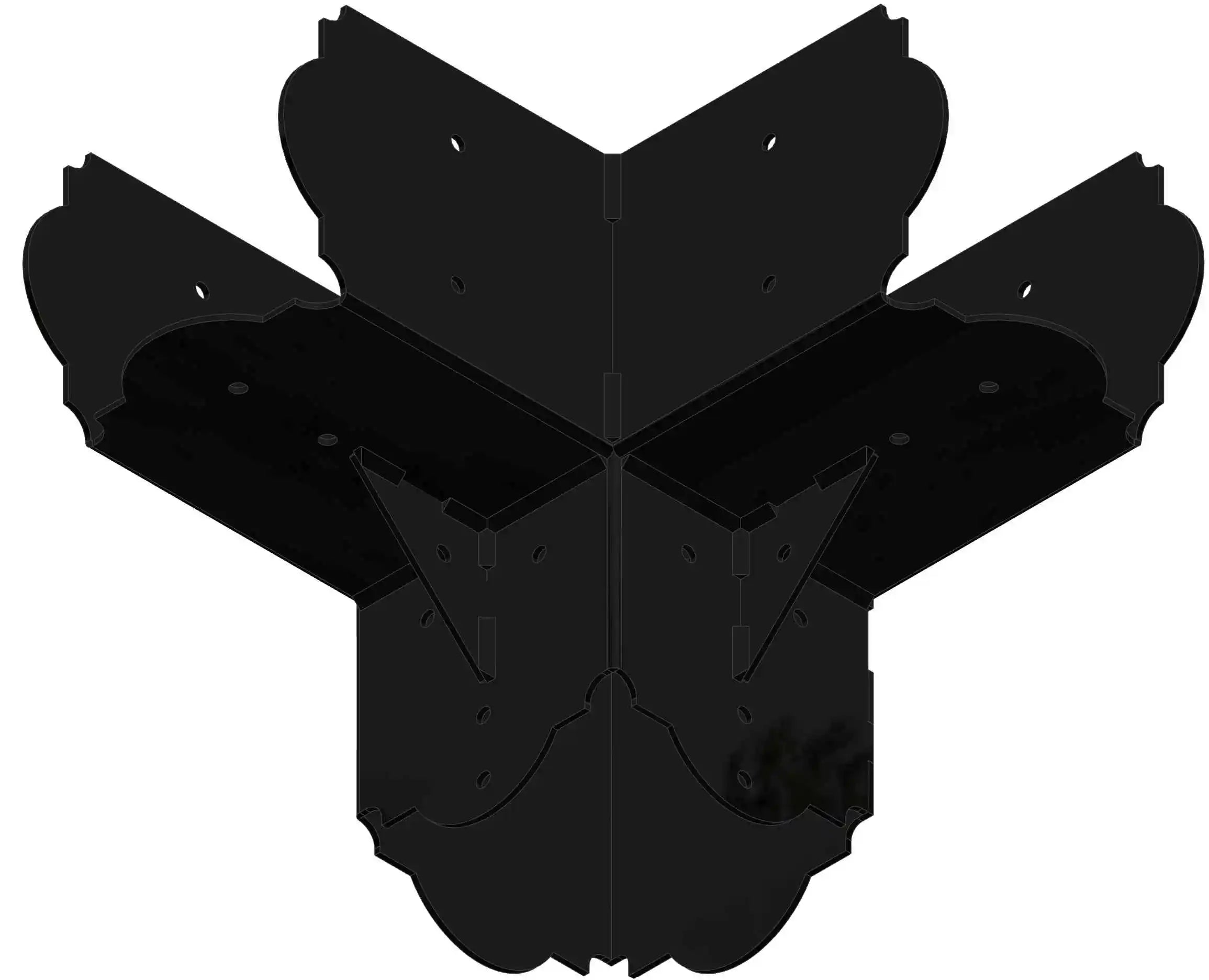

Heavy welded-on gussets under U-channel provides high load resistance and sway resistance. Eliminates the need for lumber gussets at corners.

Physical Properties

Four predrilled 7/16” holes present, 2 holes in each vertical face of U-channels, for securing headers to the bracket using 3/8”X 2” Lag Screws which are included.

Four 7/16” holes present in two vertical tube walls to secure post to the bracket using 3/8”X 2” Lag Screws.
1/8” high strength steel, fully welded construction.
Includes QTY 8 of 3/8" x 2" Black Lag Screws

Highest quality materials and workmanship for high durability and long life.
Decorative laser cut profiles provide refined aesthetics.
Black powder painted for corrosion resistance.
Can be spray painted over, using any exterior grade paint.

This bracket is also listed for sale at RioOutdoors.com and at Etsy.com/RioOutdoors.
