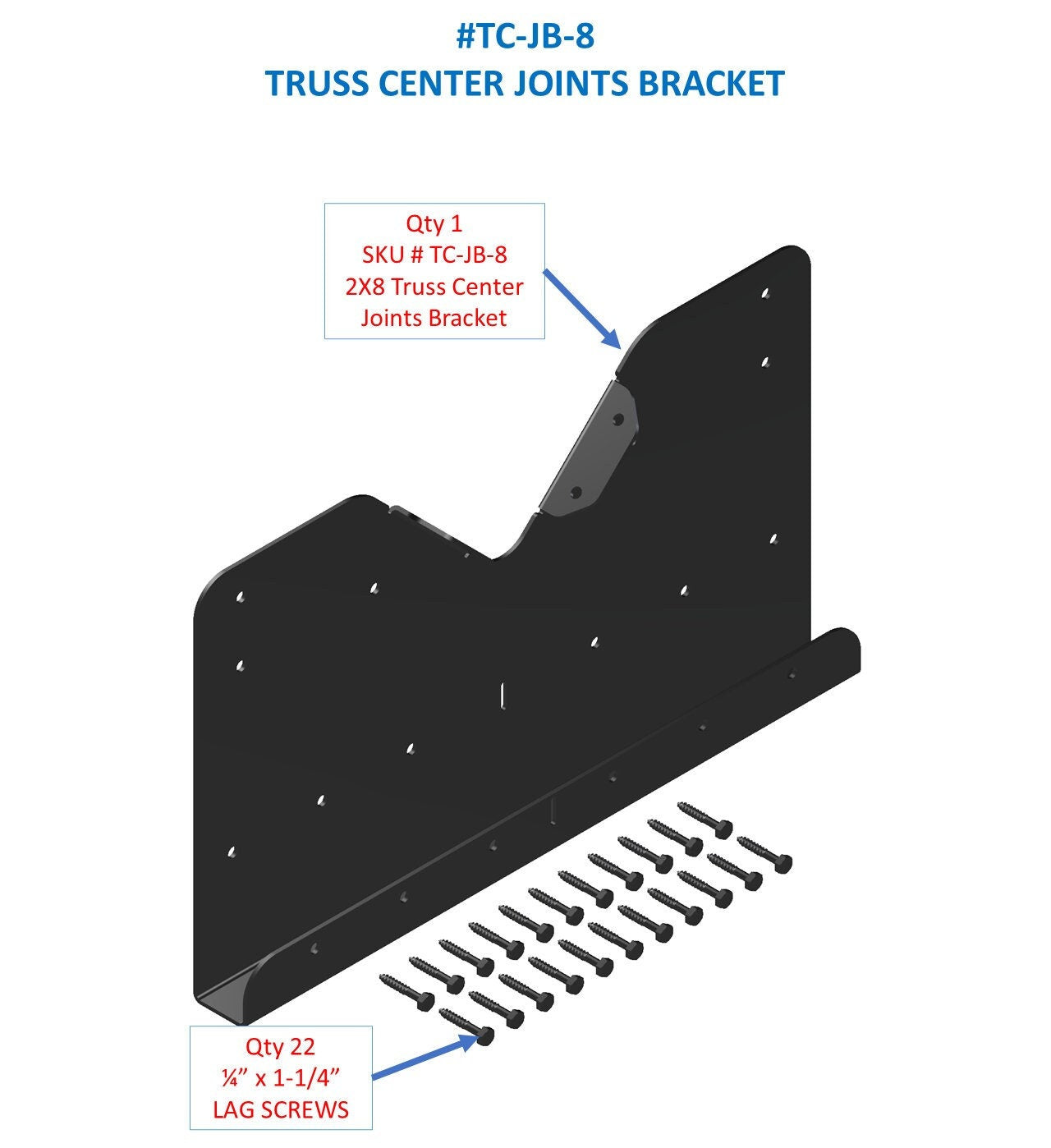

This technical drawing displays a truss joint bracket along with a specified quantity of lag screws required for assembly, ideal for construction projects.
Various wooden pieces are arranged on a floor, ready for assembly. Tools are placed nearby, indicating an ongoing construction project.
A wooden beam is positioned on a driveway, accompanied by tools and materials. The work is taking place in a suburban setting under bright sunlight, suggesting ongoing construction.

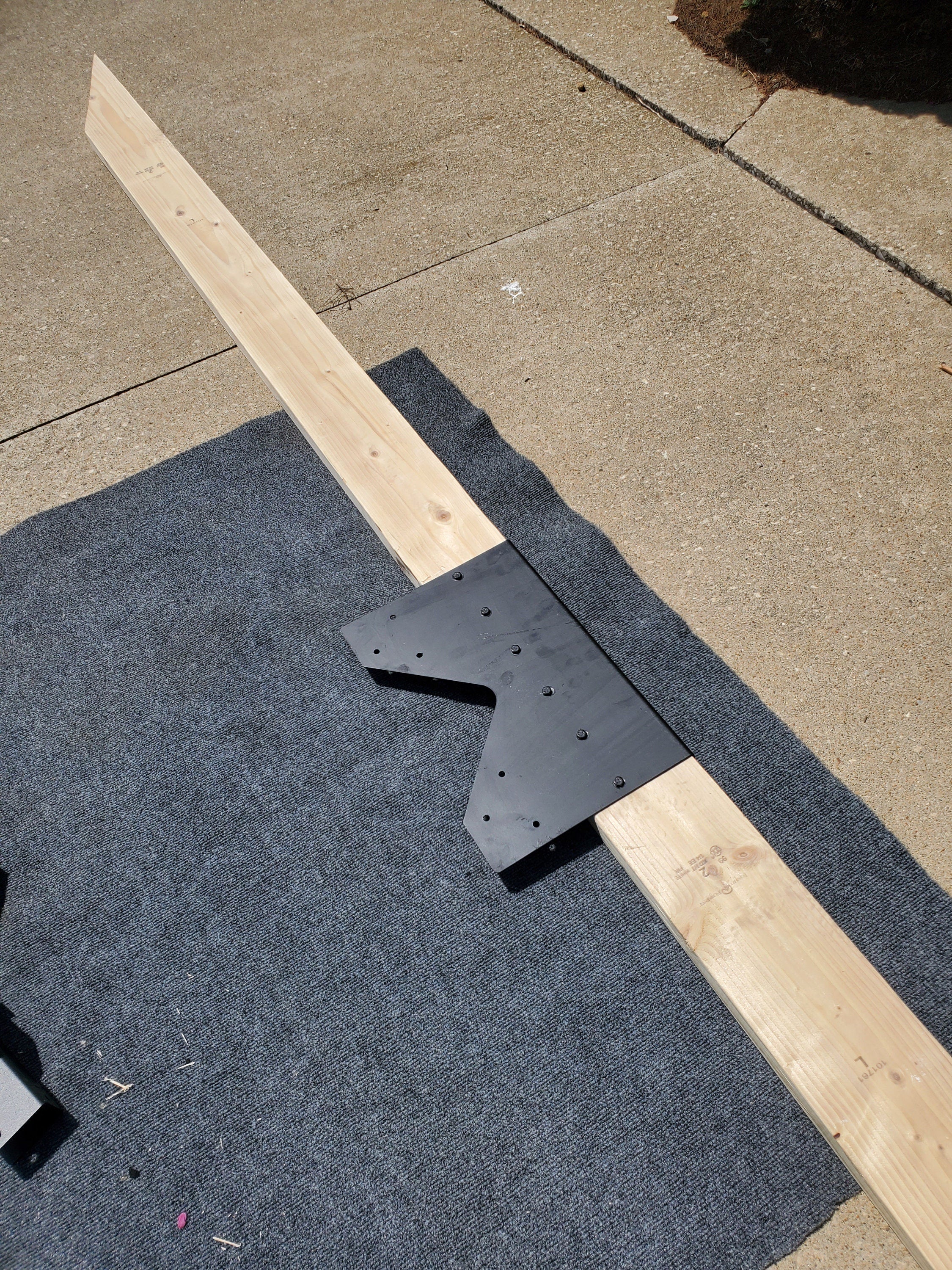

A wooden beam is positioned on a gray surface with a metal bracket attached, illustrating a DIY woodworking project underway in a residential driveway under bright sunlight.
Heavy Duty Black Truss Joint Bracket
Heavy Duty Black Truss Joint Bracket with screws
This durable mounting bracket provides robust support for various machinery installations, showcasing an efficient design for industrial use.
This durable mounting bracket provides robust support for various machinery installations, showcasing an efficient design for industrial use.
This durable mounting bracket provides robust support for various machinery installations, showcasing an efficient design for industrial use.
This durable mounting bracket provides robust support for various machinery installations, showcasing an efficient design for industrial use.

RioOutdoors

Diy Truss Joint Bracket| Truss Center

$49.50 USD
Truss Lumber Size:2x6
Quantity:
Pickup available at Blackrock Mfg. Usually ready in 24 hours

Diy Truss Joint Bracket| Truss Center

2x6

Blackrock Mfg.

Pickup available, usually ready in 24 hours

2400 Kerper Blvd
Dubuque IA 52001
United States

3194402527

Diy Truss Joint Bracket

DIY Truss Joint Bracket, Truss Center - Take your DIY projects to the next level with our innovative truss center joint bracket. Sturdy and easy to install, these brackets are designed to provide exceptional support and stability to your truss structures. Whether you are building a pergola, greenhouse, or shed, these brackets will streamline your construction process. Crafted from high-quality materials, they ensure durability and longevity. Elevate your craftsmanship with our DIY truss center joints brackets today!

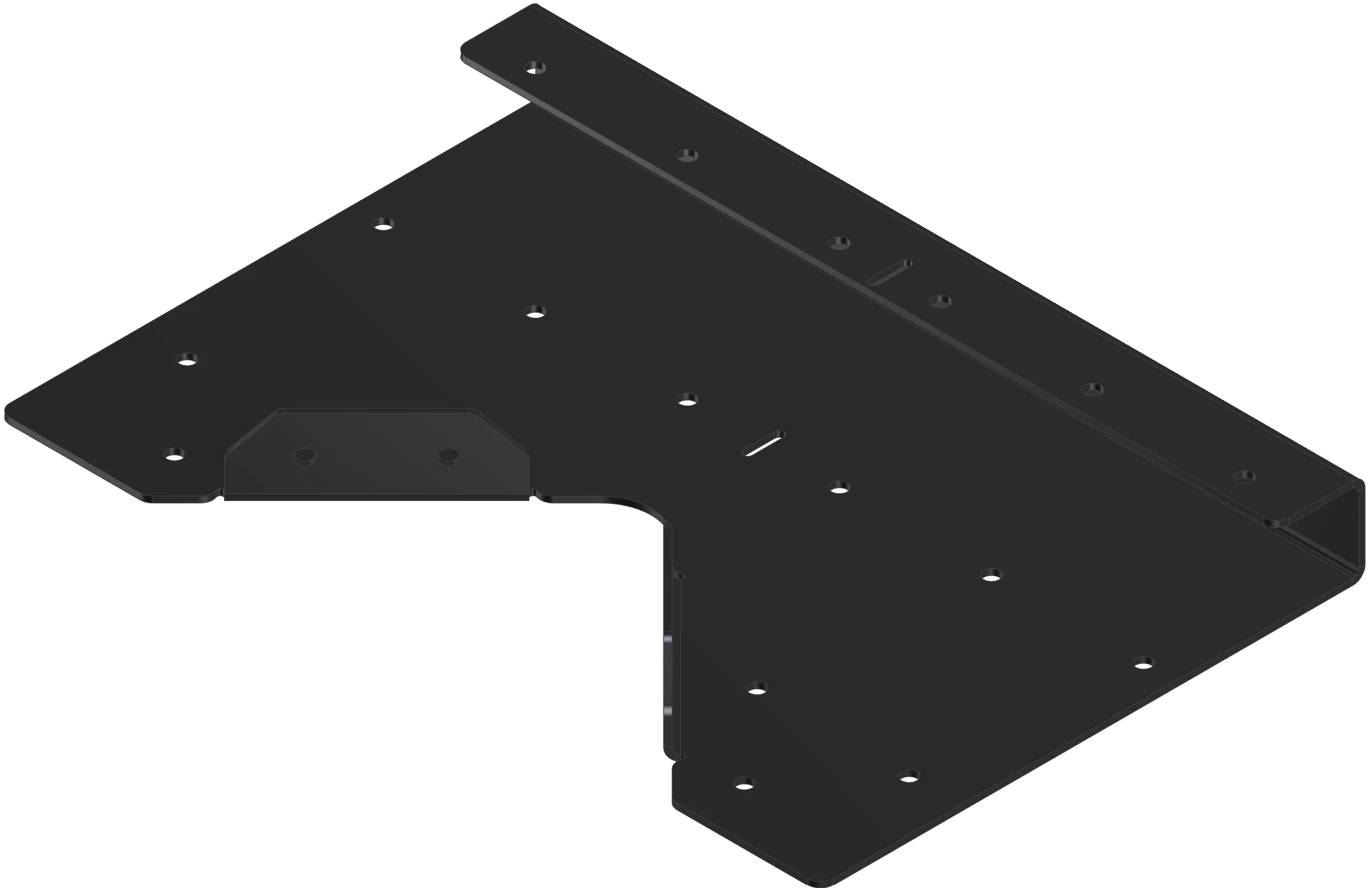

This is a novel truss joint bracket designed to create a permanent joint between two 2x6 or 2x8 horizontal beam members at the center of a truss.

This bracket allows addition of two 45 degree angled truss braces to run upward and attach to the truss rafters. it creates a super-strong joint between the two 2x6 or 2x8 horizontal beams and eliminates all sagging at the truss center joint. Use this bracket to create a super strong joint between two 2X lumber pieces. Repair weak trusses which have plywood or osb pieces supporting the joints.

Initially designed for a truss in partial hexagon and partial octagon gazebos, this bracket can be use for trusses on any rectangle or square gable roofed structure.

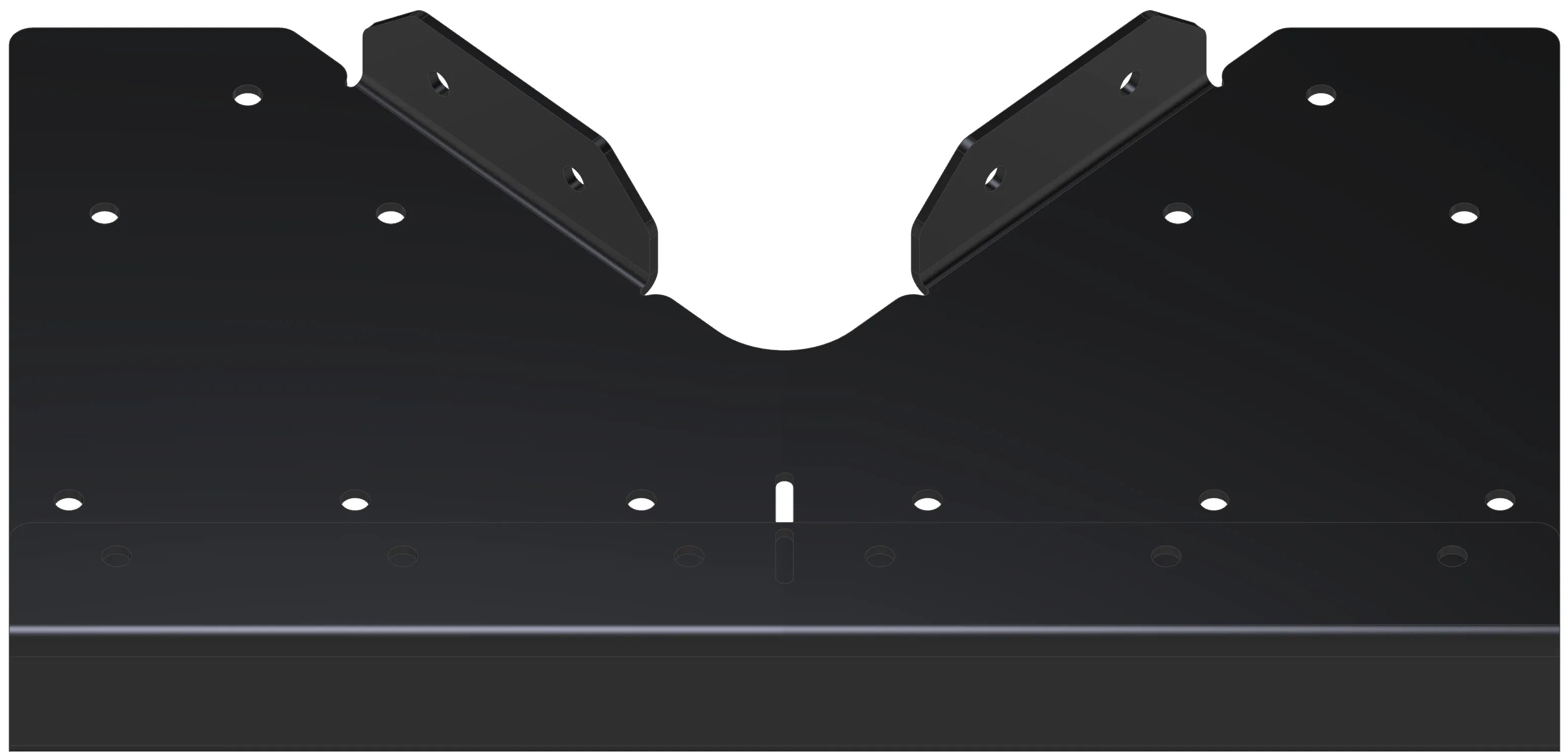

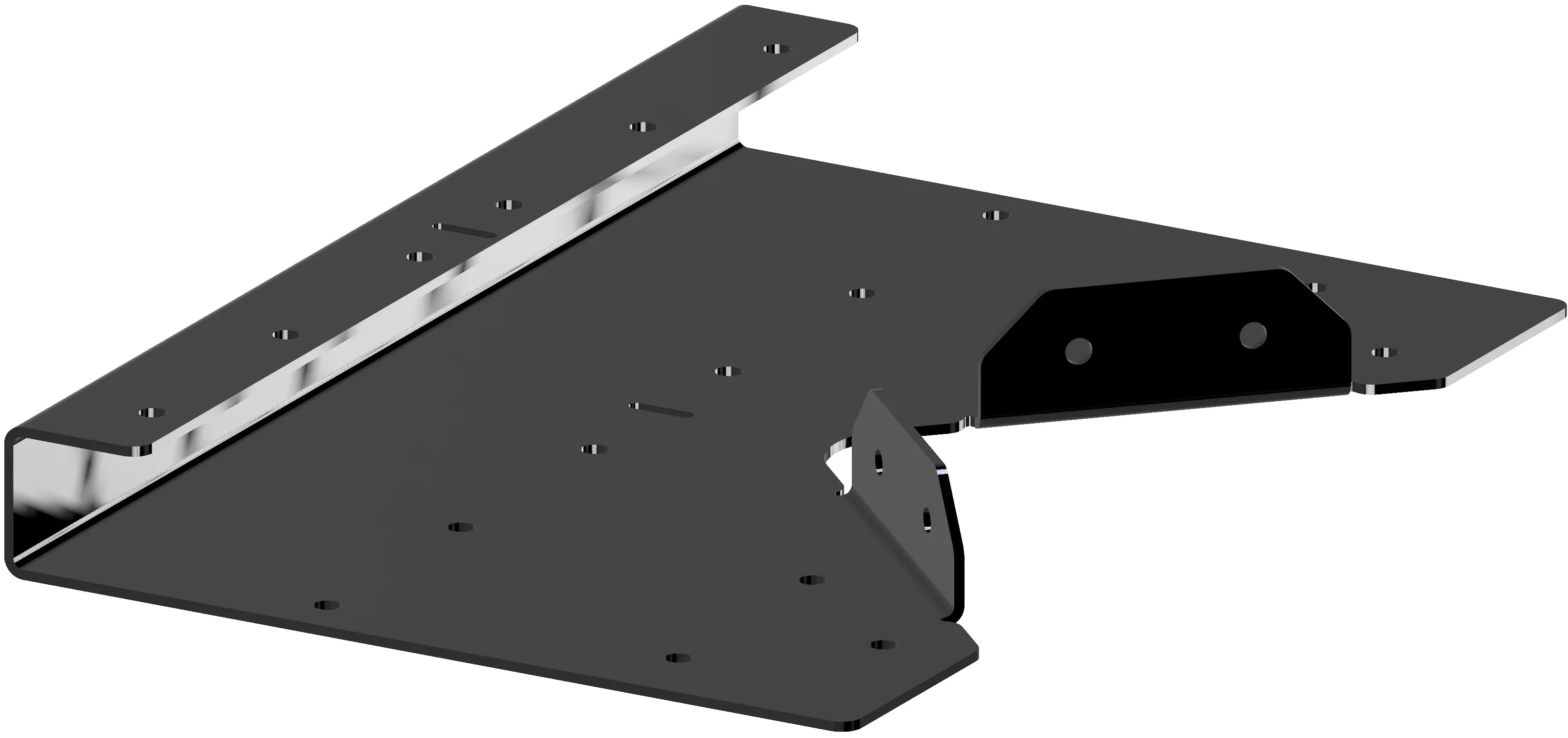

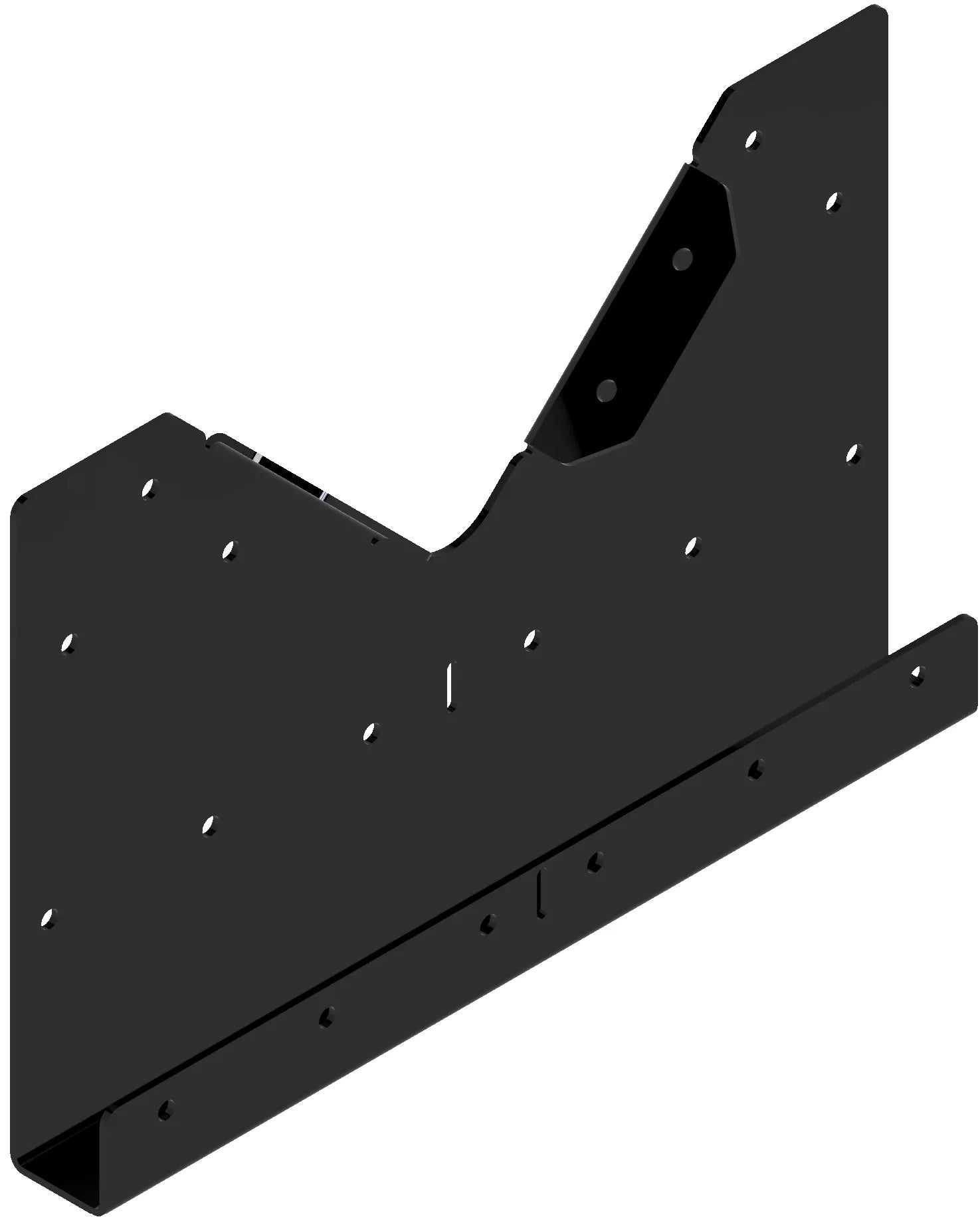

This bracket has an upward facing open U-channel to receive two ends of the horizontal beams.
This bracket includes a joint inspection window which allows precise alignment of the two beam members at the center of this bracket.

Each horizontal beam is secured to the bracket's U-channel using six (6) 1/4" x 1-1/4" lag screws.
The angled 45 degree brace members are secured to this bracket using three (3) 1/4" x 1-1/4" lag screws, each.
Included are eighteen (18) 1/4" x 1-1/4"  lag screws to complete the job.
This bracket is constructed from 1/8" thick high strength steel.
This bracket is laser cut and formed and coated with durable black powder paint.
This bracket may be spray painted over with any desired exterior-grade paint color.

This Diy Truss Joint Bracket is listed at RioOutdoors.com and at Etsy.com/RioOutdoors.
