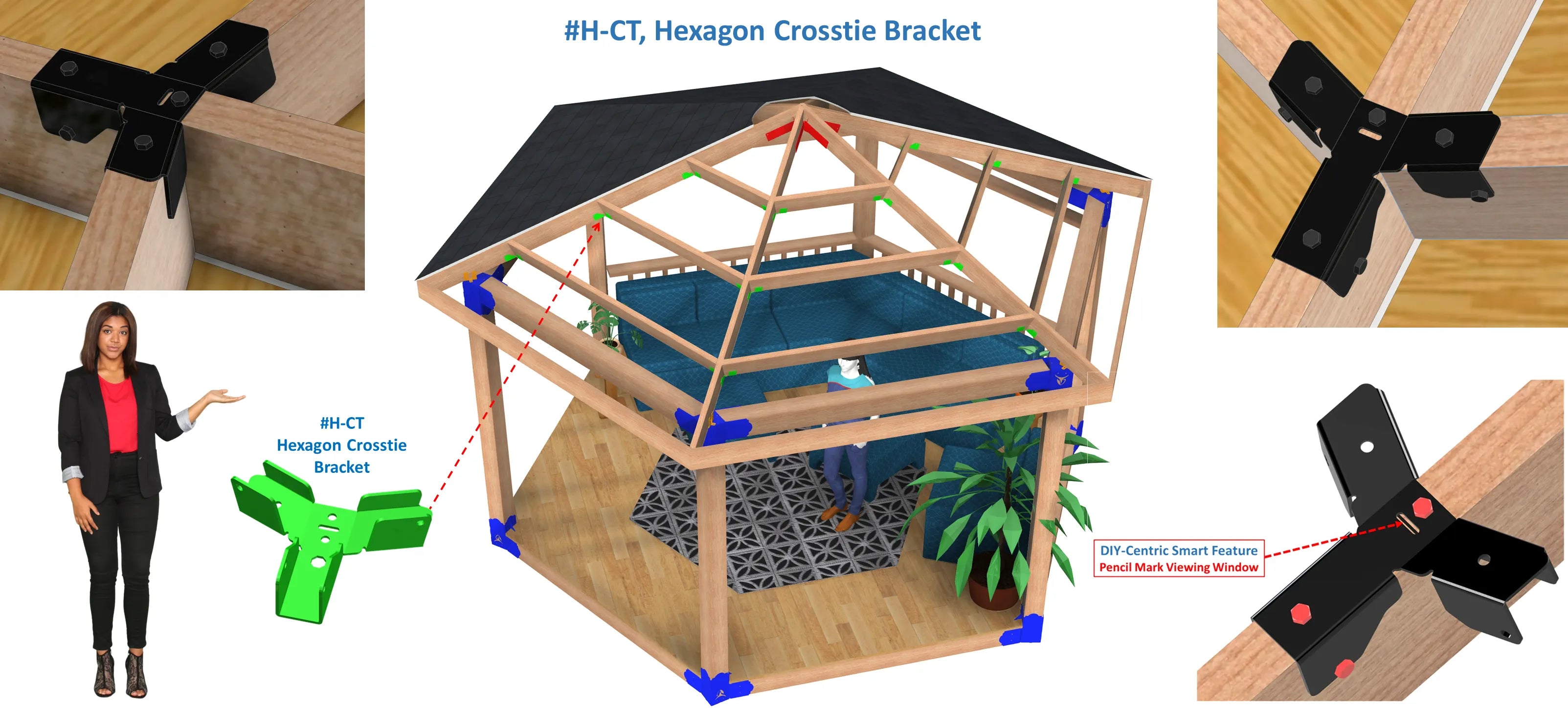

Hexagon CrossTie Bracket

Hexagon CrossTie Beam Bracket

Elevate your DIY game with our Hexagon CrossTie Bracket. Crafted with high-quality materials, this bracket is designed to provide sturdy support while exuding modern charm. Perfect for adding a sleek and architectural accent to your hexagon roof projects, this versatile piece will inspire your creativity. Create a one-of-a-kind look that showcases your craftsmanship and attention to detail. Make a statement with our Hexagon CrossTie Bracket and transform your space with ease.

This is a novel bracket designed to connect two roof deck support cross tie beams to the main hexagon rafters in a 4-12 to 5-12 pitched roof.

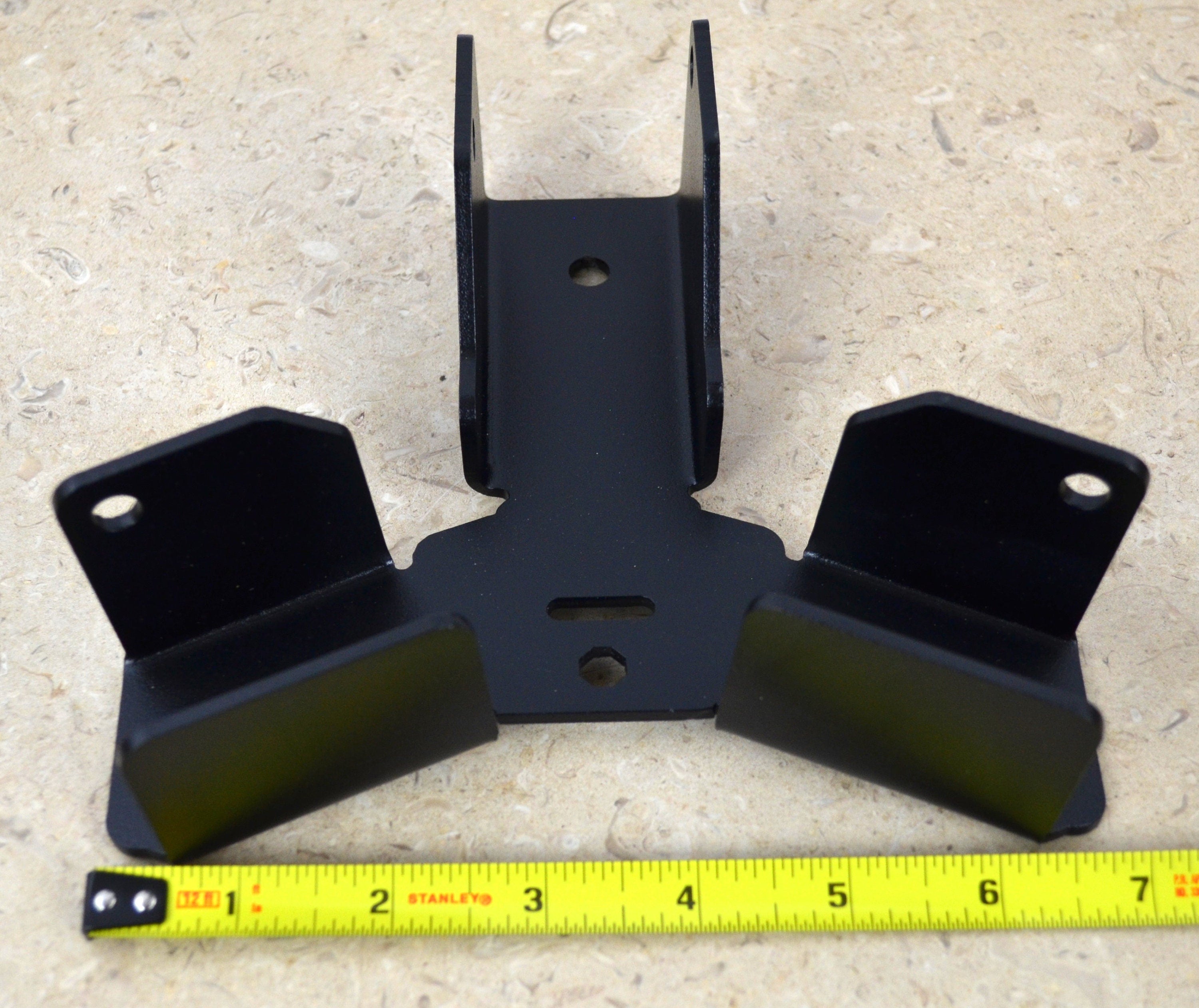

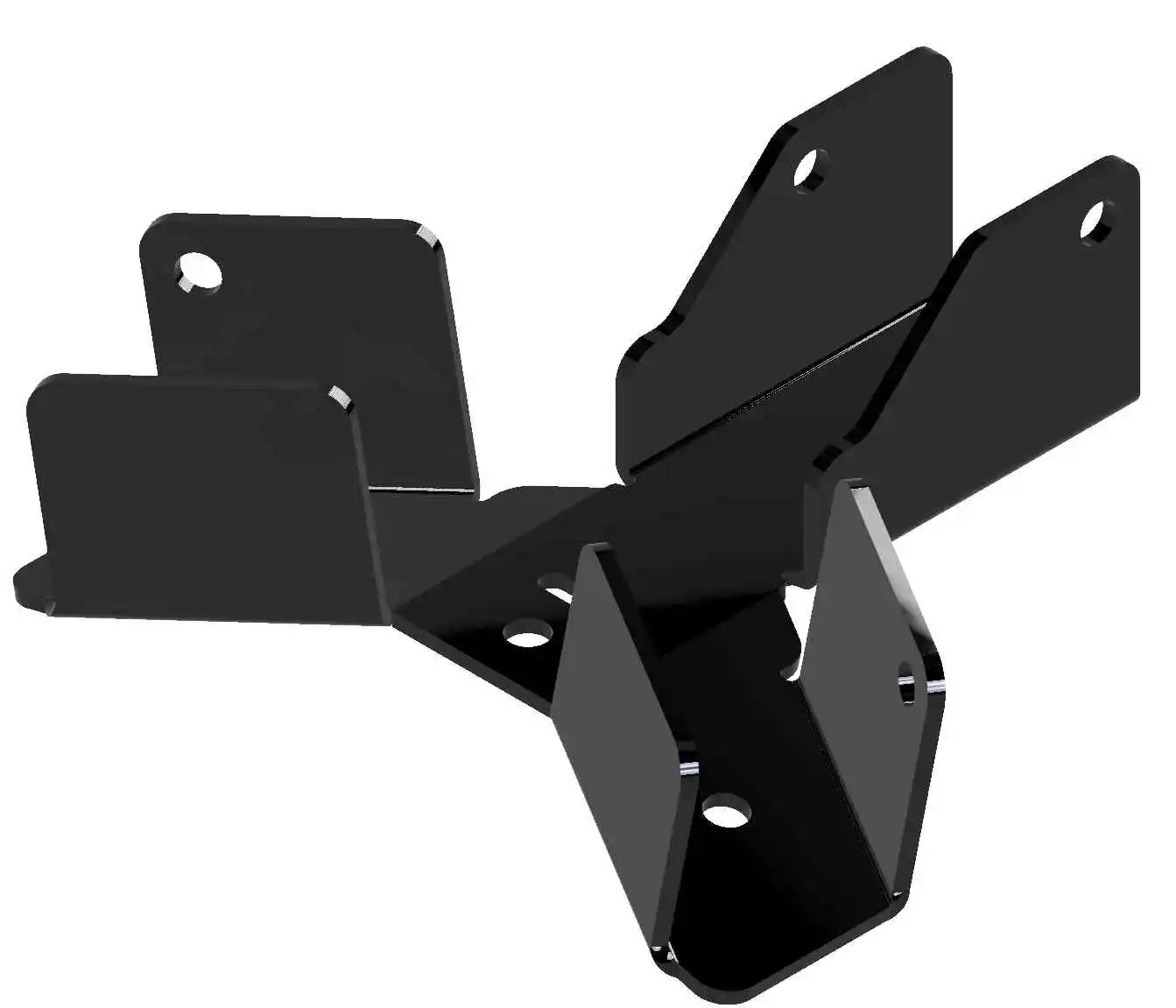

The Hexagon CrossTie Bracket is designed to attach to the bottom and side surfaces of the main hexagon rafters and provide two cross tie receiver U-channels at precise angles.
This part is common between full hexagon gazebo solid roofs and partial hexagon gazebo roofs.

This bracket works in tandem with the Hexagon Spider Bracket, Post Top Rafter Tie Bracket, and the Hexagon Roof Skirt Bracket. These parts, together, simplify building the architectural hexagon roof structure.

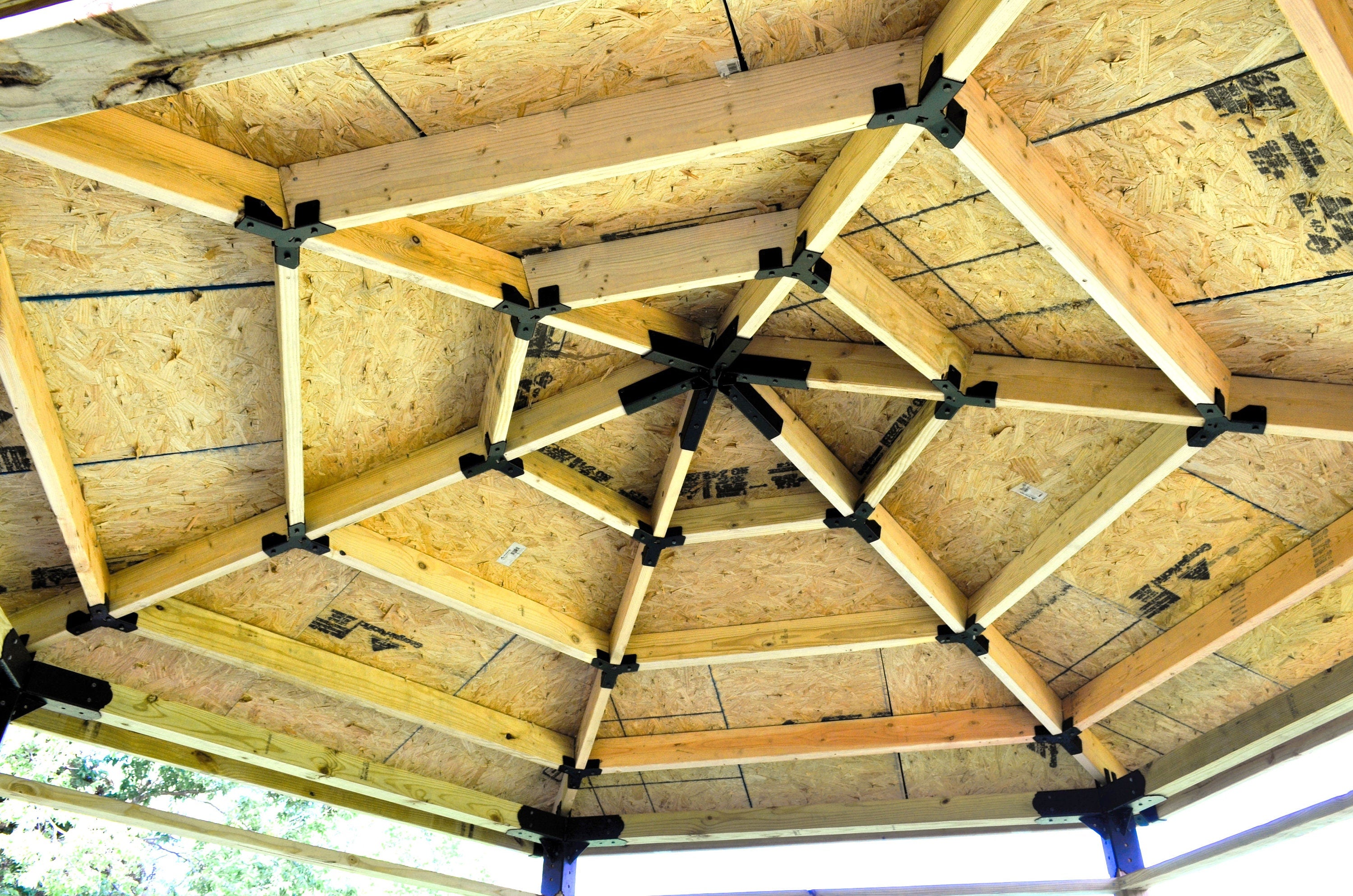

This bracket simplifies addition of the cross tie beams at perfect angles to form decorative deck support structures in a perfect hexagon shape.
DIY-Centric Smart Designs have been injected in these brackets providing precise angular alignment and precise positioning using the “Pencil Mark Viewing Window”.

The high strength design of this bracket holds the cross tie support beams securely.

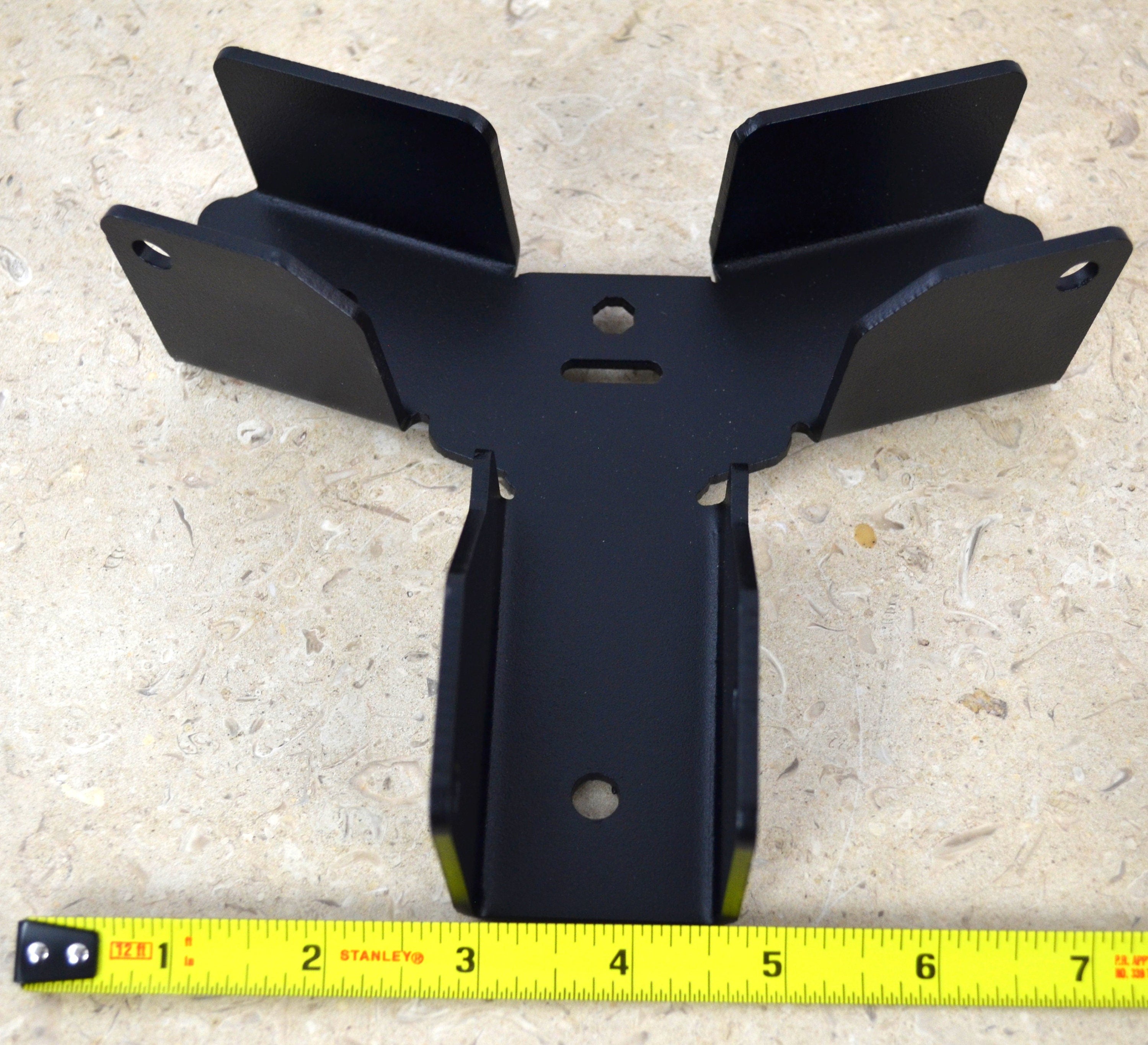

The Hexagon CrossTie Bracket's arms have upward facing open U-channels to easily receive 2x6 or 2x8 cross tie beams.
The crosstie bracket attaches to the rafter's bottom and side surfaces using four (4) 1/4" x 1-1/2" lag screws.
Each crosstie beam is secured to the U-channel with two (2) 1/4" x 1-1/2" lag screws.

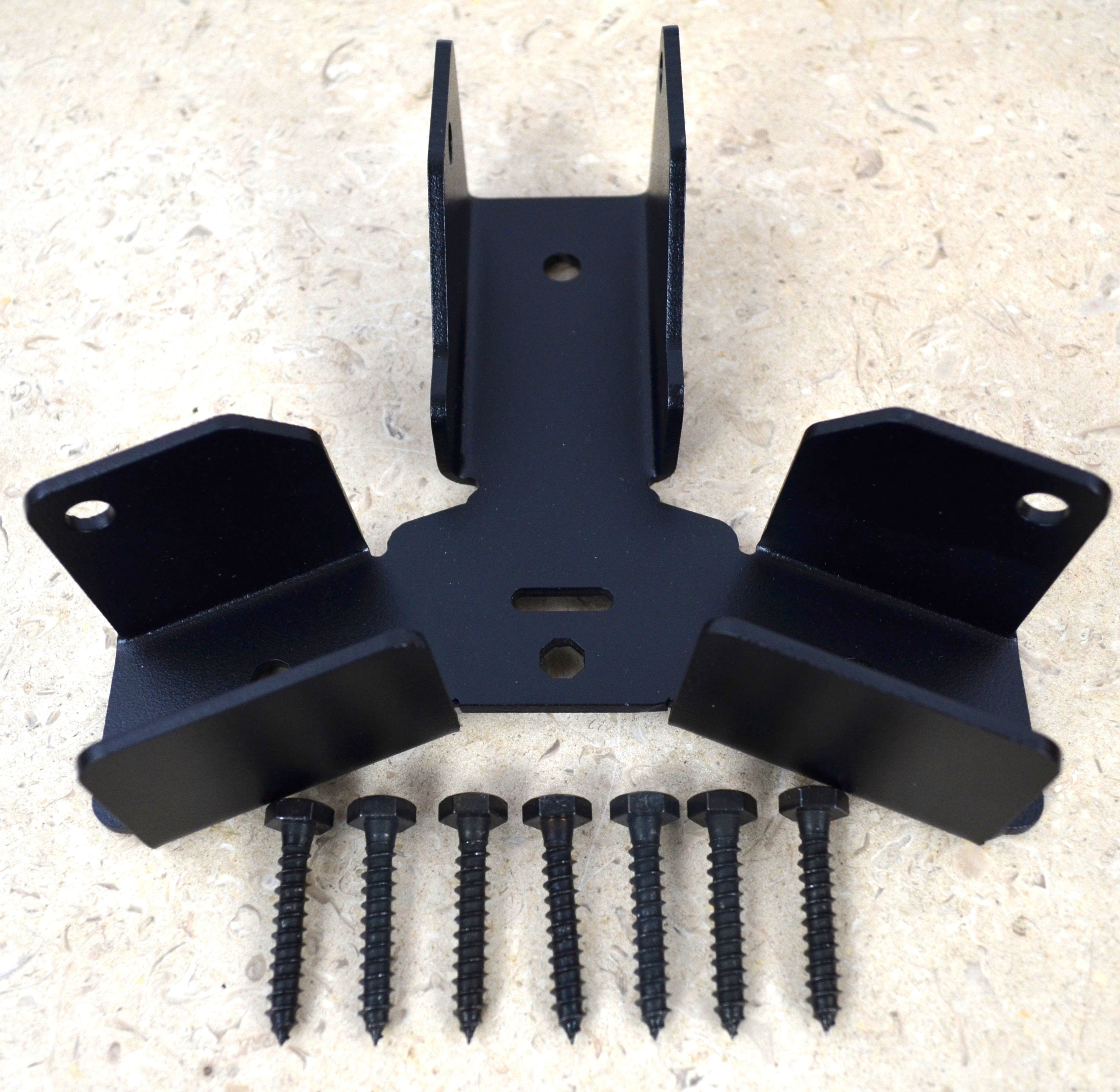

Included are eight (8) 1/4" x 1-1/2"  lag screws to complete the job.

Don't forget that you will have to drive 10D X 3" nails at an angle to secure the top of the cross tie beams to the rafter. These 10D nails are not included.

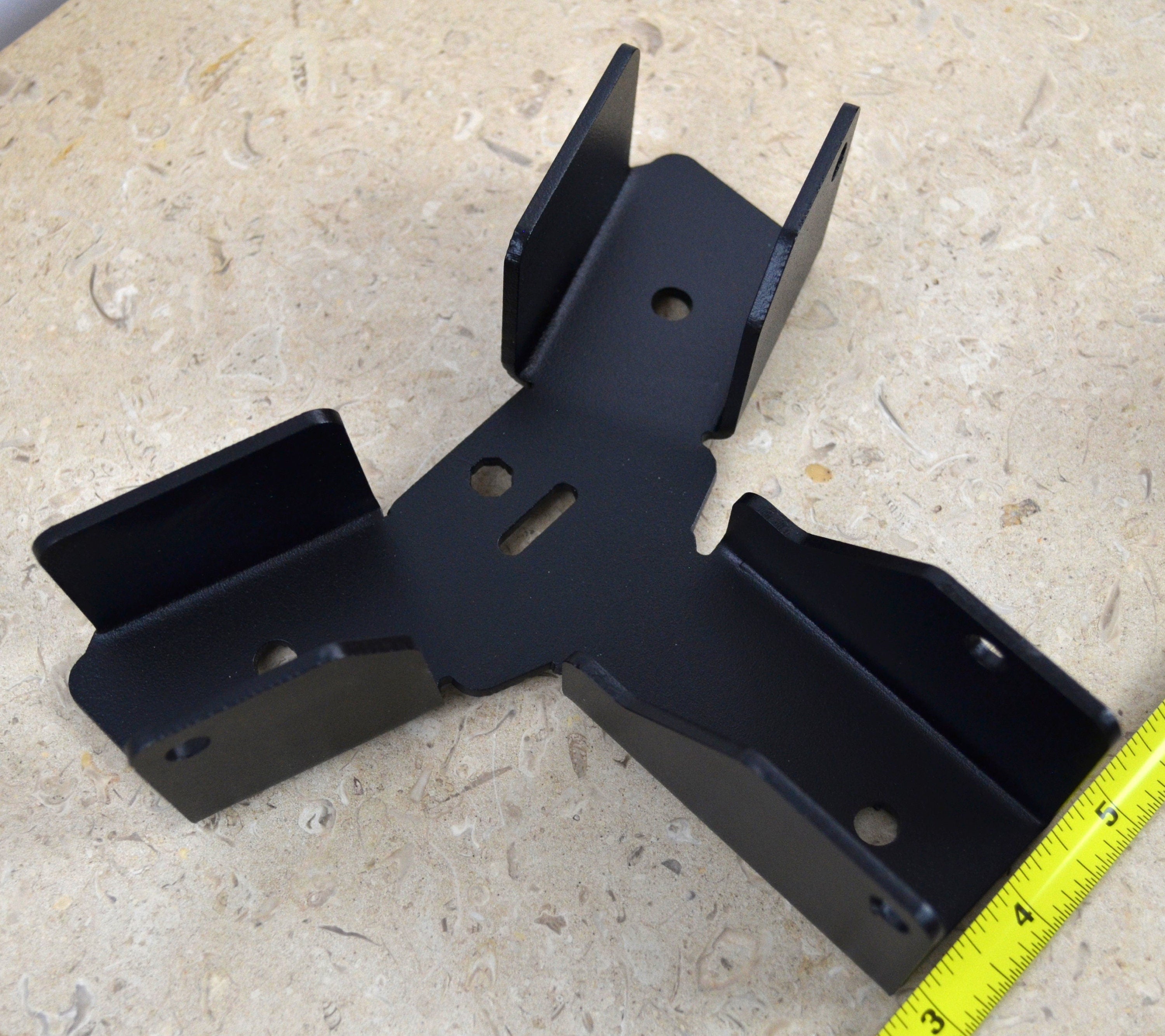

This bracket is constructed from 1/8" thick high strength steel, laser cut, formed, and coated with durable black powder paint.
This bracket may be spray painted over with any desired exterior-grade paint color.

This Hexagon CrossTie Bracket is also lited at RioOutdoors.com and at Etsy.com/RioOutdoors.
