DIY Heavy Duty Iron 8-Way Octagon Spider Bracket

DIY Heavy Duty Iron 8-Way Octagon Spider Bracket

Introducing our DIY Heavy Duty Iron 8-Way Octagon Spider Bracket, perfect for your next octagon gazebo project! Constructed from high-quality iron, this bracket is strong and durable, capable of holding heavy snowloads with ease. The unique octagon design adds a touch of style to the octagon roof structure. Let your creativity run wild!

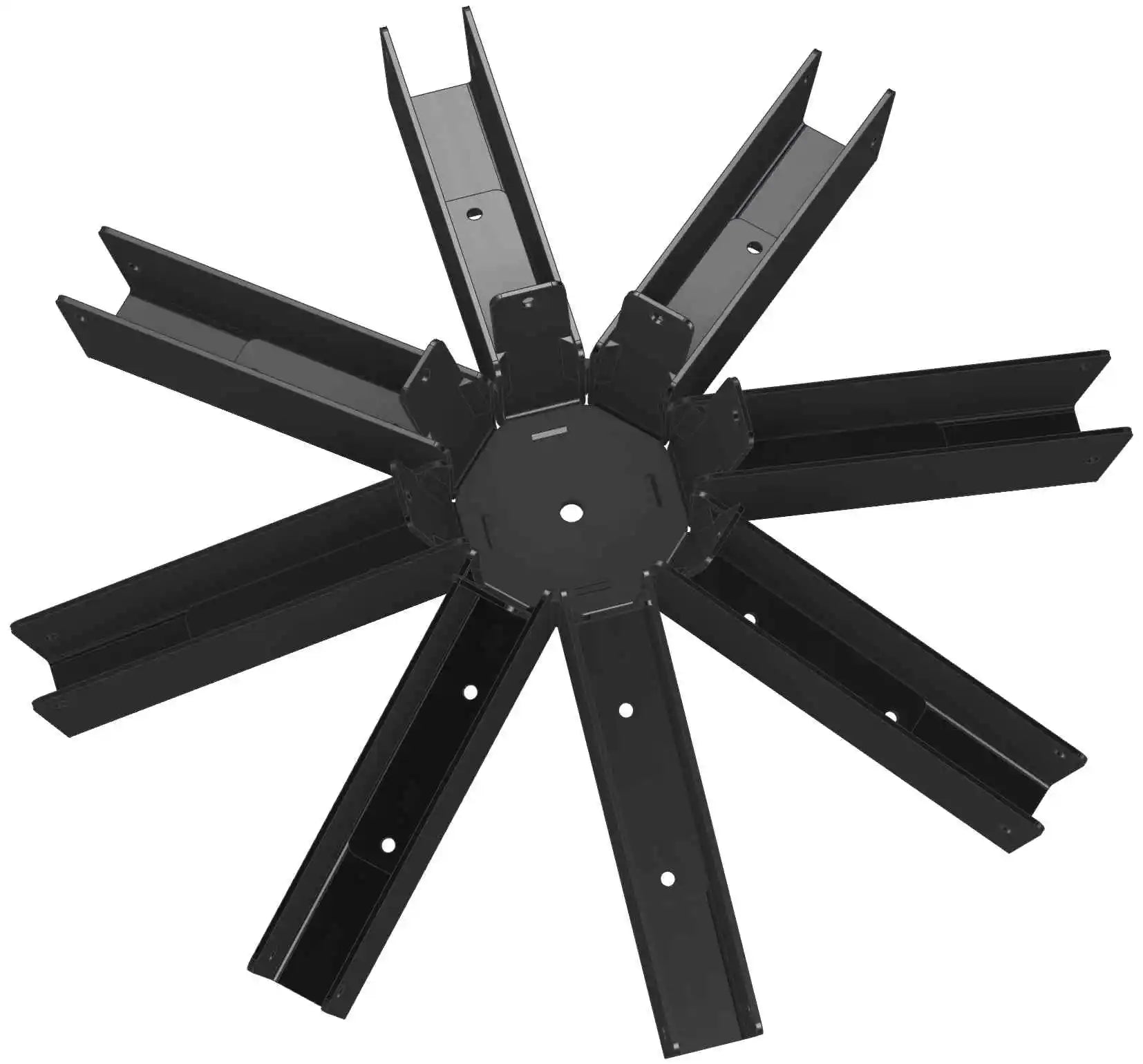

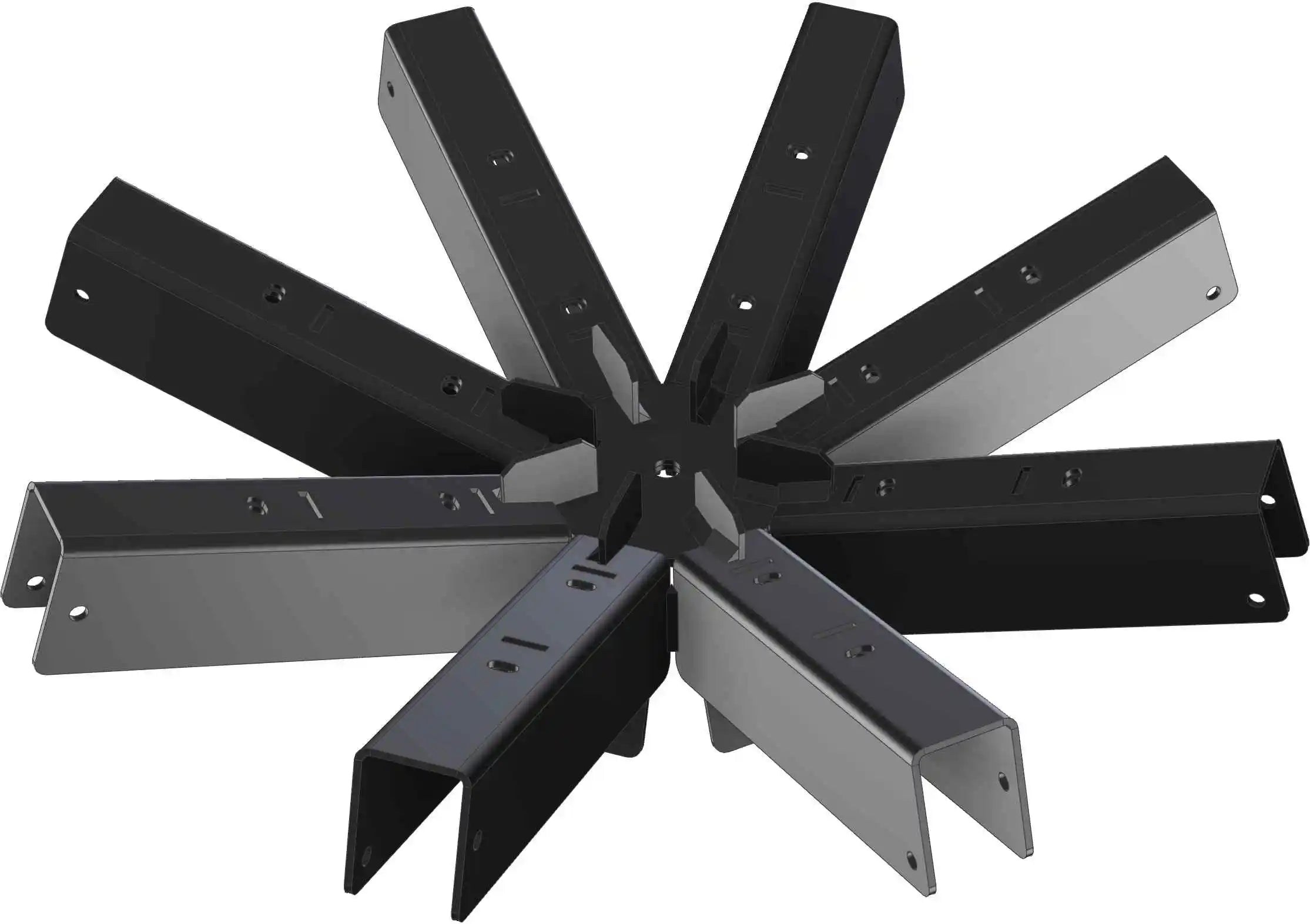

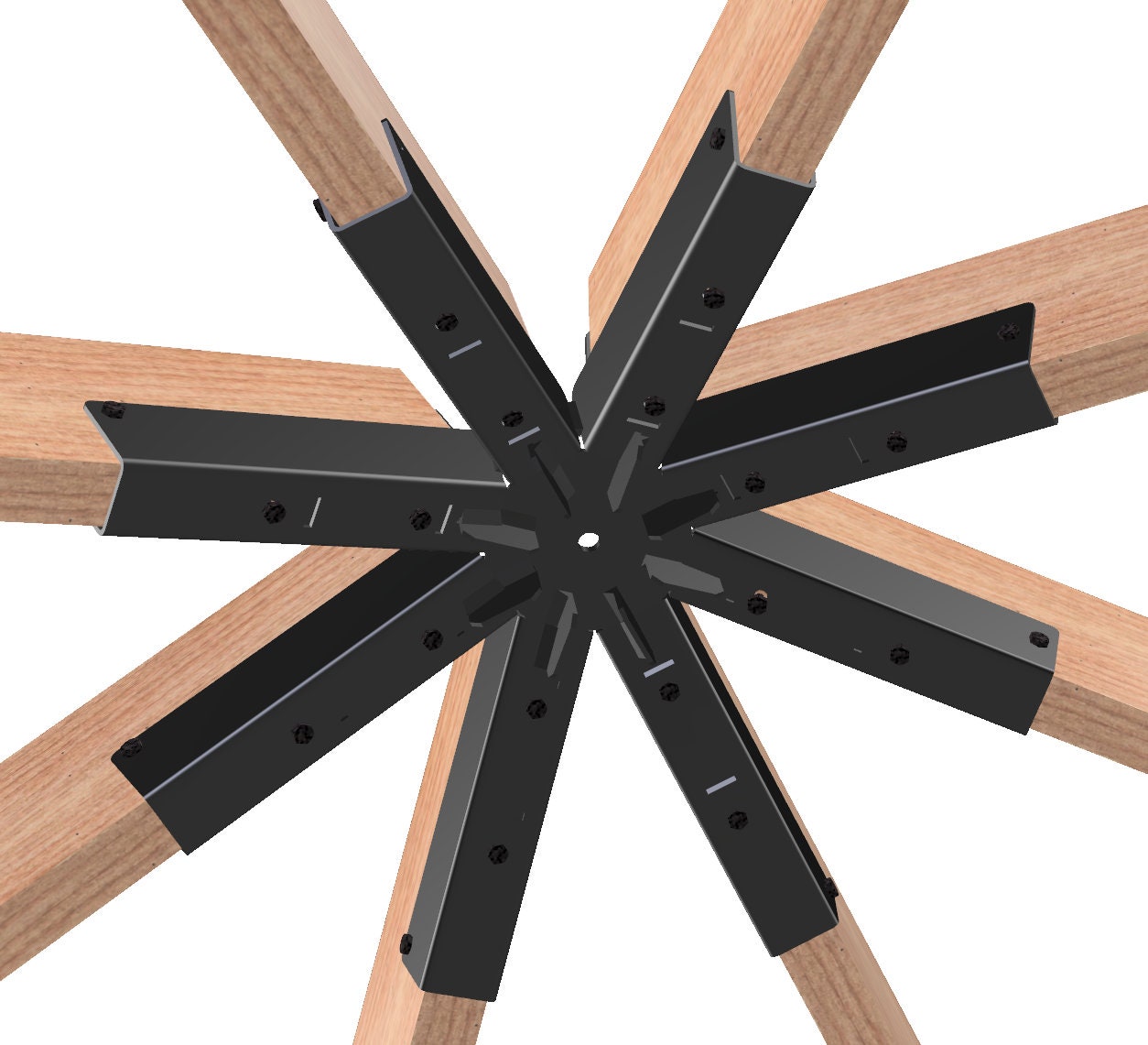

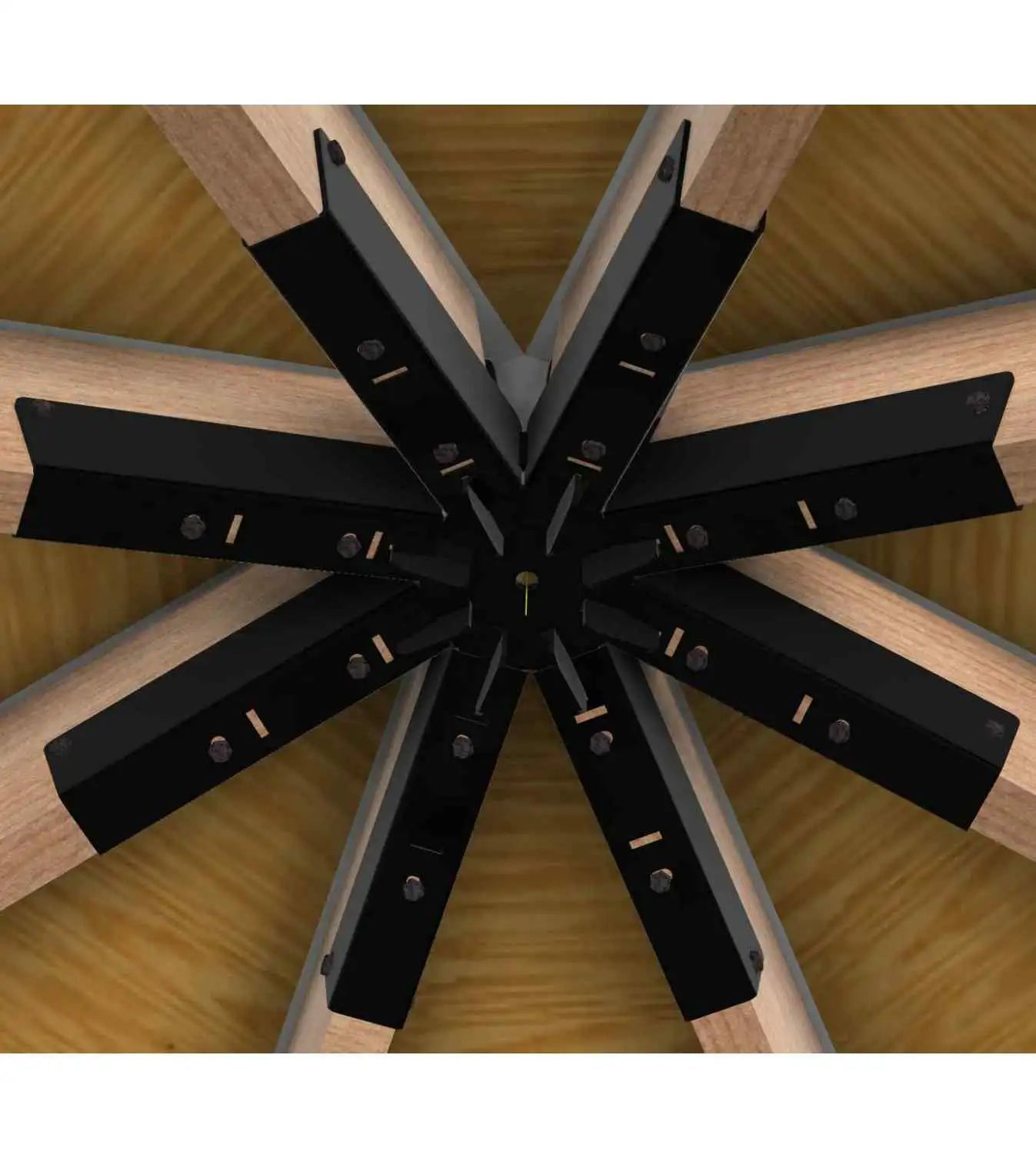

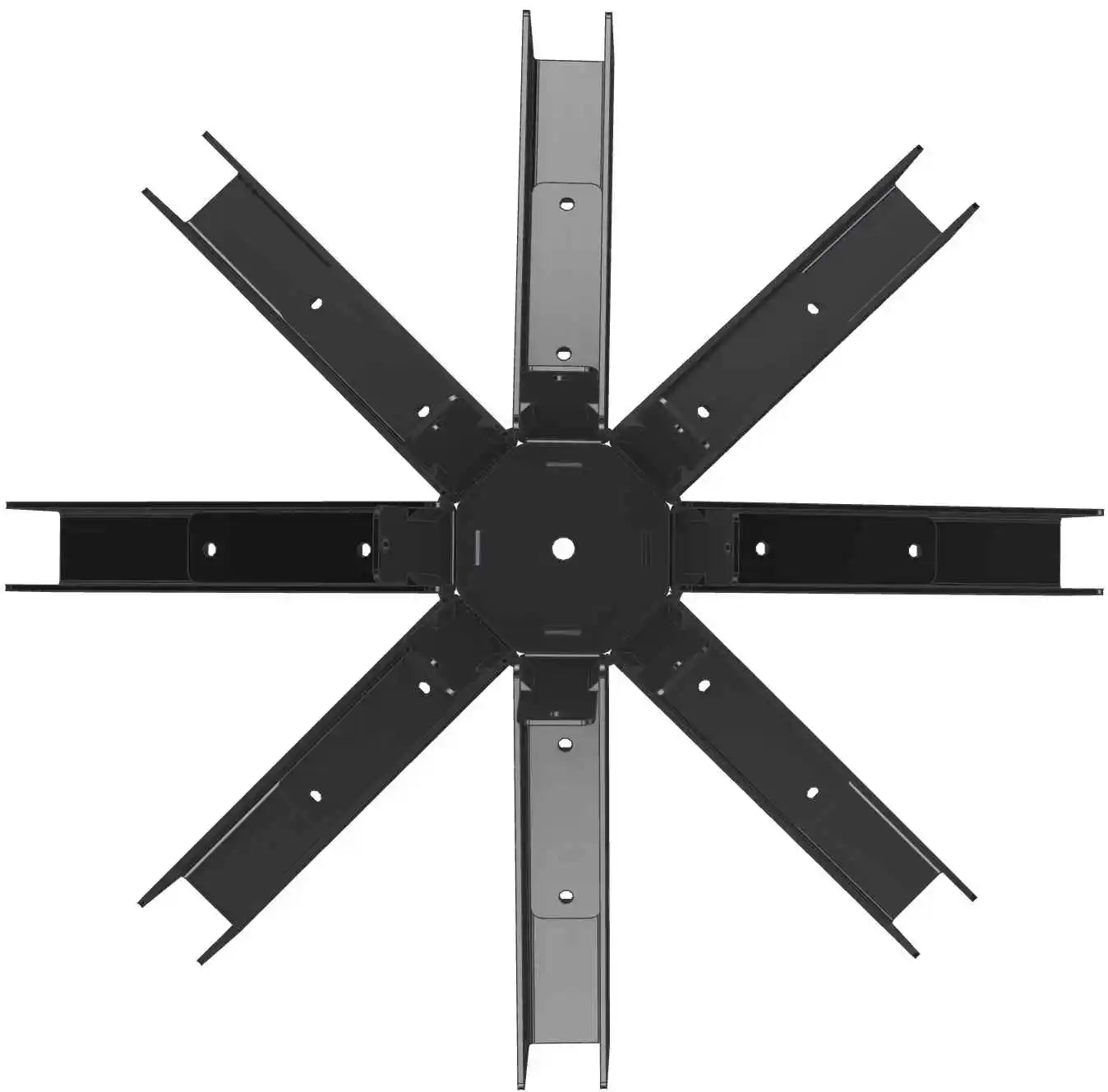

Super Heavy Duty Octagon 8-way spider bracket creates a perfect 8-way rafters joints at the peak of the octagon roof. Allows universal size octagon roof ranging from 8 feet wide to 24 feet wide.

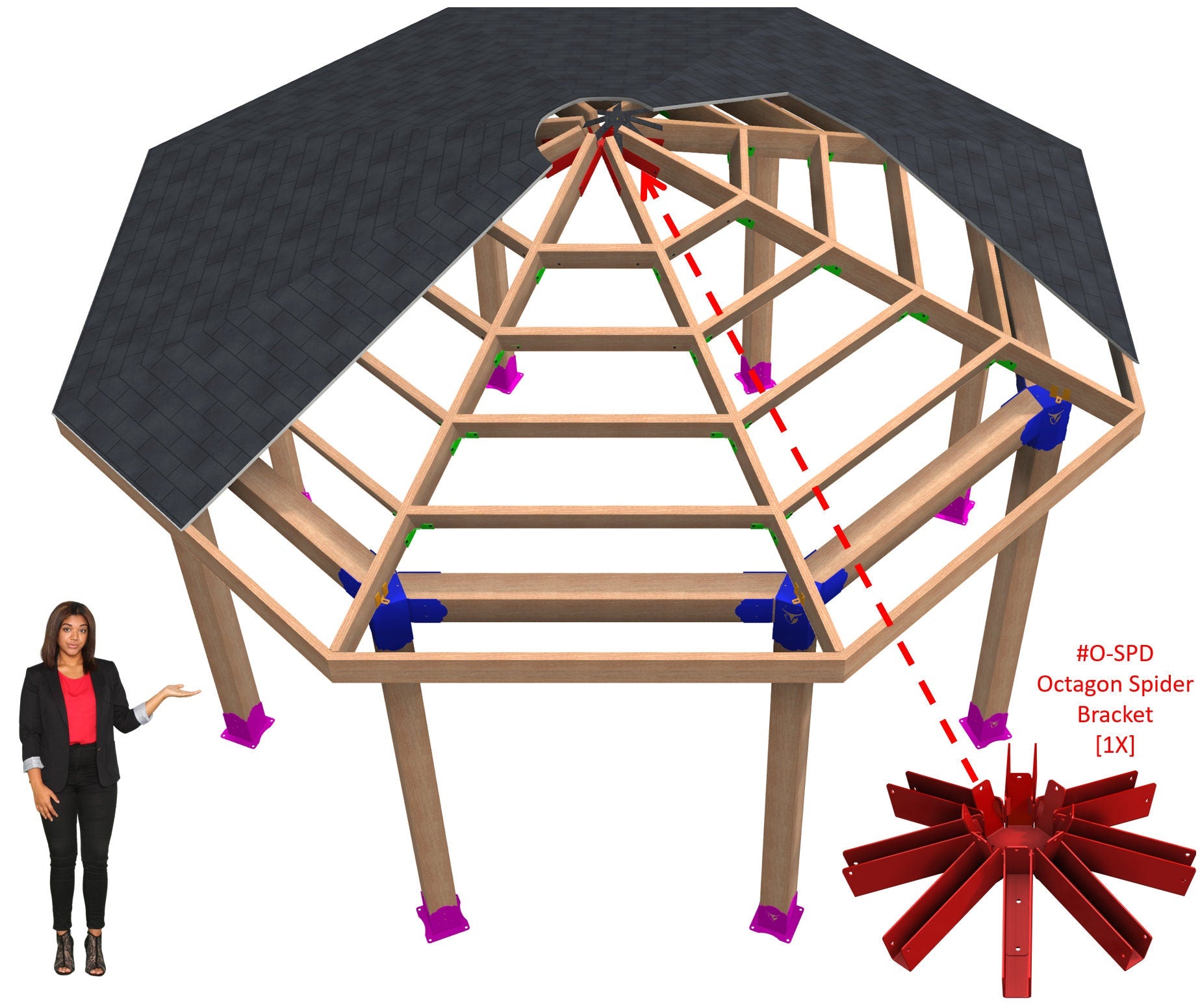

When used together with the octagon crosstie bracket, post top rafter tie bracket, and octagon roof skirt bracket, you can build a super-strong architectural octagon solid roof.

This bracket is used to build our 4x4, Surface Mounted, Full Octagon Gazebo, 4x4, Floating Deck, Full Octagon Gazebo, 6x6, Surface Mounted, Full Octagon Gazebo, and 6x6, Floating Deck, Full Octagon Gazebo.

This octagon 8-way spider bracket yields a super-strong 4-12 pitch roof structure which can withstand snow loads exceeding 165 lbs./sq. ft.

This strong roofed structure will be a permanent structure for any geographic location.
The Octagon 8-way steel brackets eliminates all wood joinery skills and work making it ideal for all DIY enthusiasts and contractors.

This bracket is made of double layered 1/8" thick steel, welded structure coated with powder paint for permanent rust proofing and durability.

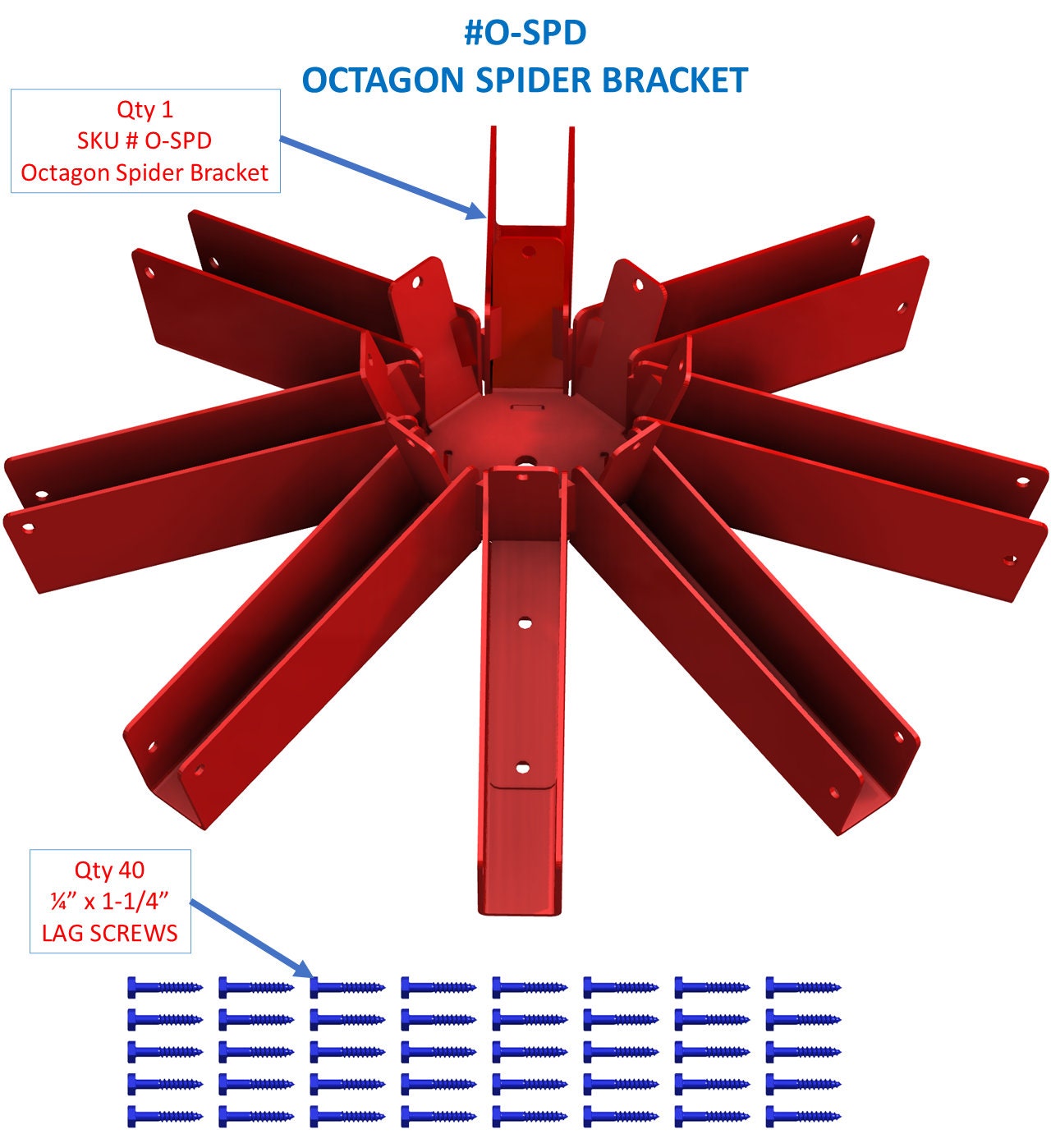

The octagon spider bracket package includes:
Qty 1, of Roof Peak Octagon 8-way Spider Bracket.
Qty 40, of 1/4" x 1-1/2" Lag Screws.

• Roof rafters' pitch angle is fixed at 21.5-degrees, close to 4-12 pitch.
• Roof rafters and cross-tie beam lumber to be kiln dried lumber (pine, cedar, redwood, etc.).
• Roof rafters’ size to be 2x6 for octagon widths up to 14 feet and 2x8 for widths more than 14 feet.
• Cross-tie support beams are required every 24" between adjacent rafters to support roof deck plywood/OSB boards and to support snowloads.

This DIY Heavy Duty Iron Octagon 8-Way Spider Bracket is also available at RioOutdoors.com and at Etsy.com/RioOutdoors.
